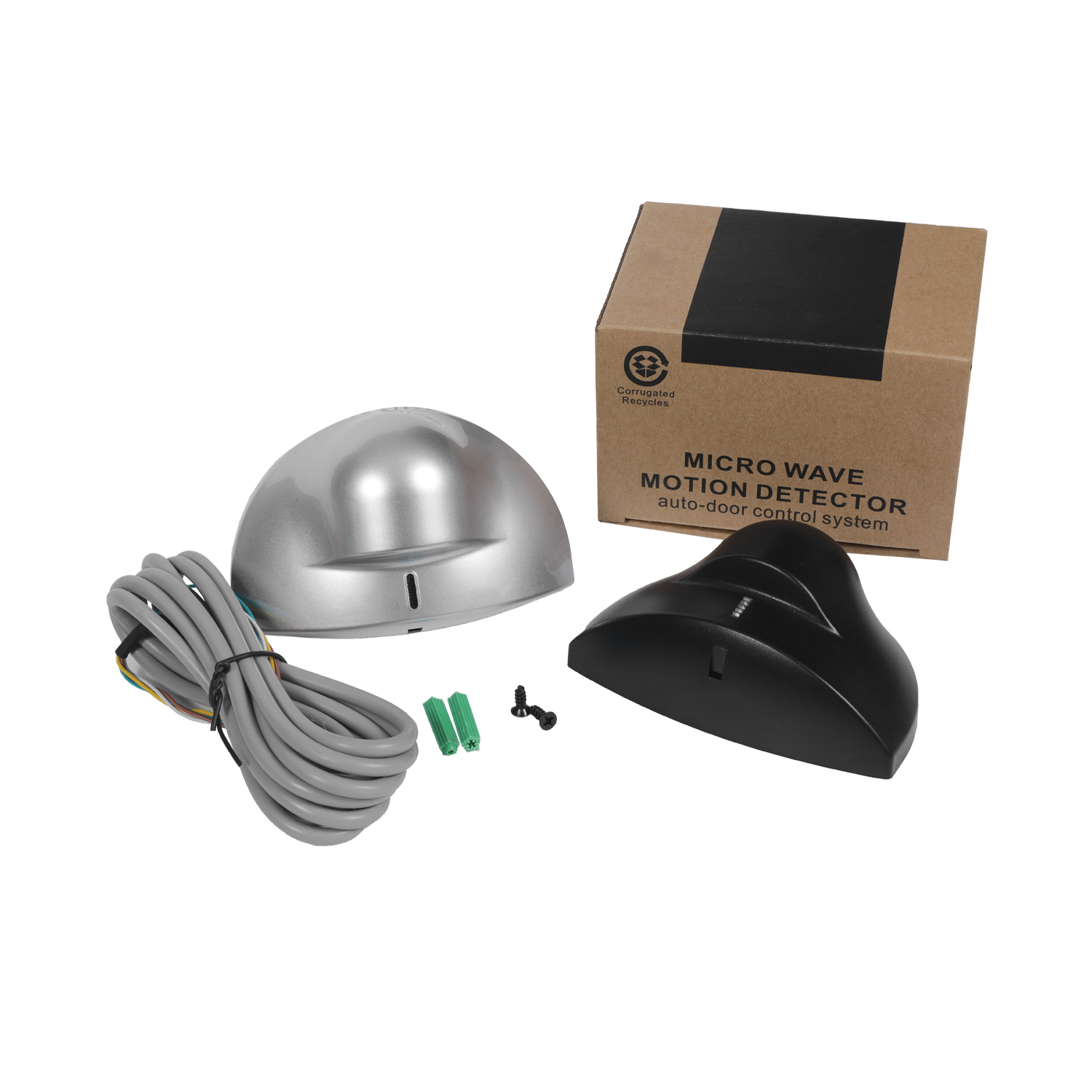

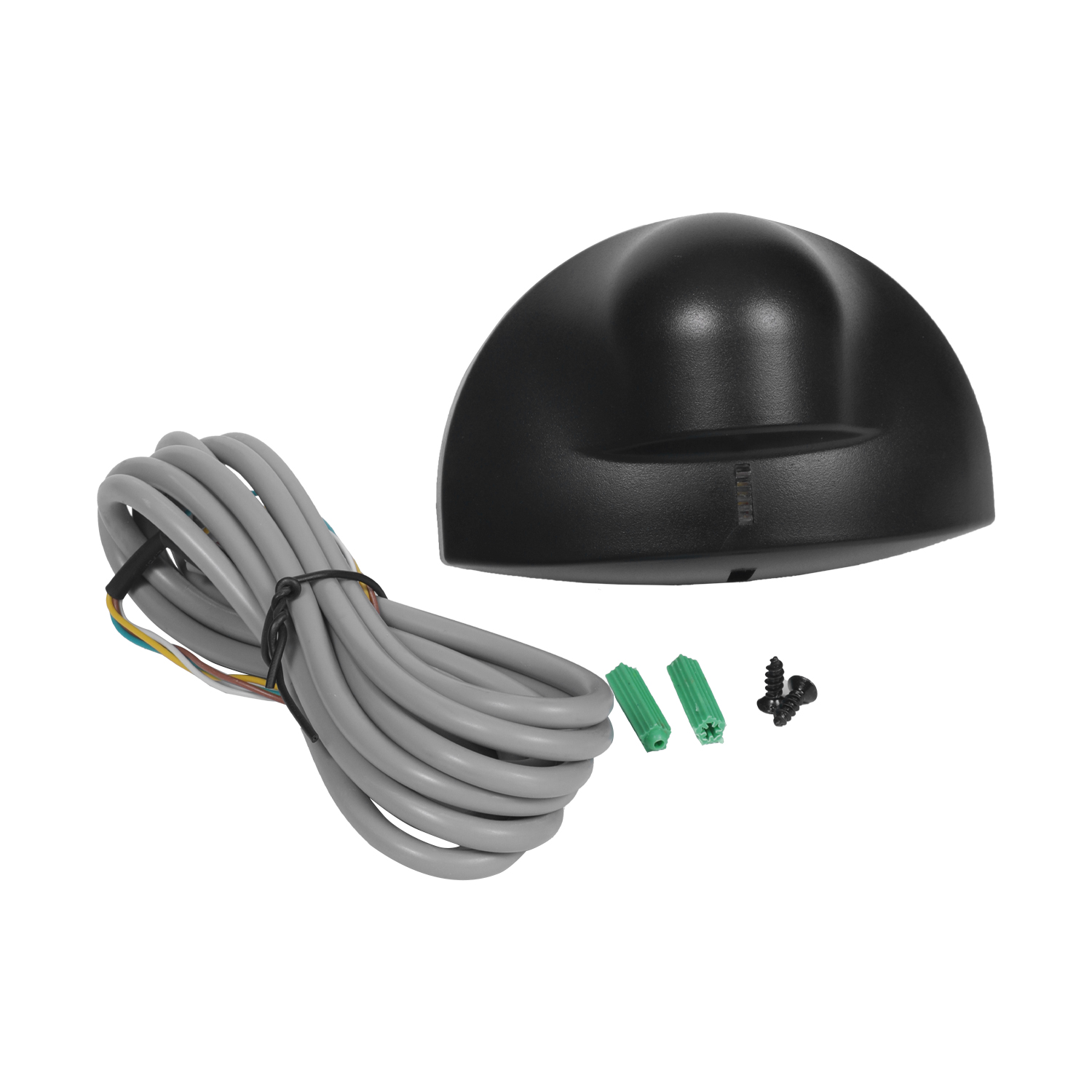

Features
This product is a direction-detecting microwave sensor developed based on 24G integrated chips, which can detect approaching signals and ignore away-away signals to shield unnecessary door opening actions. It can also be switched to bi-directional detection mode. Compared with the microwave sensor of the module antenna on the market, it has extremely obvious advantages as follows:1.Object moving direction recognition: it can accurately judge whether a person or object is approaching or moving away. 2.Uper shock resistance: the algorithm can eliminate the reciprocating vibration in a certain range. 3.Excellent product consistency: MMIC monolithic microwave integrated integrated antenna ensures that the receiving sensitivity of each product is extremely close.
Technical Parameters
| Realization of technology | Microwave and Microwave Processors |
| Transmitting frequency | 24.125GHz |
| Maximum installation height | Below 4.5m |
| Detection mode | Unidirectional movement |
| Minimum detection speed | 5cm/s(Along the sensor vertical axis) |
| Range of tests | 3.2m（Wide）, 45°（Angle） |
| Hold time | 0.5 s |
| Wire length | 2.2m |
| Temperature range | -20℃ ~ +55℃ |
| Relay output (No initial potential) | COM , NO |
| Housing material | ABS plastic |
| Power supply voltage | 12-30VAC/DC ± 10% (50~60Hz) |
| Dimensions | 120mm (Width) X80mm (Height) X52mm (Height) |
| Mounting inclination | 0~90°(Vertical),-30°~30°(Horizontal) |
Installation Wiring
(1) Install the bottom plate.
Stick the installation template to the appropriate installation position, fix the rubber plug and open the cable hole according to the hole position of the template, uncover the outer cover and fix the bottom plate with two matching self-tapping screws.
(2) Insert the signal end into the readhead, and connect the other end to the power supply and control terminals of the automatic door.
1-2 (White and Yellow): Power input 12V-30VAC/DC
3-4 (Green and Brown): NO , COM
(3) Power on the sensor, adjust the angle of the panel antenna according to the actual needs of the scene, and adjust the sensitivity to the best effect .
(4) Close the outer cover and verify the debugging results.
Detection Orientation And Sensitive Adjustment

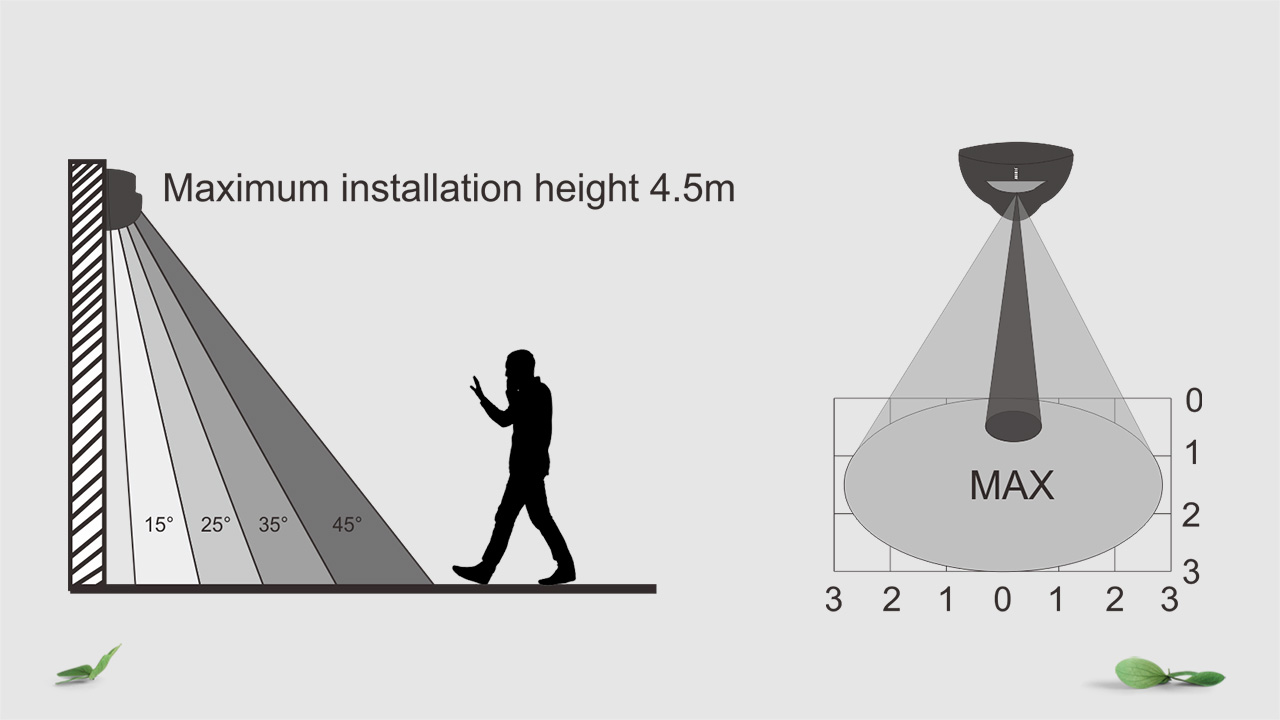

(1) Detection azimuth adjustment (panel antenna can be adjusted forward, backward, left and right).
Adjust the plane antenna angle to get different detection distances and different detection areas as shown in the figure below.

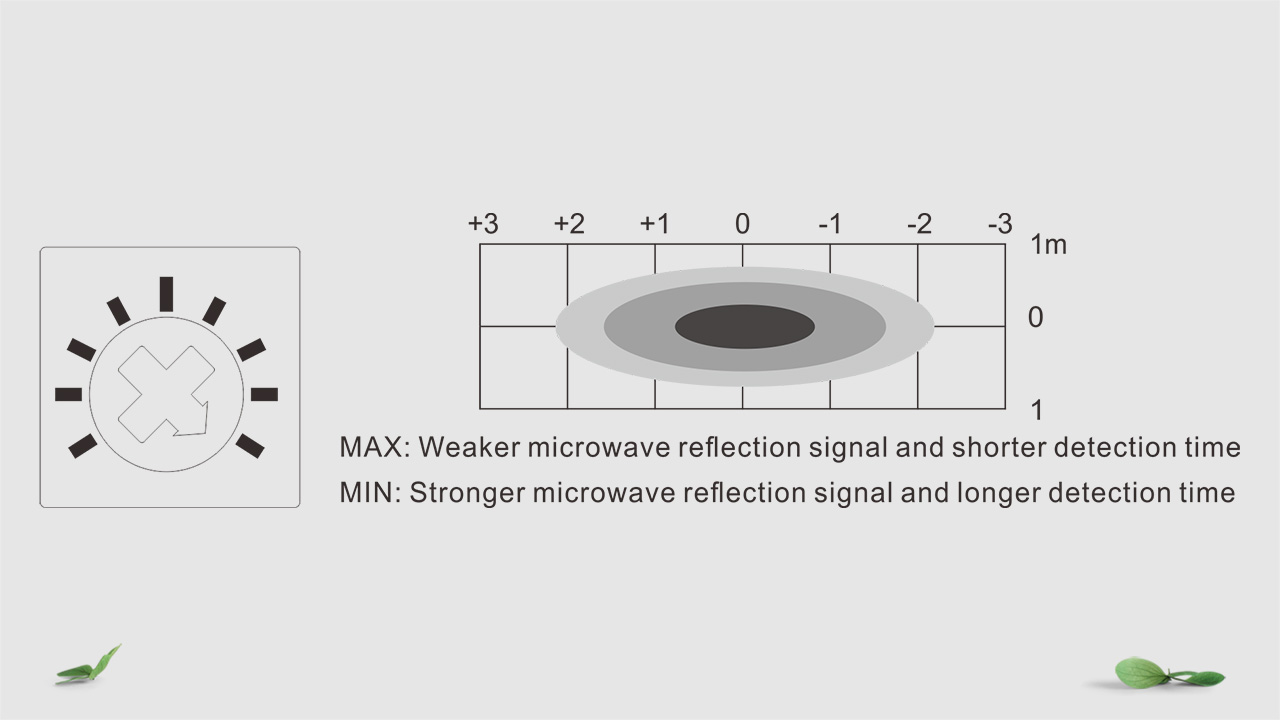

(2)Adjust the sensitivity
