Description Of The Product
JUTAI GateLink Encryption Home Remote Control Solution is a set of 128-bit non-linear encryption technology upgraded, and which based on the traditional automatic door fixed code remote control system, successfully to updating the new Copy-Proof Bluetooth Remote Control System, and JUTAI GateLink Production Line including the original manual remote control. Semi-manual remote control (automatic door opening + manual switch stop) and automatic remote control door opening system. The entire system cannot be copied, which greatly improves the safety of the home and solves the problem of easy copying and insecurity of traditional code matching technology. At the same time, it is expanded The automatic door opening technology completely liberates your hands and makes it easy to enter and exit your home.
Technical Parameters
| Power Supply | 12-24VDC |
| Standby Current | 8mA-20mA |
| Work Frequency | 433MHz |
| Modulation Type | ASK Modulation |
| Coding Type | Rolling Code |
| Receiving Sensitivity | ≤-110dBm |
| Relay Mold | Jog (default), interlock (optional), self-lock (optional) |
| Relay Load | 30VDC/1A 120VAC/0.5A |
| Working Temperature | -30℃~+70℃ |
| Add/Delete ID mode | Short Connect cable or by special remote transponder |
| Encryption Type | Encryption by USB Cable(special cable) |
| Storage Capacity | 32Pcs ID number,other large capacity needs to be customized |
Wiring Definition
| Function | Description |
| REL1 | Relay1 Output |
| COM1/2 | Relay 1/2 COM |
| REL2 | Relay2 Output |
| REL3 | Relay3 Output |
| COM3/4 | Relay 3/4 COM |
| REL4 | Relay4 Output |
| WG0 | Weigand output |
| WG1 | |
| OPEN | Manual Button |
| FUN | Add(Short Connect Vcc) or Delete ID(Short Connect GND) |
| GND | 12-24VDC |
| VCC |

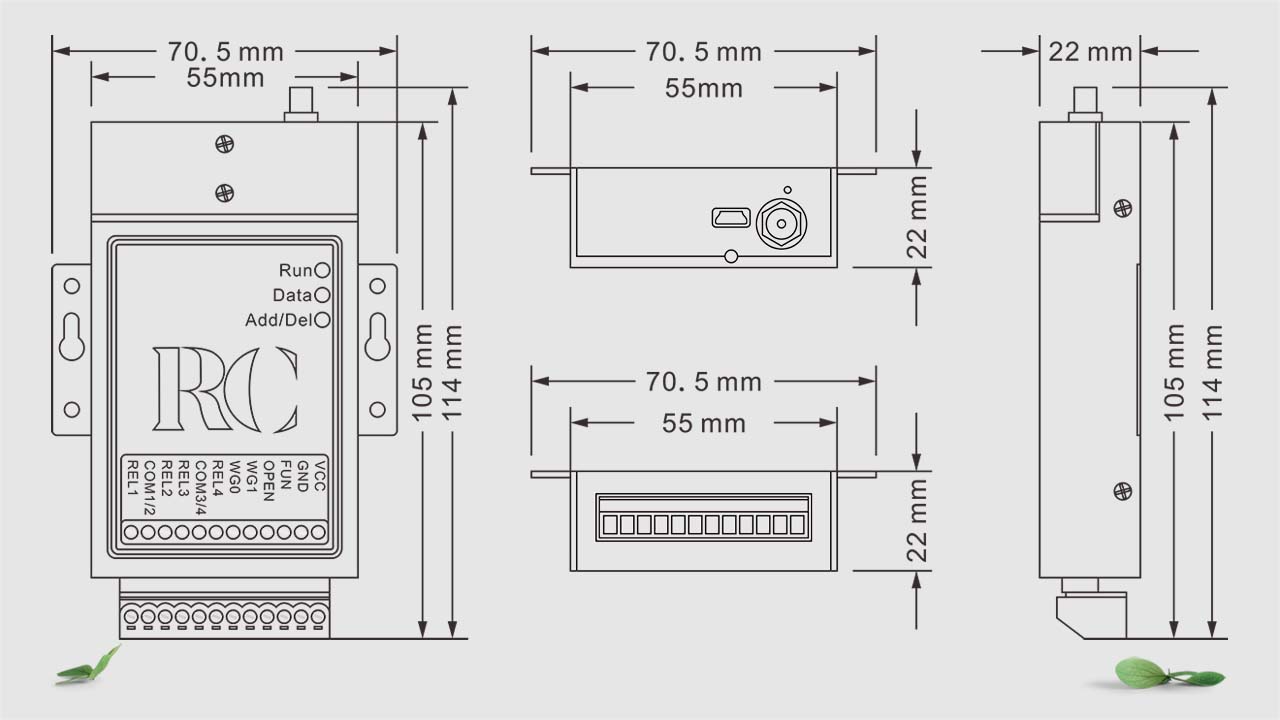

Size(mm)

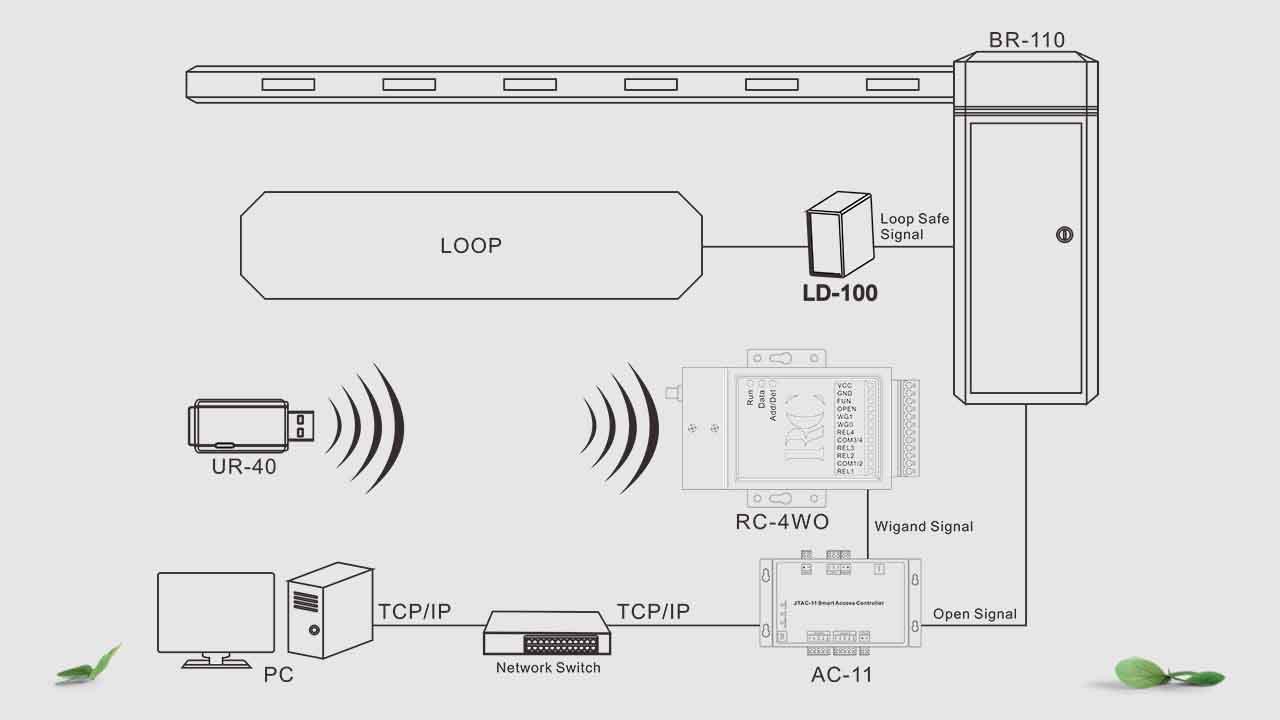

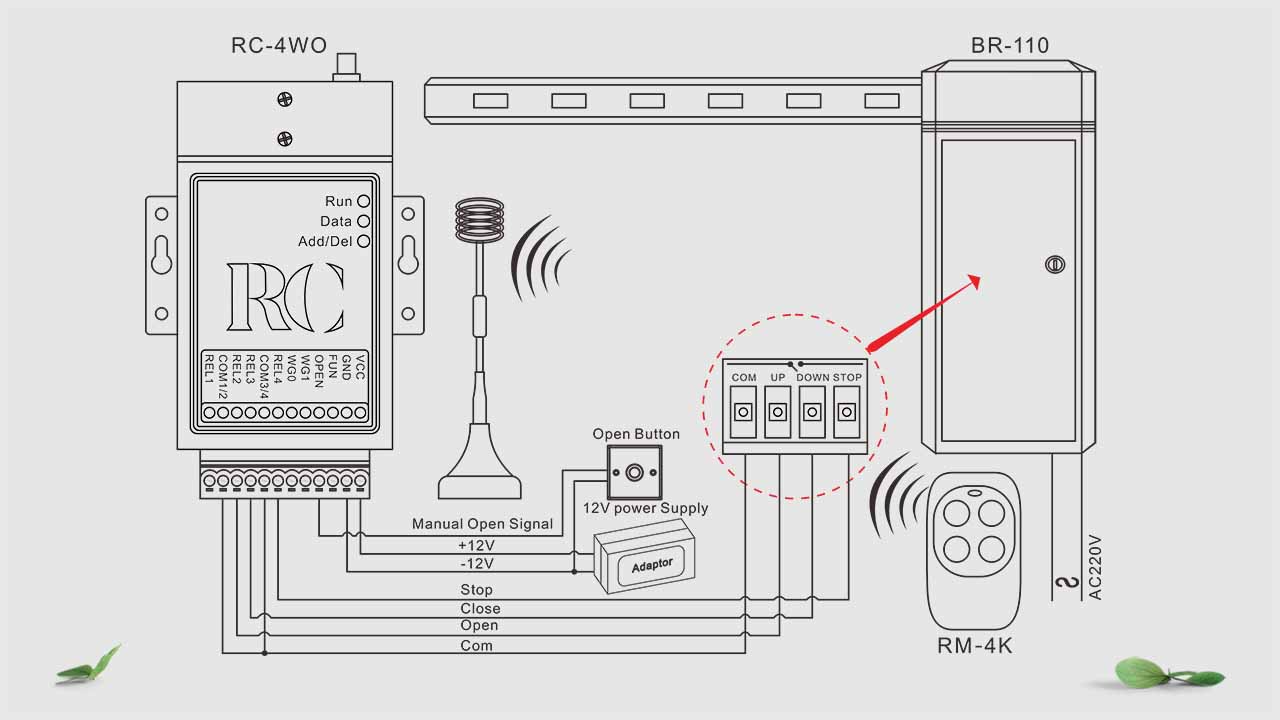

Barrier Gate Remote Connection

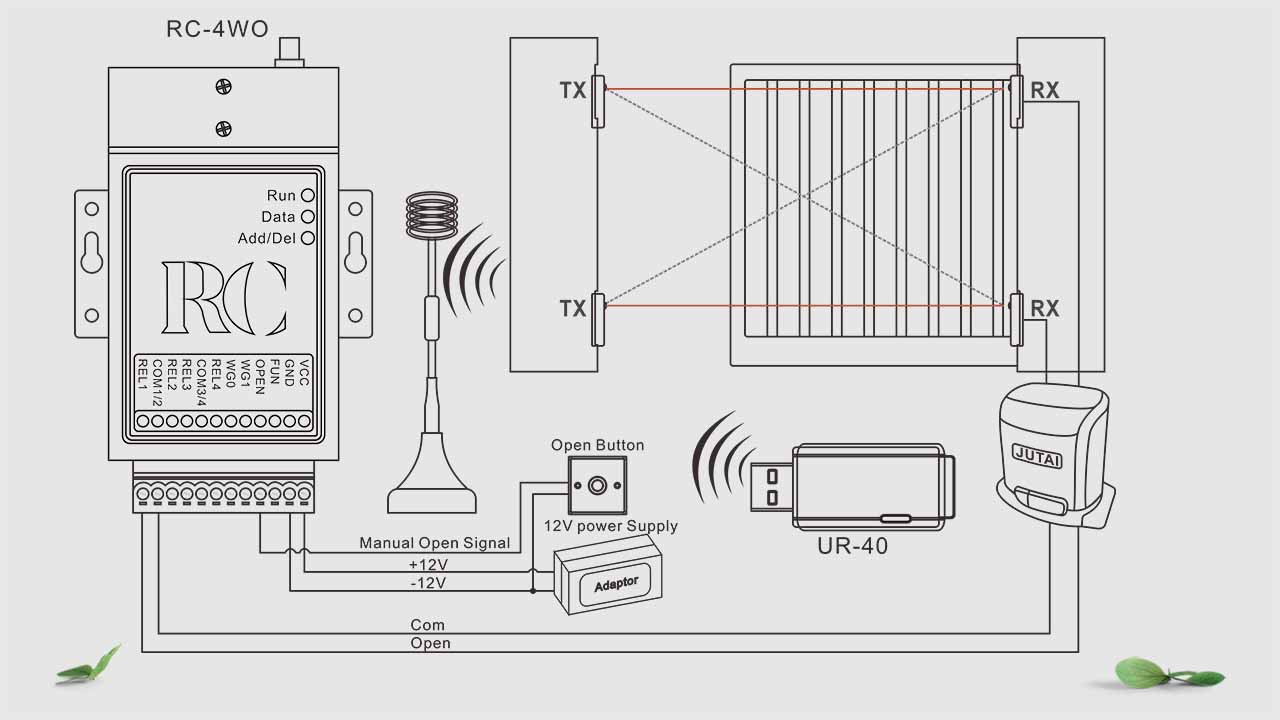

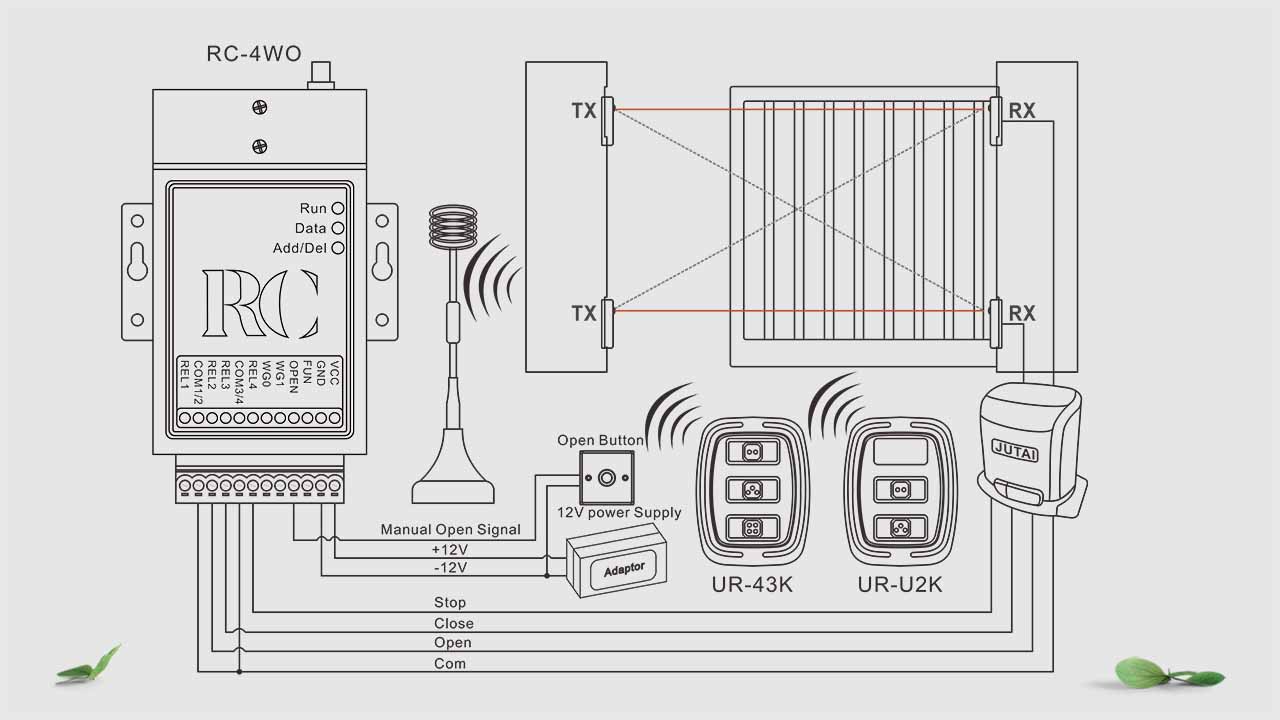

Sliding Gate Auto-Open Connection
Sliding Gate Remote Connection

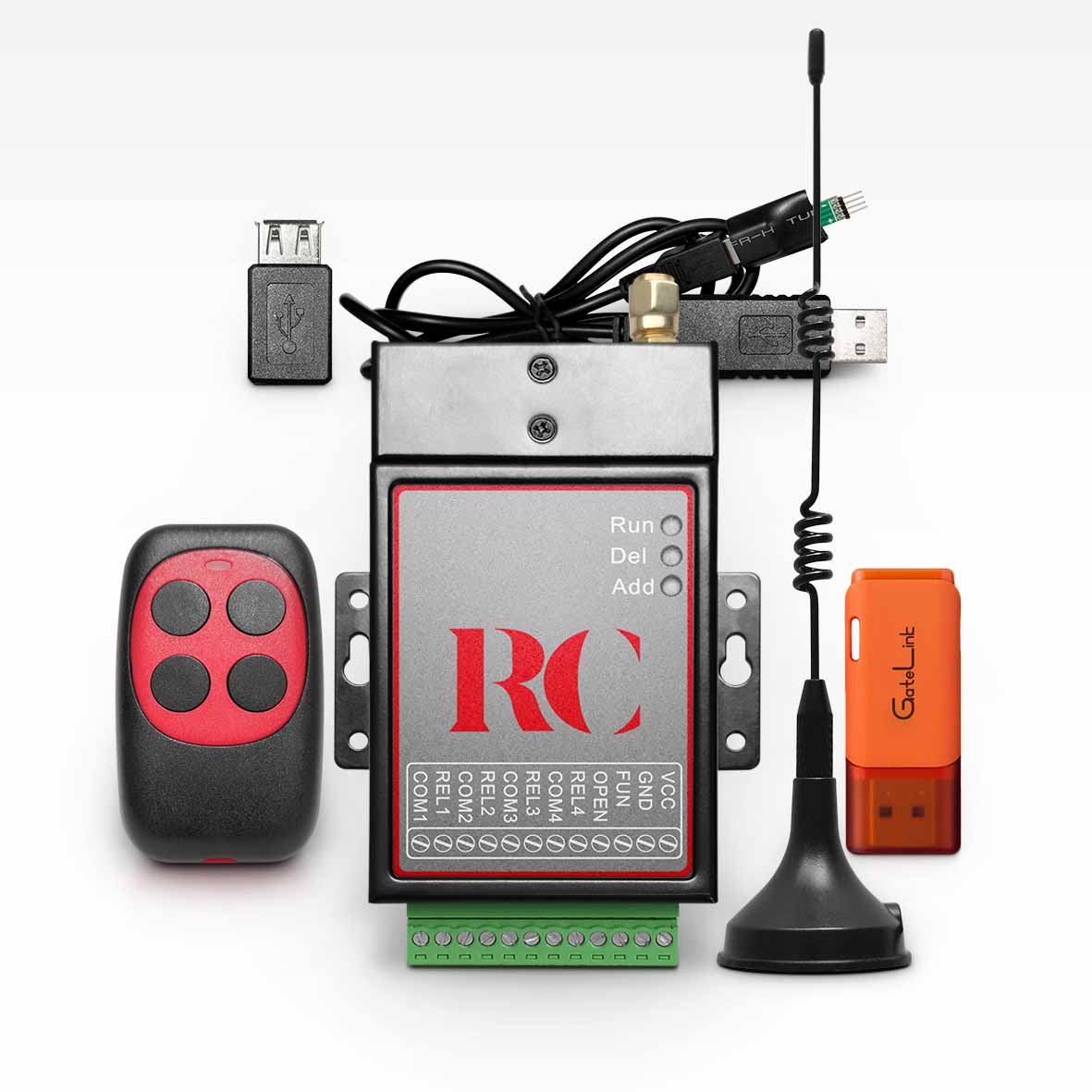

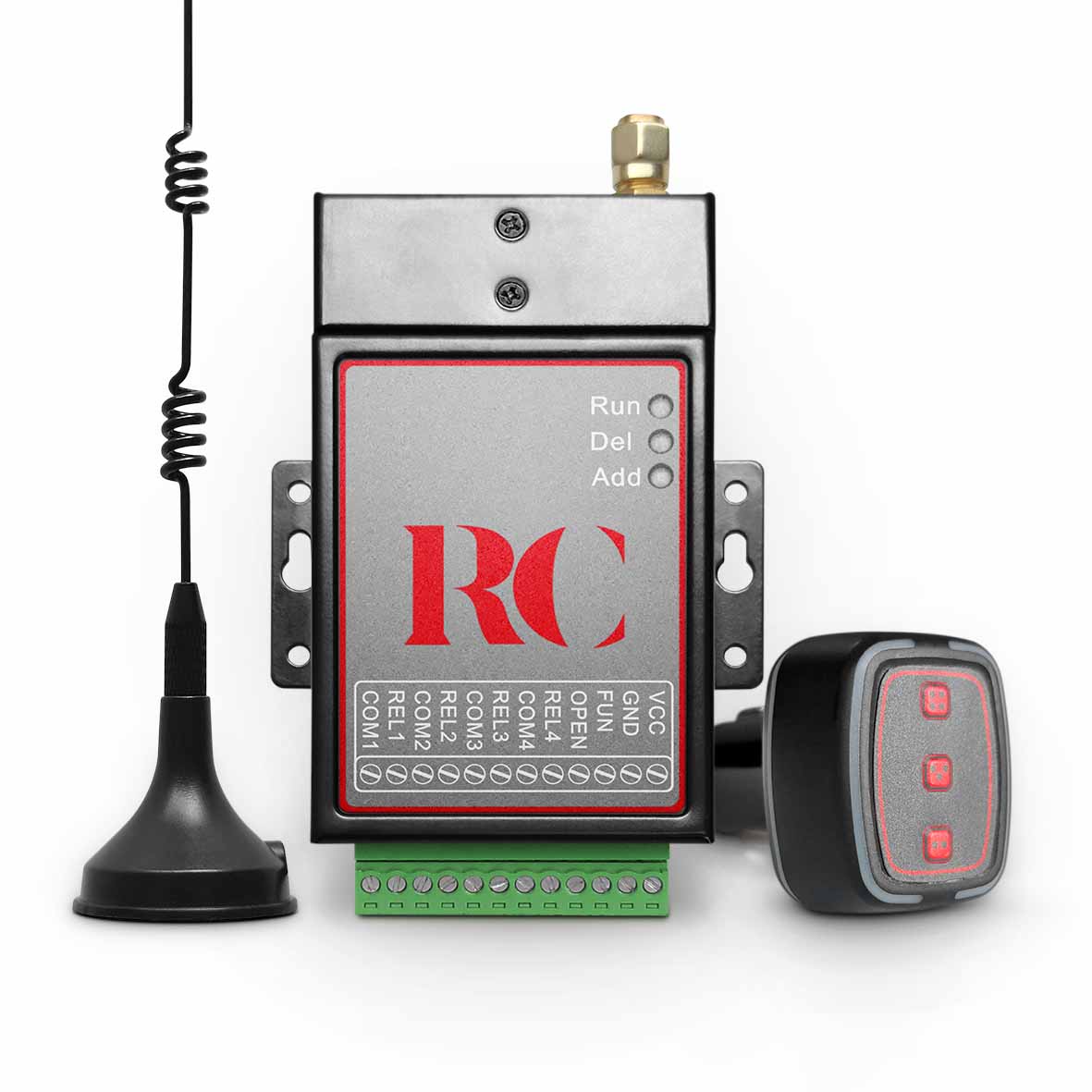

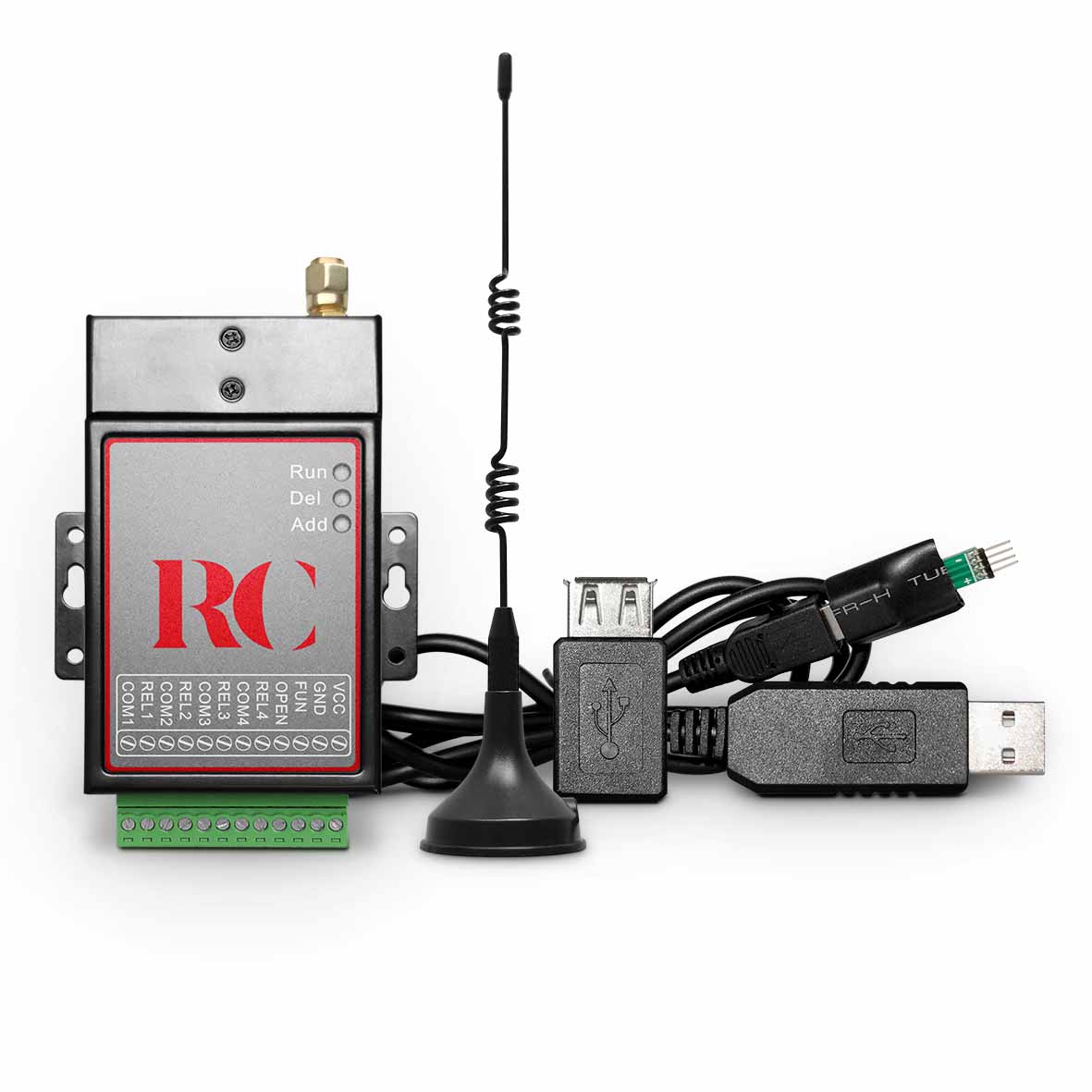

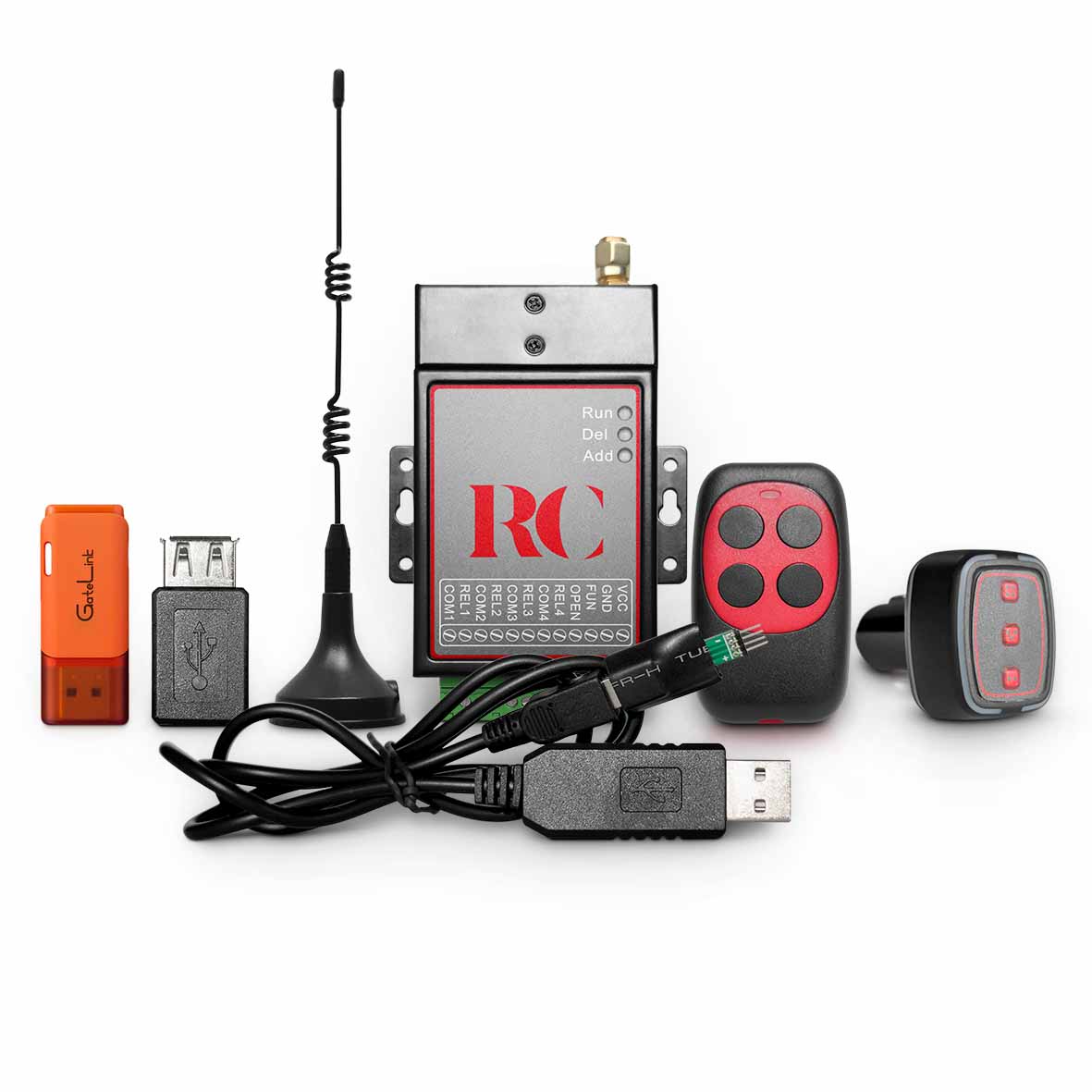

Application Photo
