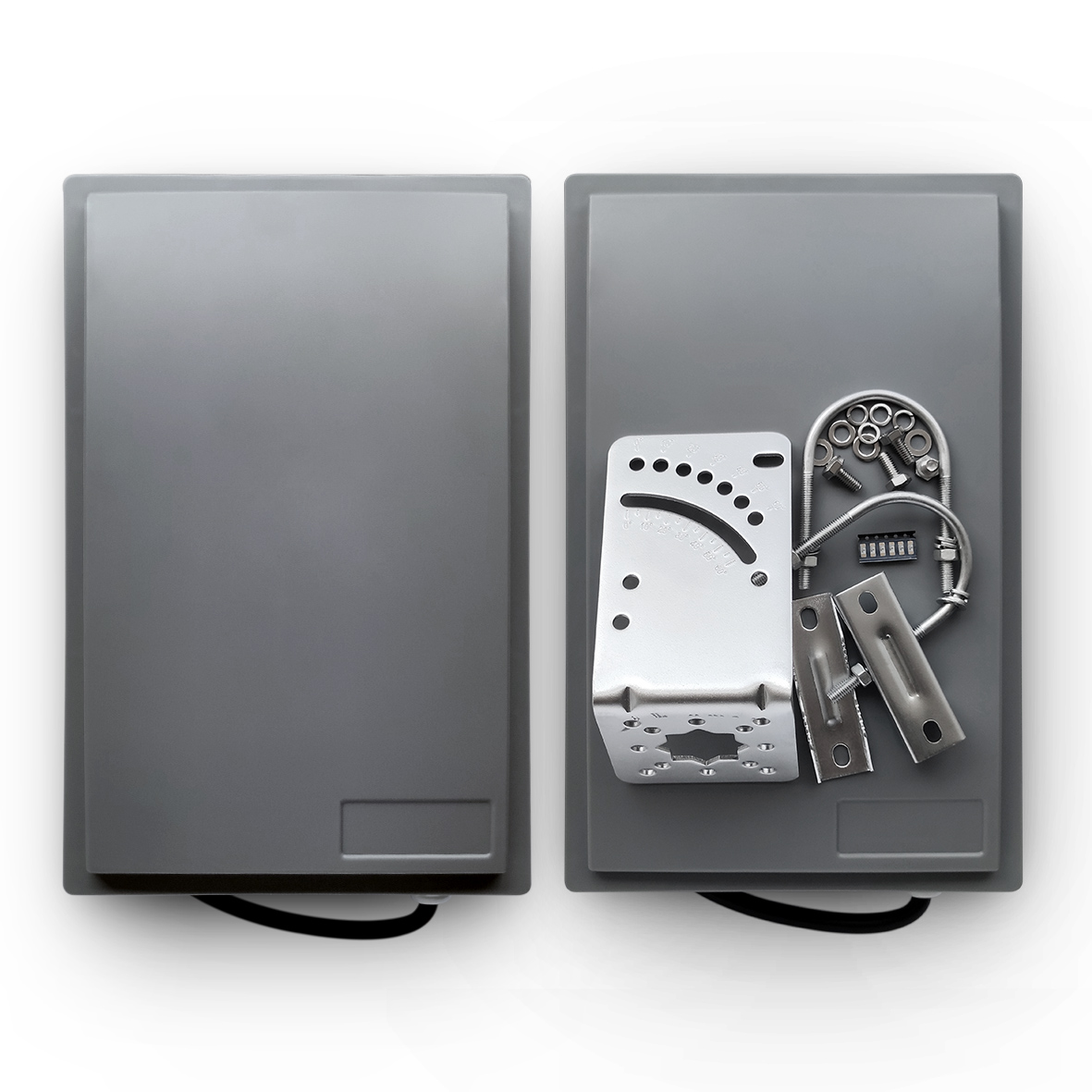

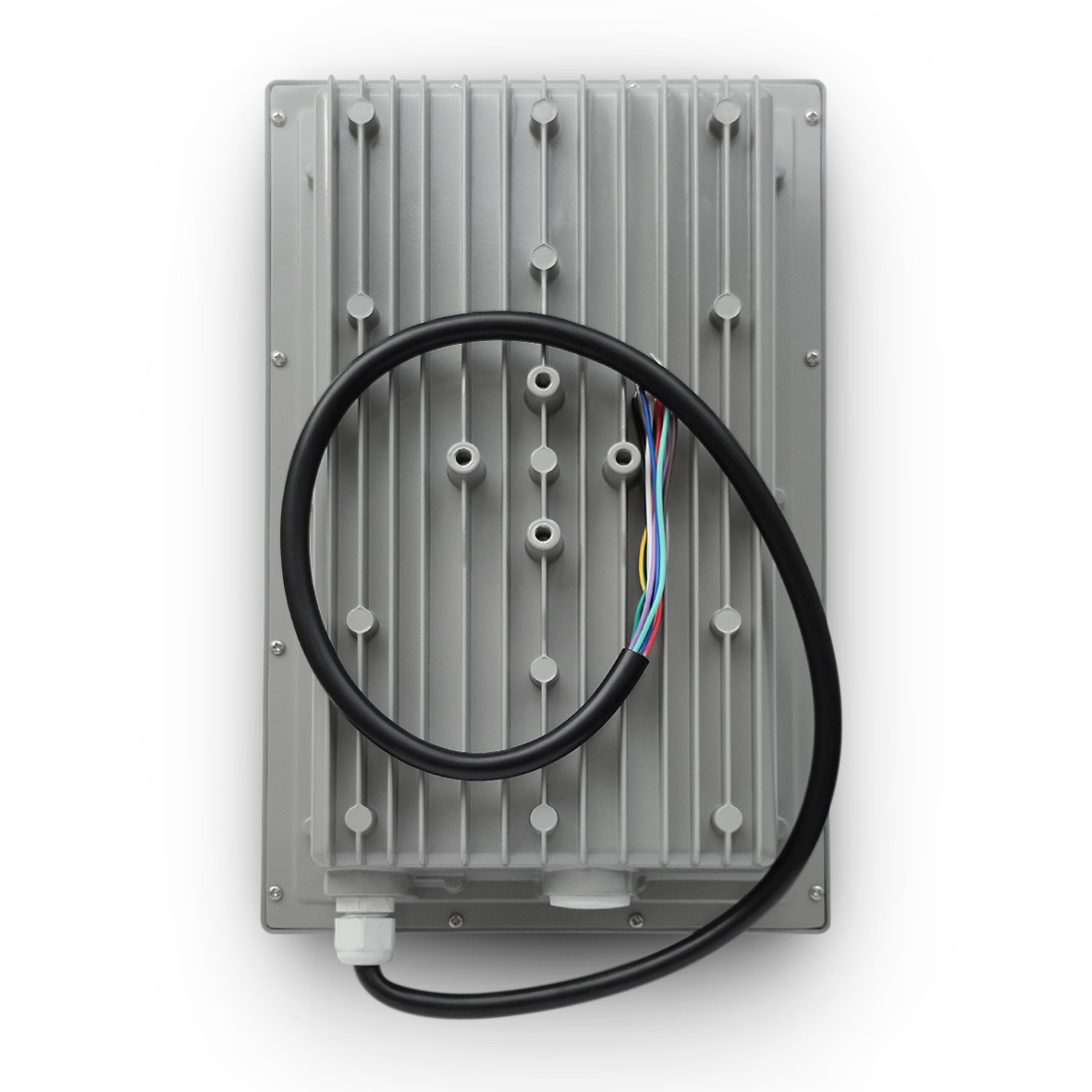

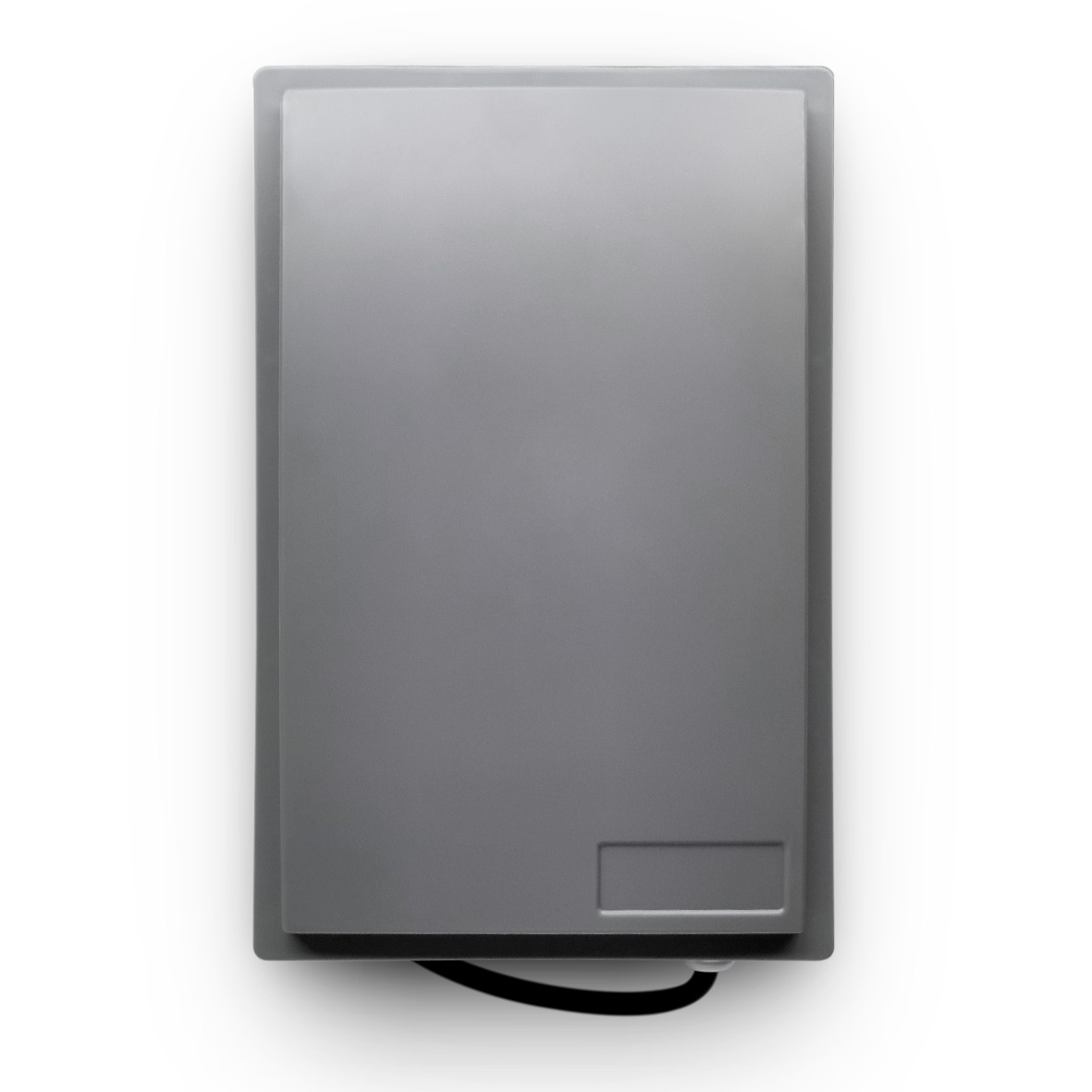

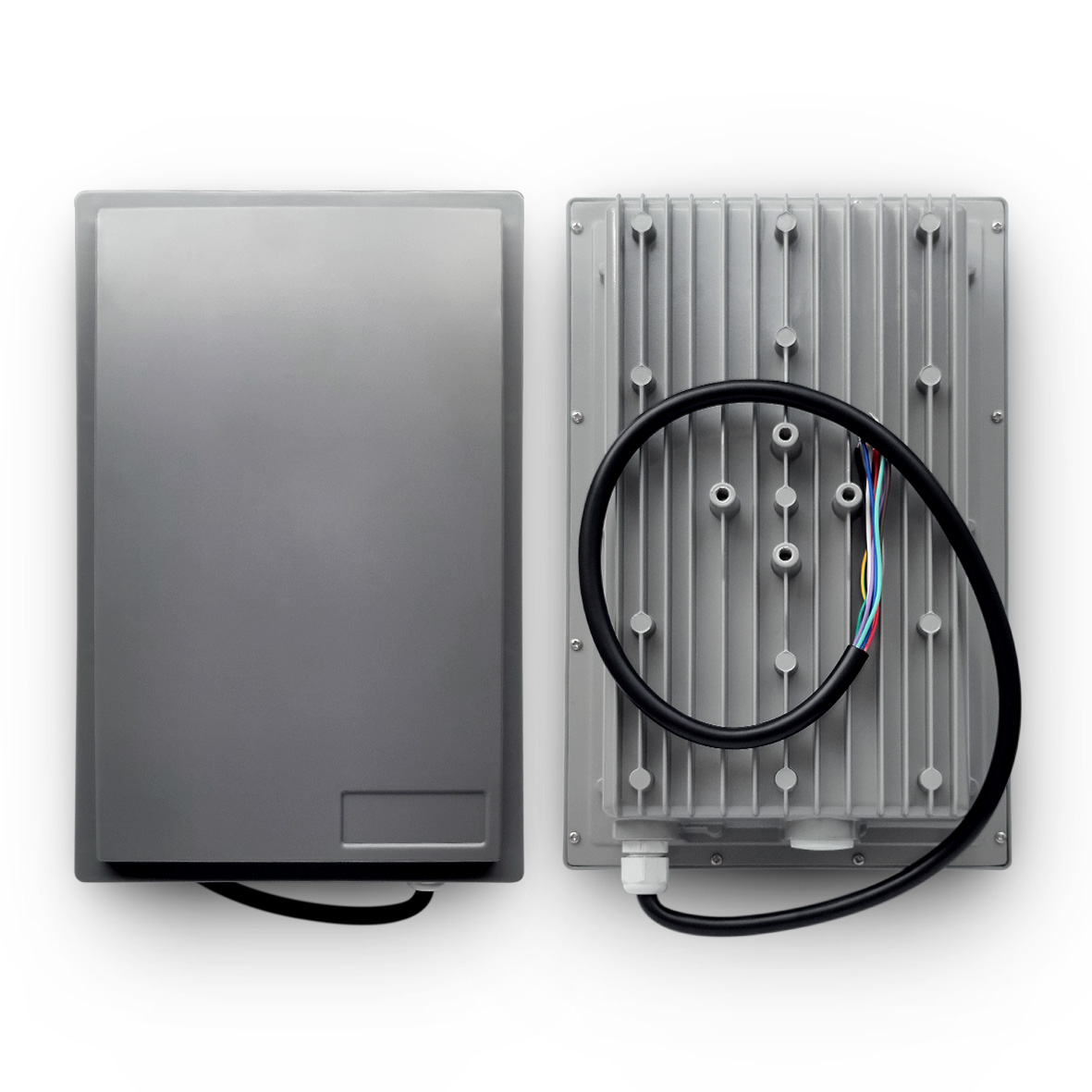

PR-2S Long Range Parking Reader


With a high-performance 32-bit ARM Cortex-M3 core microcontroller,Tag identification speed: 50 tags/sec (sending by time),Tag reading capacity: 50 tags/sec,High security of resisting disturbance,Adopts frequency Hopping& multi-type address technology, Strong encryption to card info by the unique program encryption technology, data transmitting to the reader after multi-type checking way for data processing.


With 18dBi high-gain directional antenna, Directional Capacity: 30:1,With a signal attenuator, the reading distance can be adjusted from 1 to 30 meters, which can solve customers` s different requirements in a real application,Maximum Reading Distance can reach 30 meters, it is the best solution for long-range parking identification system applications.

Technical Parameter

Power Supply 32-Bit Arm Cortex-M3
Reader Capacity 50tags/Sec
Buffer Capacity 50tags(Anti-Reread)
50tags(Anti-Reread) -20ºC~+85ºC
Attenuation Distance 1 to 30 Meters Adjustable


A.RFID Access Control Type Parking Management System


B.RFID sStandards Type Parking Management System

Note: it can receive RFID tag info directly, no need waked up RFID tag.
