Installation requirements
Installation angle:As shown in the figure. The angle between the card reader and the pole is about 30 degrees, and the front of the card reader is tilted by about 30 degrees toward the road surface where the car enters.
Wiring requirements
Wiring between card reader and controller:
(1) Wiegand interface controller: The card reader and the controller are connected by 5-core wires with a wire diameter of not less than 0.5 mm 2 and a length of less than 200 m, two power supplies and three Wiegand signal lines.
(2) 485 interface controller : the card reader and the controller are connected by a 2-core twisted pair cable with a wire diameter of not less than 0.5 mm 2 and a length of less than 1000 m
(3) Power supply:12V/3A,use high quality linear power supply
Field installation card distance test
After installing the device as required, please turn on the power of the card reader: install the remote card to the rear view mirror of the car windshield, and drive the card to wake up in the direction of the card reader. Adjust the card reader reading direction as needed to achieve the best results.
Common troubleshooting
• The reader power light does not light:
Cause analysis:
1. Power input polarity is reversed
2. Poor power supply itself
3. Solution: Wire re-connects or replaces a power supply
• Do not reading reader:
Cause analysis:
1. The card is not placed correctly
2. The card does not have a battery or the battery is dead
3. Card damage
4. Bad card reader
Solution: Install the card and battery correctly or replace the card or card reader
• Do not read cards at a distance:
Cause analysis:
1. low battery
2. Outside interference
3. The card reader position is not adjusted or the signal setting is too weak
Solution: Replace the battery or eliminate external interference, re-adjust the setting card reader
• The card reader and the control board cannot communicate:
Cause analysis:
1. The wiring sequence is wrong
2. Electrical interface does not match
3. Power is not shared
Solution: rewire as required
• Two card readers read the card at the same time(one entry and one exit):This Phenomenon occurs when the code of two adjacent readers is the same(factory default is 1)
Cause analysis:
1. The card reader code is not set
2. Card reader infrared is a overlap
Solution: Set the card reader different code(such as the entrance card reader ID1 is set to ON, then the adjacent exit must be set to ID2 or other ID number ON, and can only dial a different bit at a time ID number)
Product Warranty Term
1. Warranty period:18 months
2. Warranty: Damage caused by non-human factors. Product failure under normal use
Specifications
| Model | JTID-8 |
| Operating Voltage | DC 3V |
| Stand-by Current | 7uA (Regular Version) |
| Battery | CR2032(Panasonic)*2 |
| Battery life | 2.5 years |
| Card Life | 500,000 card readings |
| Transmission Distance | 1-15m |
| Frequency | 433MHz |

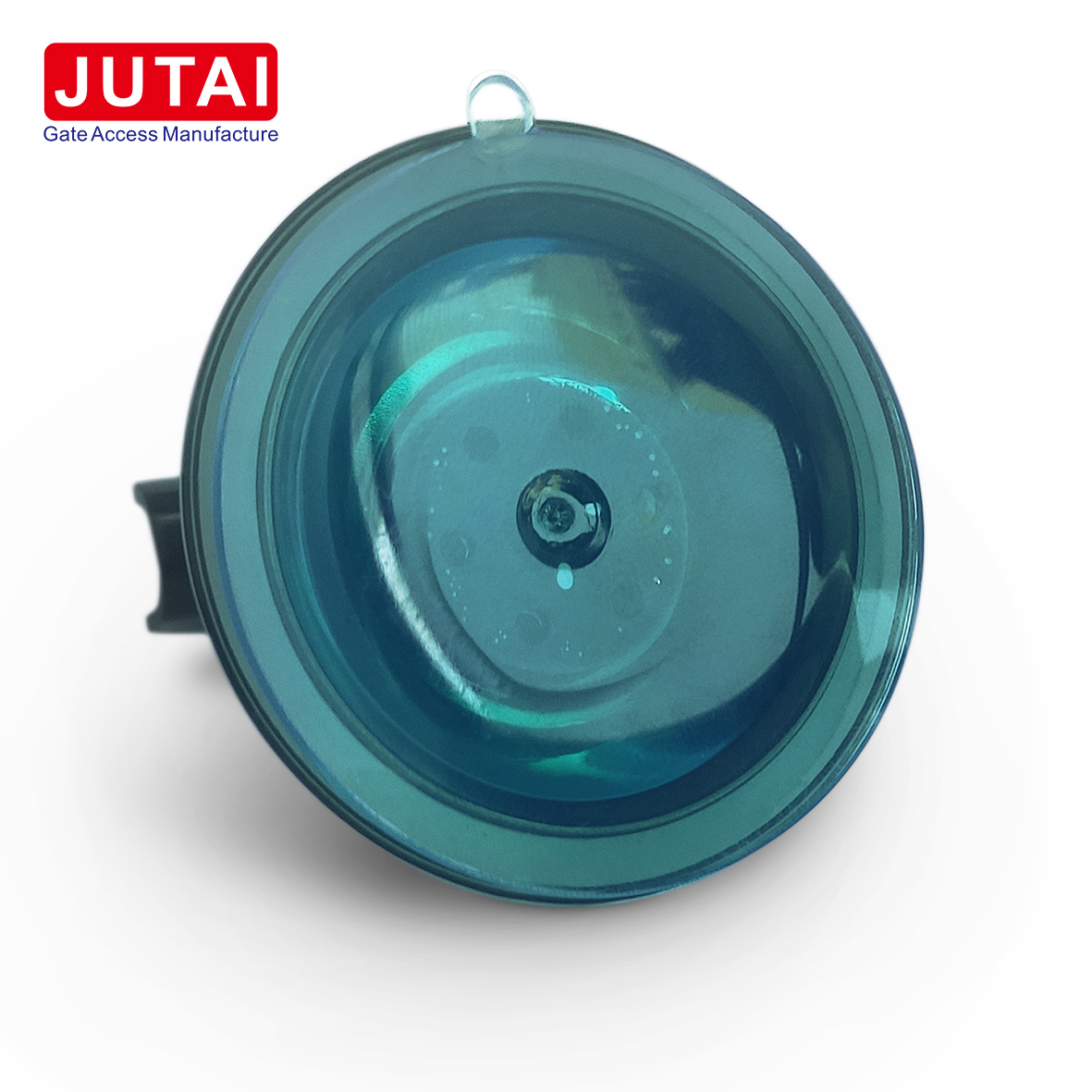

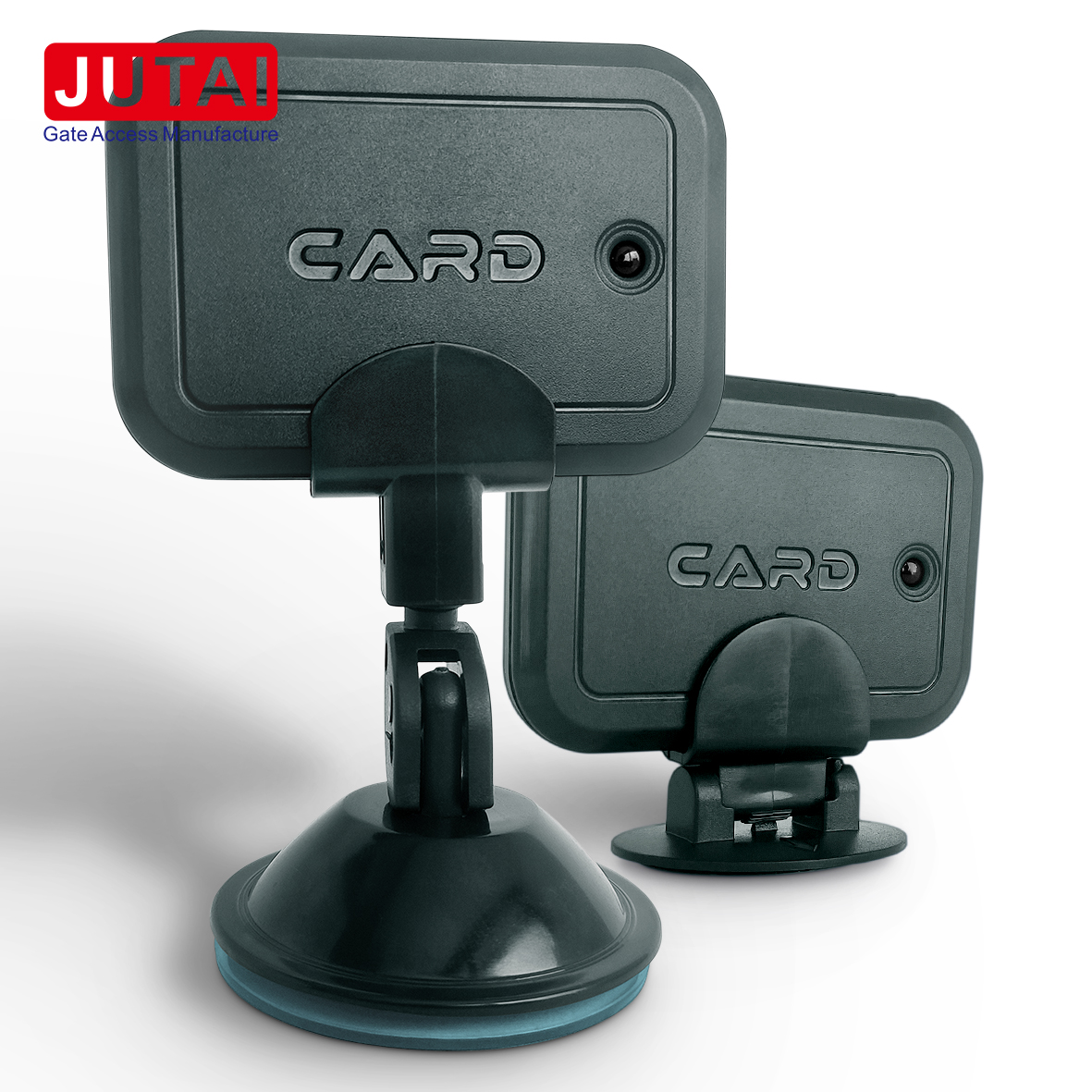

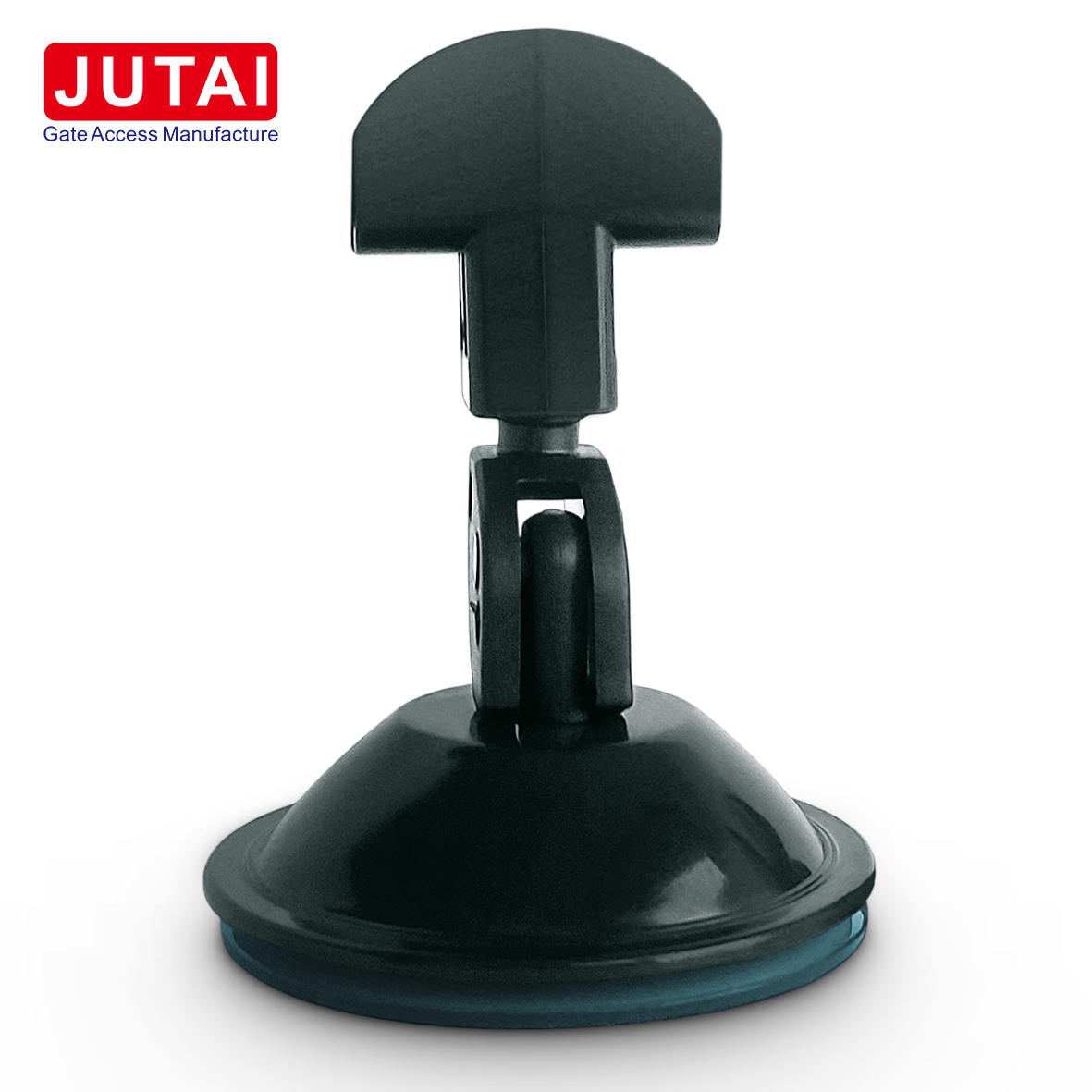

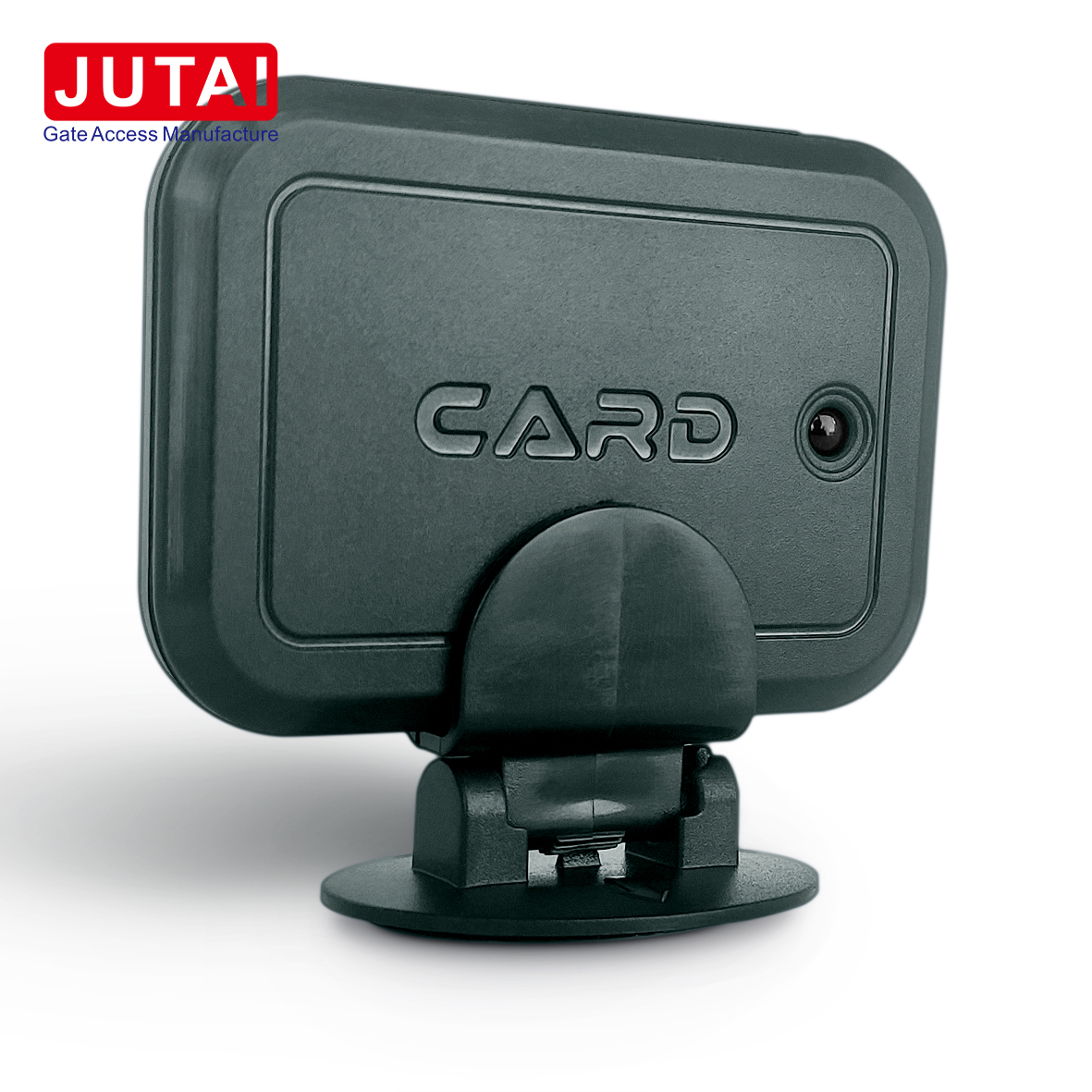

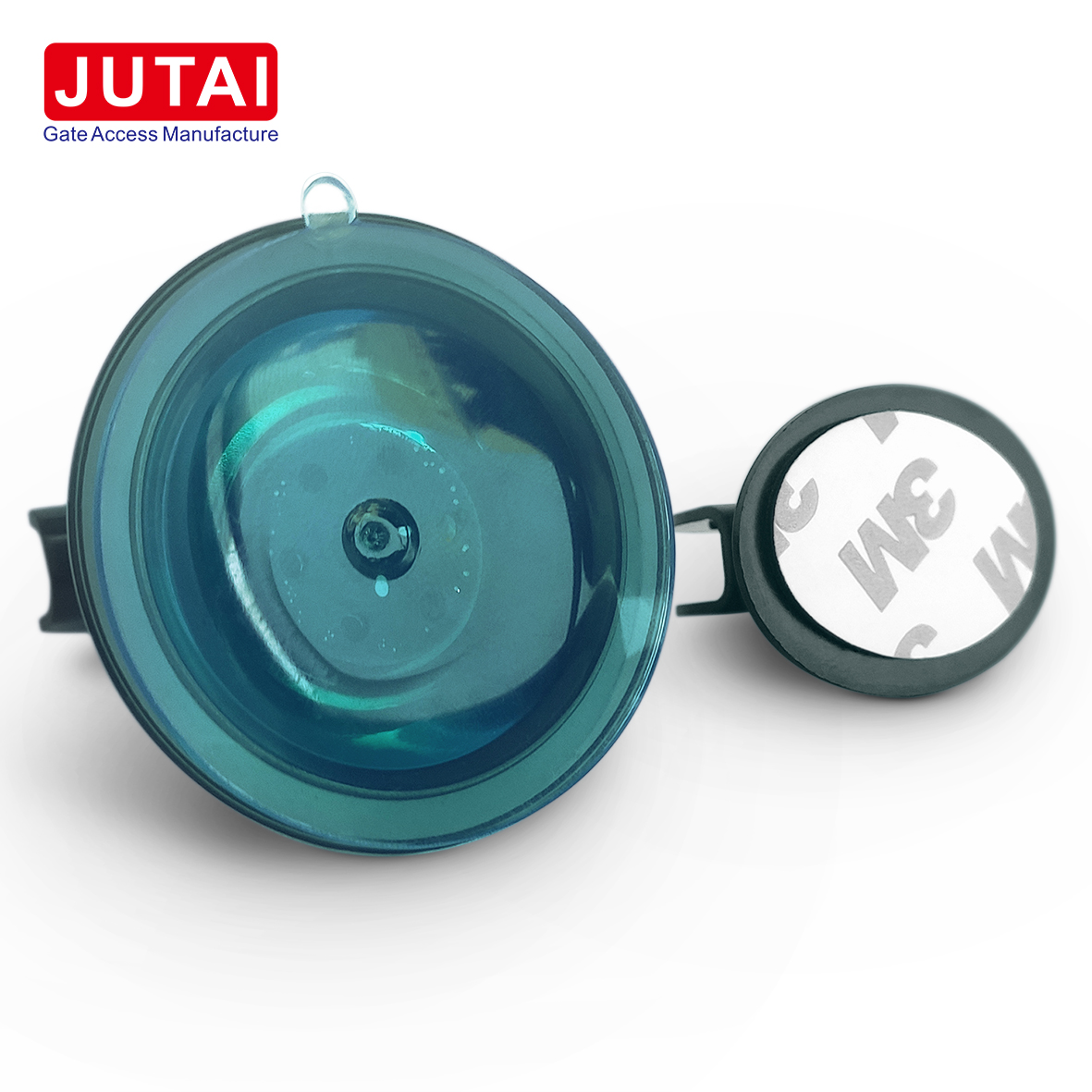

| Base | Card Holder (3M plastic) / Sucker |
| Weight | 16g(Card+Card Holder)/25g(Card+Sucker) |
| Size | 43*61.5*7.6mm |
Connection diagram
Size
