Description Of The Product
JUTAI BR-C intelligent barrier control panel has a perfect design. It has a Safety Loop Sensor Interface (with JUTAI LD-100), Safety infrared Photocell Interface (with Model IR-20), and Traffic Signal light Warning Interface ( with JD112HF-C)
Features/Benefits
- 5 years warranty
- Import Osram LED
- Component from Japan/USA
- Meet CE, EN12368, standard
- PF>0.9, THD<15
- Super fast turn on, super fast turn off, time less 100ms
- Energy saving
- Working temperature environment:-40℃~+ 70℃
- LED-based traffic signal modules
- Uniform signal appearance / no LED dots visible
- Custom-made symbol masks on request
- Design minimizes sun phantom effects
- Easy to install into existing signal enclosure
Specifications
| Items | JD213HF-C High flux traffic Indicator |
||
| Size | 200mm | 200mm | 200mm |
| Color | Red | Yellow | Green |
| LEDs (pcs) | 3 | 3 | 3 |
| Luminance (cd) | >600 | >600 | >600 |
| Module shape | Round | Round | Round |
| Typical Dominant Wavelength(mm) | 625 | 590 | 505 |
| Housing material | PC ( UV-stabilized polycarbonate) | ||
| Cover Shape | 200mm ” spherical tinted Cobweb len | ||
| Voltage (V) | 12-24V DC ，100-277V AC | ||
| Power Factor | >0.9 | ||
| Operating temperature (℃) | -40℃~+ 70 ℃ | ||
| Insulation resistance | ≥2M | ||
| Total harmonic distortion | <20% | ||
| IP rate | IP65 | ||

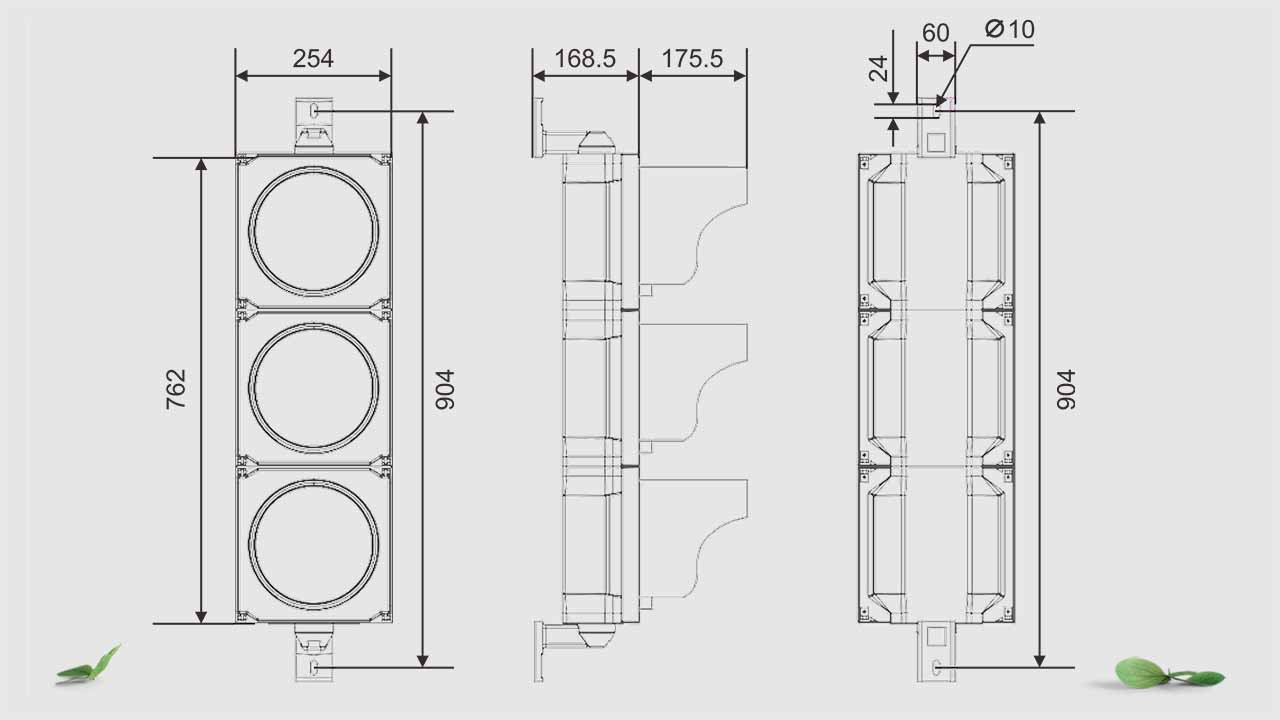

Size:Unit:(inch:mm)
Installation Step
- Step 1：Insert the screw into the hole on the pole，fix with gasket.
- Step 2：Put wire into the pole
- Step 3：Connect lights bracket and screw on the pole, fixed with gasket and M10 nuts
- Step 4：Tighten the nuts
- Step 5：Connect the wire at the bottom of pole, the color of wire is matched with the light’s color

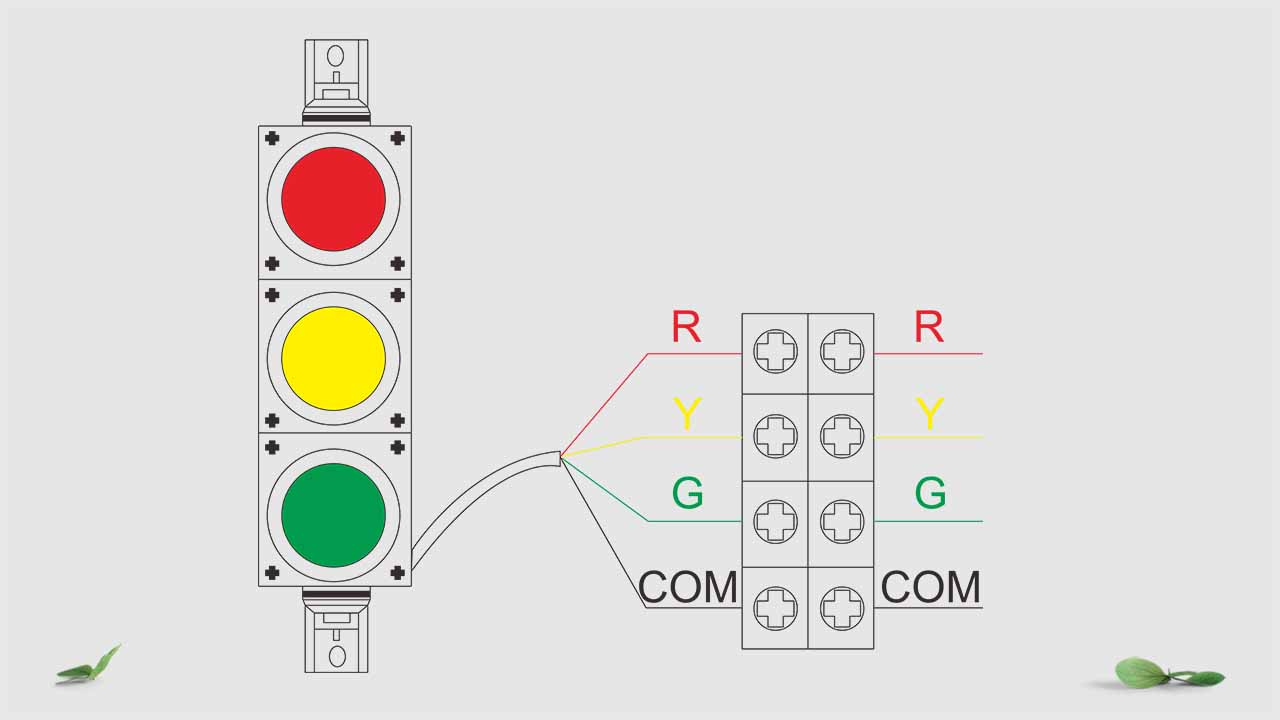

Connection Details
Order Information
The following traffic light suite same application, customers can do selection for the different projects request.
