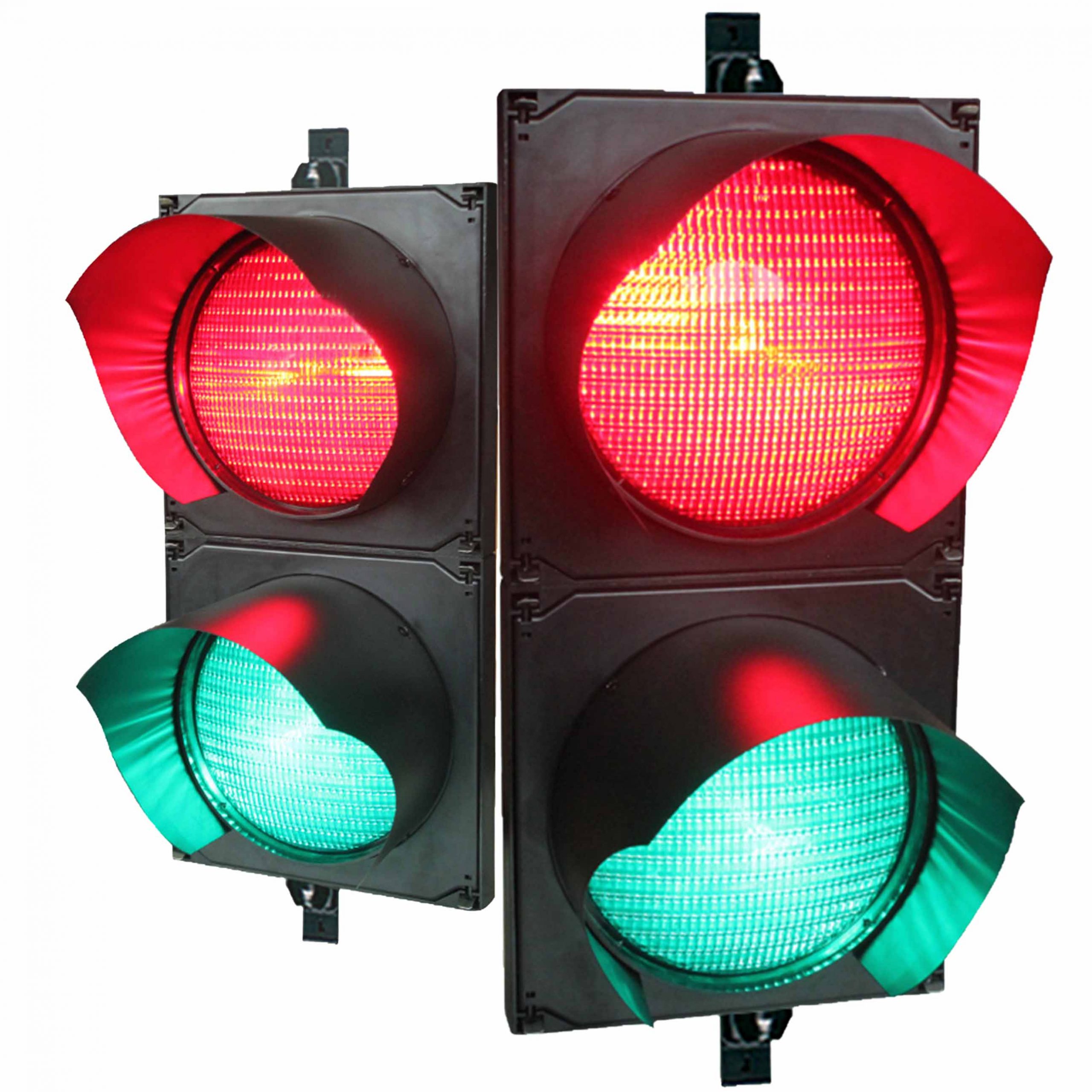

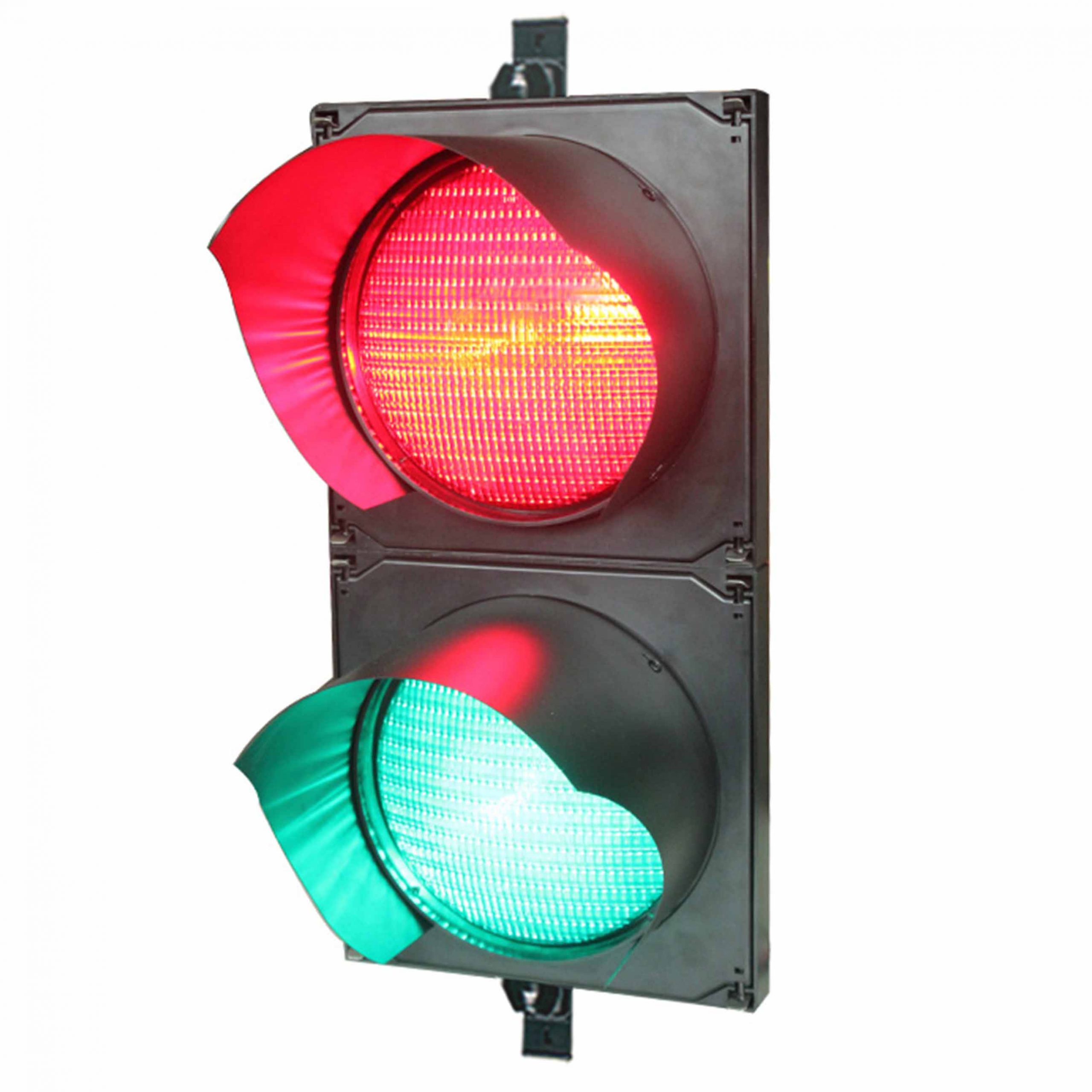

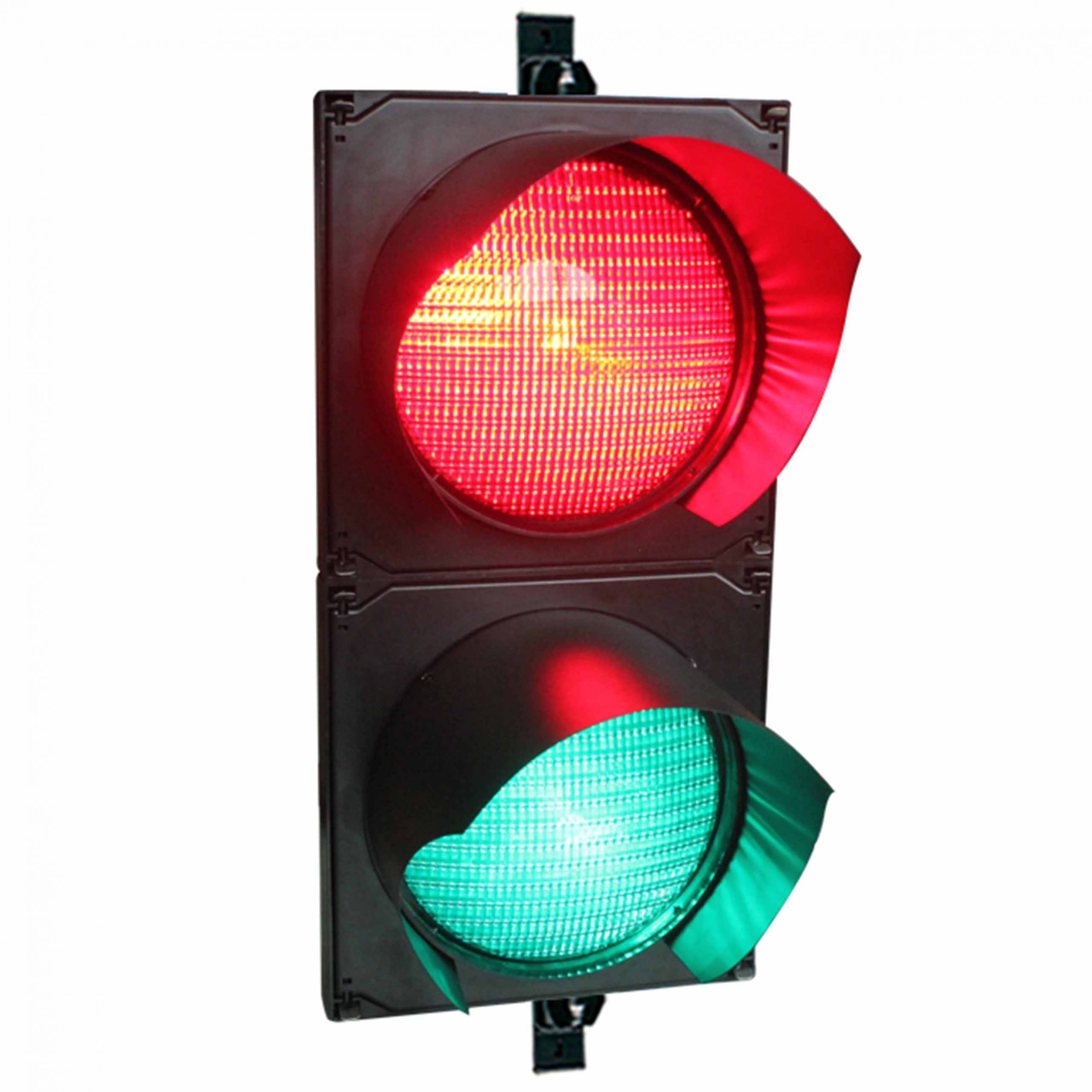

Description Of The Product
JUTAI BR-C intelligent barrier control panel has a perfect design. It has a Safety Loop Sensor Interface (with JUTAI LD-100), Safety infrared Photocell Interface (with Model IR-20), and Traffic Signal light Warning Interface ( with JD112HF-C)
Features/Benefits
- Component from Japan/USA
- Meet CE, EN12368, standard
- PF>0.9, THD<20%
- Super fast turn on, super fast turn off, time less 50ms
- Working temperature environment:-40℃~ +70℃
- LED-based traffic signal modules
- Uniform signal appearance / no LED dots visible
- Custom-made symbol masks on request
- Design minimizes sun phantom effects
- Easy to install into existing signal enclosure
Specifications
| Items | Red | Green |
| Size | 210mm | 210mm |
| Color | Red | Green |
| LEDs (pcs) | 3 | 3 |
| Luminance intensity(cd) acc.to EN12368 | >200/400 | >200/400 |
| Colour acc. To EN12368 | 613.5-631nm | 498.5-508nm |
| Uniformity acc. To EN12368 | Better than 1:2.5 | Better than 1:2.5 |
| LED type | High flux | |
| Power consumption (W) | >6 | >6 |
| Typical Dominant Wavelength(mm) | 625 | 505 |
| Housing material | PC ( UV-stabilized polycarbonate) | |
| Lens | tinted Len | |
| Operating Voltage (V) | 12-24V DC or 120VAC or 230VAC/240VAC | |
| Power Factor | >0.9 | |
| Operating temperature (℃) | -40℃~+ 70 ℃ | |
| Insulation resistance | ≥2M | |
| Total harmonic distortion | <20% | |
| Material of lens/housing | UV-stabilized polycarbonate | |
| IP rate | IP55 | |

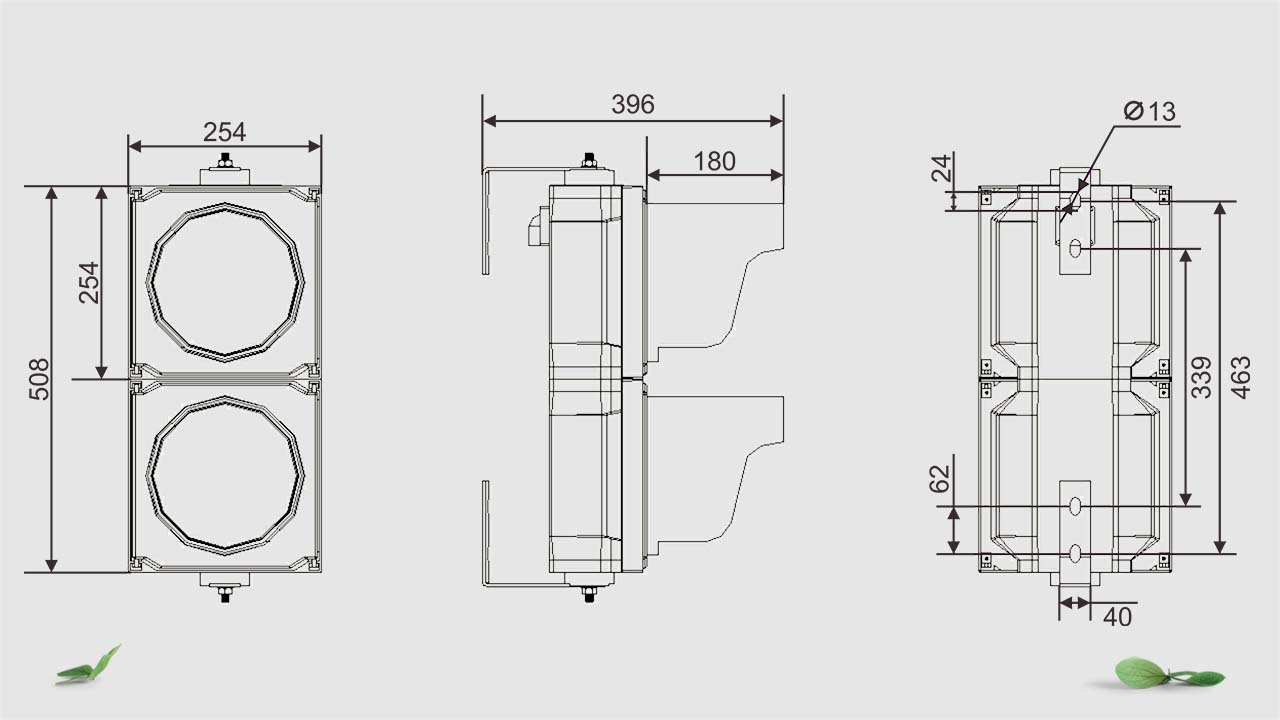

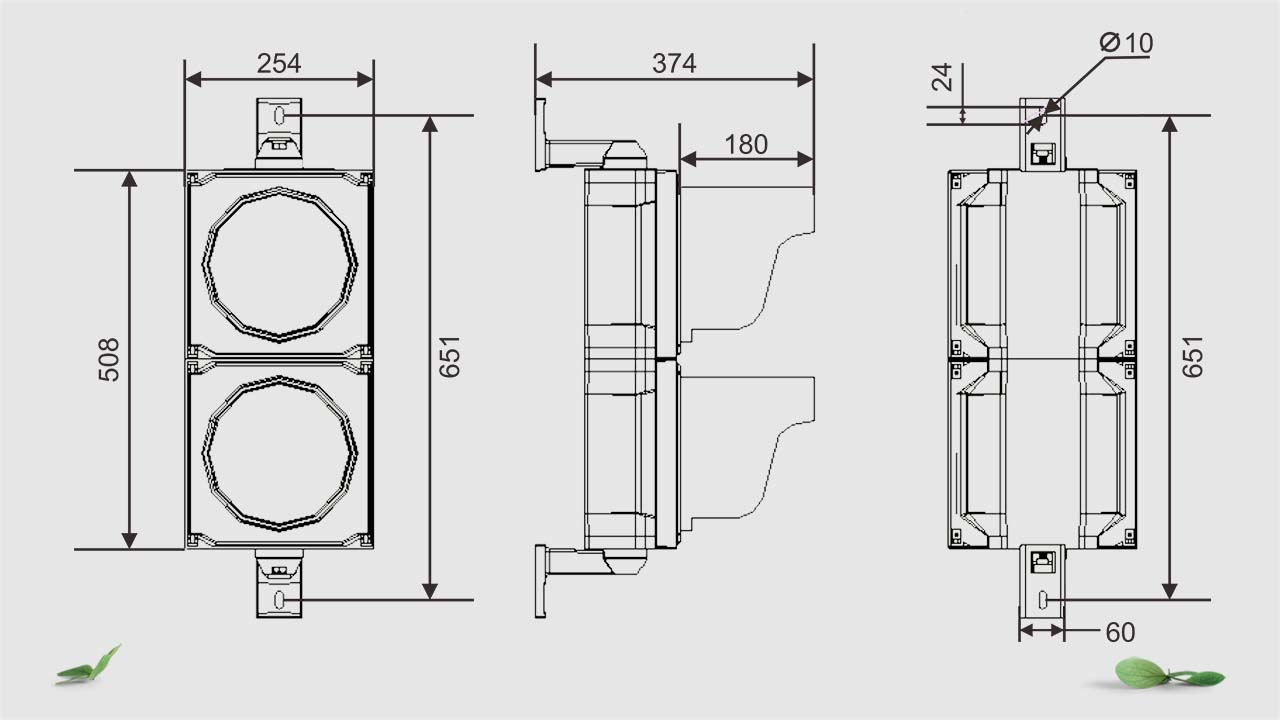

Size:Unit:(inch:mm)
L Support Type
C Support Type

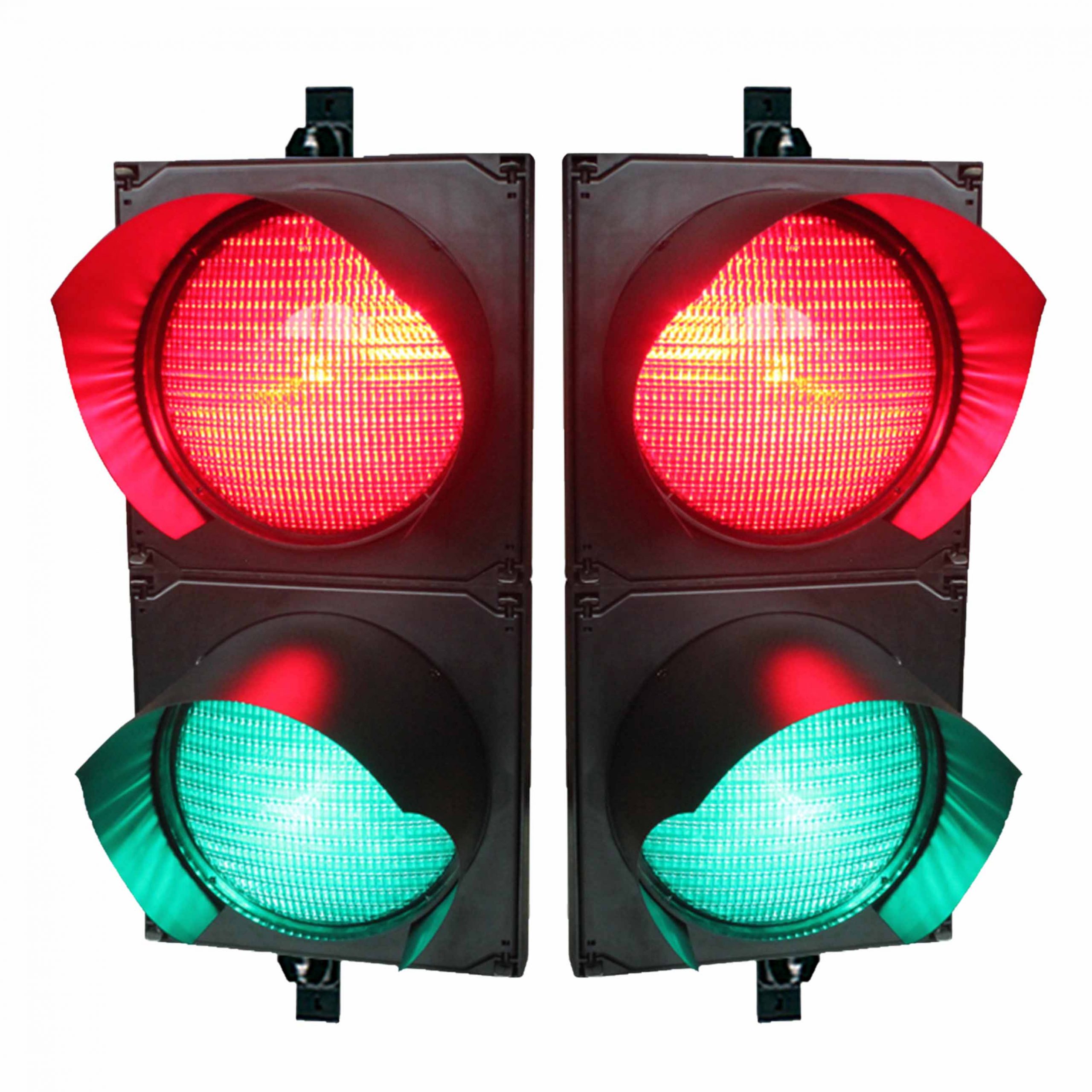

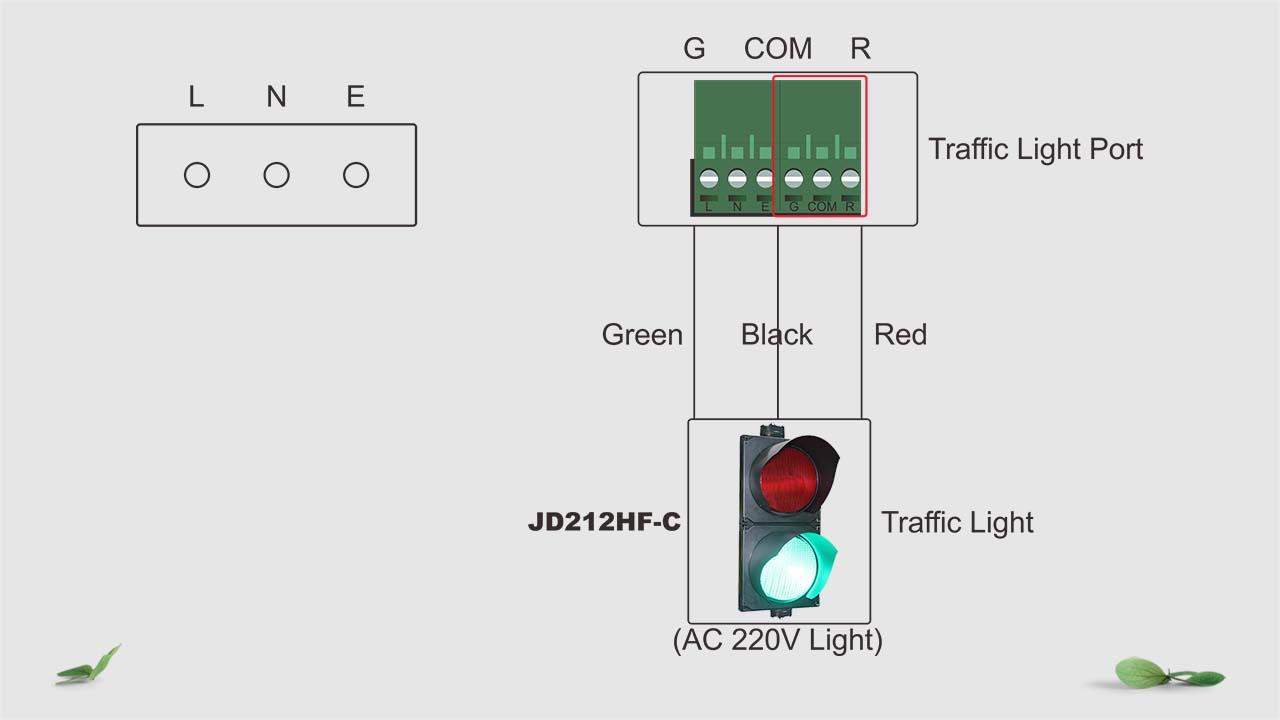

JUTAI 110-240V Traffic Signal Lamp Connection
This Connection Details Shows how to connect JUTAI signal light, we only need to connect the light to three interfaces G.COM, R Port of BR-C Controller, and take Power Supply directly from the control board. no need for additional external power supply.
JUTAI 12-24V Traffic Signal Lamp Connection
When connect JUTAI 12-24V Traffic Signal Lamp ,we need to replace connection place and need to prepare Independent power adapter ,details please refer to following connection.
The Third Part Brand Barrier Controller

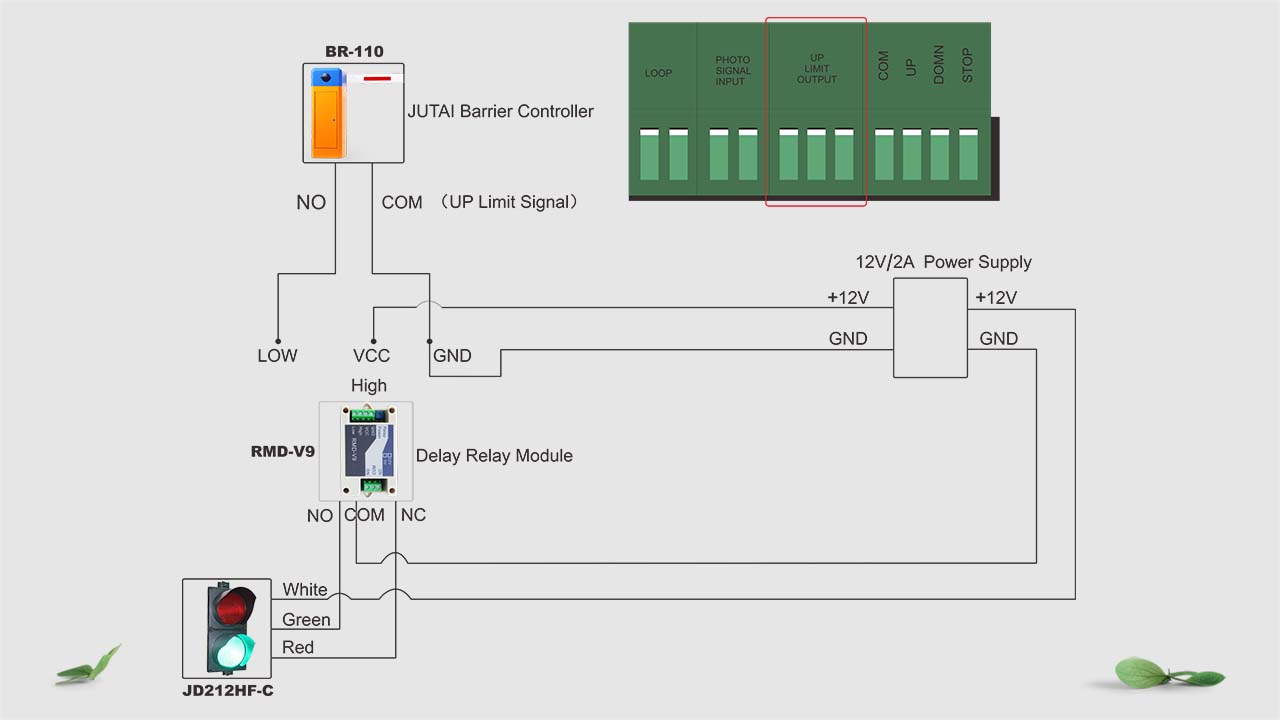

For the third part of barrier controller manufacturers, there is no specific signal light interface location, we need to use our signal light (12-24V) with the RMD-V9 delay relay conversion board, and prepare a separate power adapter with 12V power supply,connect to the corresponding interface of the barrier, realize the signal warning function.
Order Information
The following traffic light suite same application, customers can do selection for the different projects request.
