Description Of The Product
JUTAI BR-C intelligent barrier control panel has a perfect design. It has a Safety Loop Sensor Interface (with JUTAI LD-100), Safety infrared Photocell Interface (with Model IR-20), and Traffic Signal light Warning Interface ( with JD112HF-C)
Features/Benefits
5 years warranty
High flux LED
Component from Japan/USA
Meet CE, standard
PF>0.9, THD<15
Super fast turn on, super fast turn off, time less 100ms
Energy saving
Working temperature environment:-40℃~+ 70℃

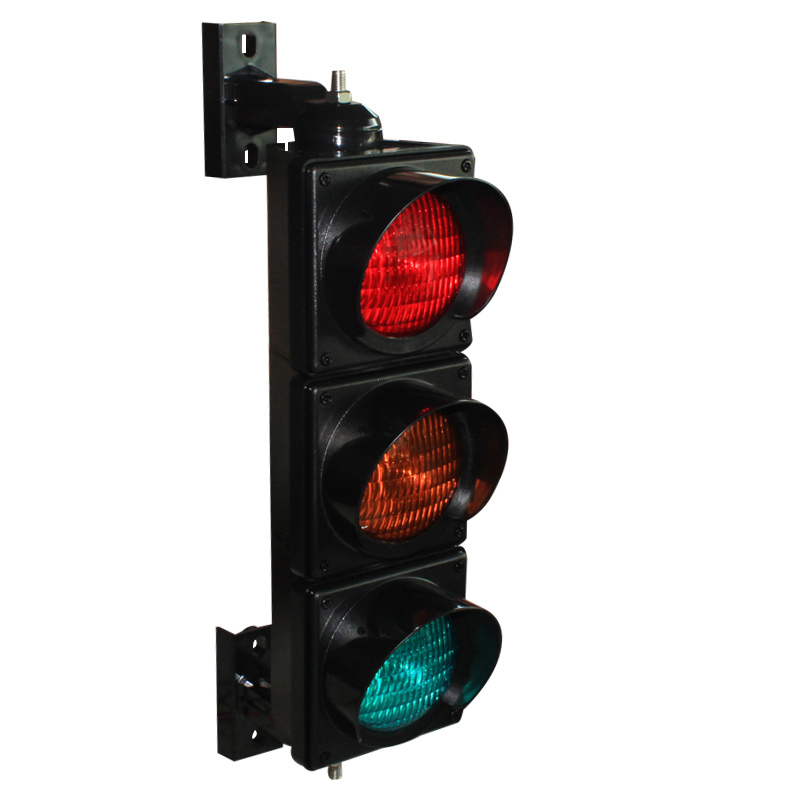

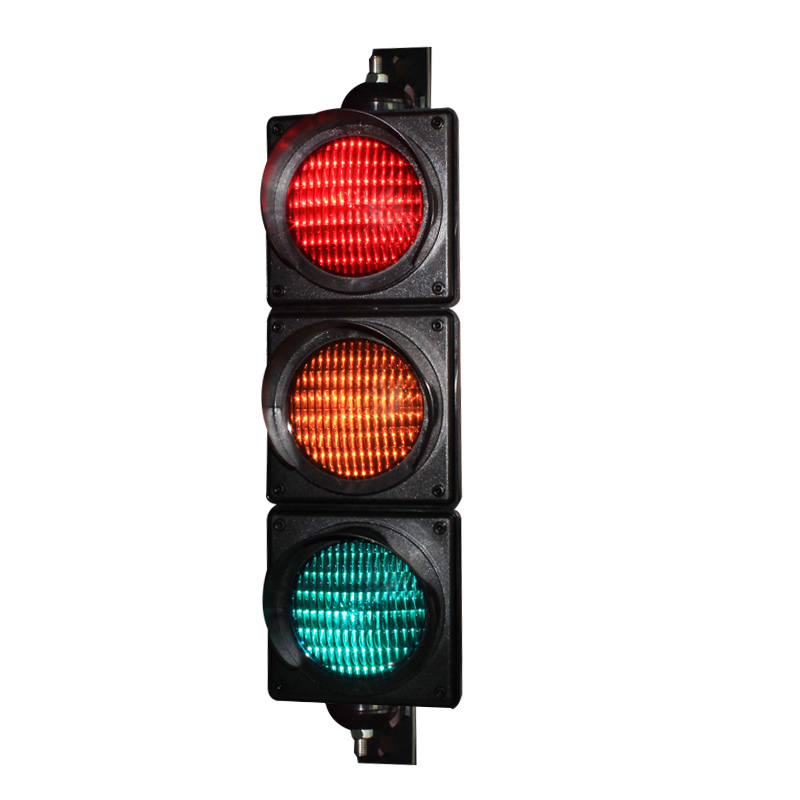

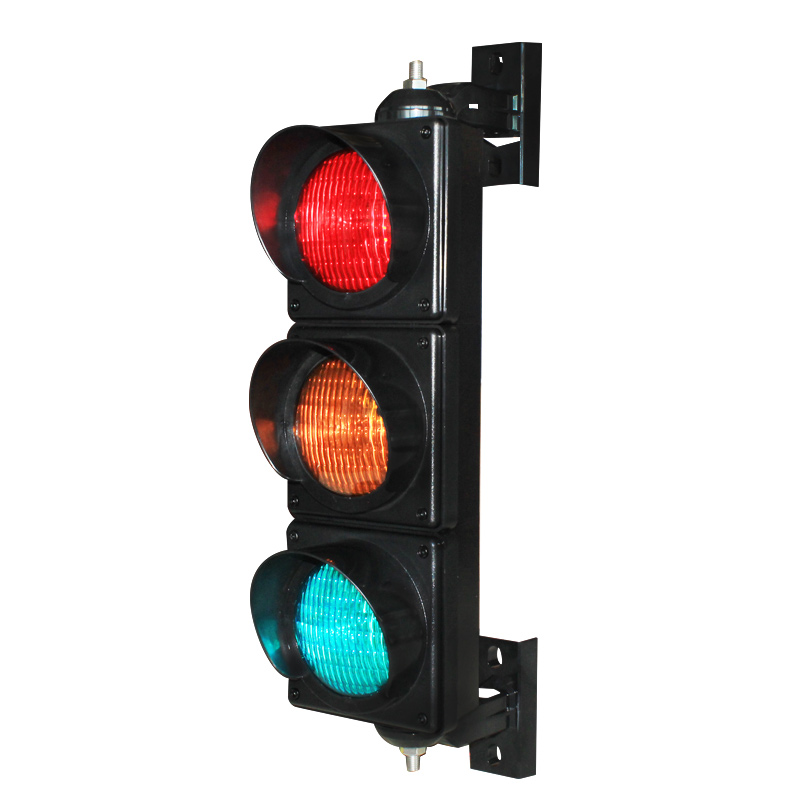

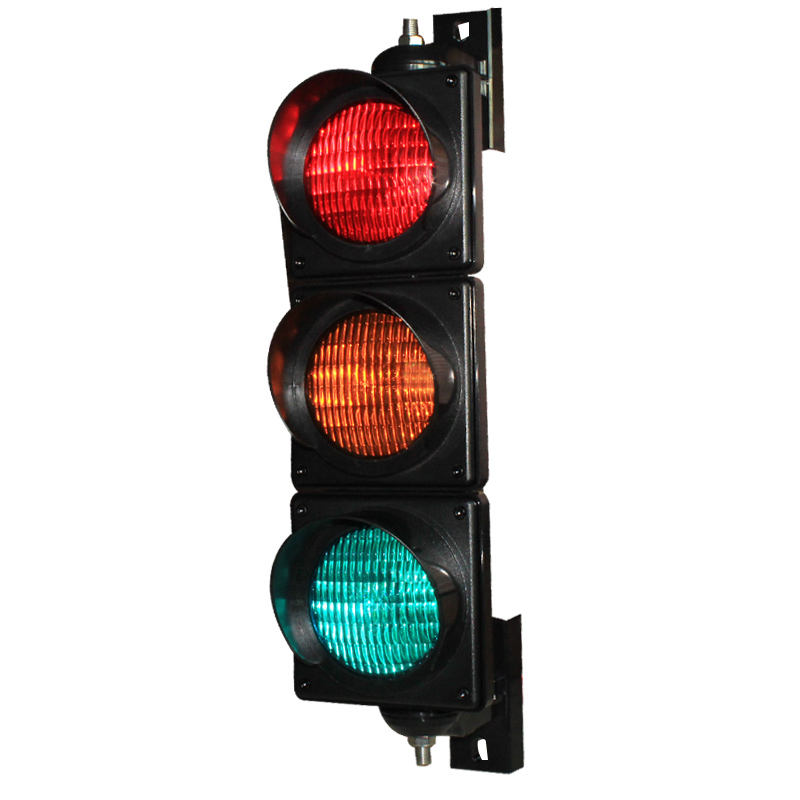

LED-based traffic signal modules
Uniform signal appearance / no LED dots visible
Custom-made symbol masks on request
Design minimizes sun phantom effects
Easy to install into existing signal enclosure
Specifications
| Items | JD113HF-C | ||
| Size | 100mm(4’) | 100mm(4’) | 100mm(4’) |
| Color | Red | Amber | Green |
| LEDs (pcs) | 1 | 1 | 1 |
| Luminance (cd) | >100 | >100 | >100 |
| Module shape | Round | Round | Round |
| Power consumption (W) | >5 | >5 | >5 |
| Typical dominant wavelength(mm) | 625 | 590 | 502 |
| Housing material | PC ( UV-stabilized polycarbonate) | ||
| Cover shape | tinted Cobweb len | ||
| Voltage (V) | 120VAC or 230VAC or 12-24V DC | ||
| Power factor | >0.9 | ||
| Operating temperature (℃) | -40℃~+ 70 ℃ | ||
| Insulation resistance | ≥2M | ||
| Total harmonic distortion | <20% | ||
| IP rate | IP65 | ||

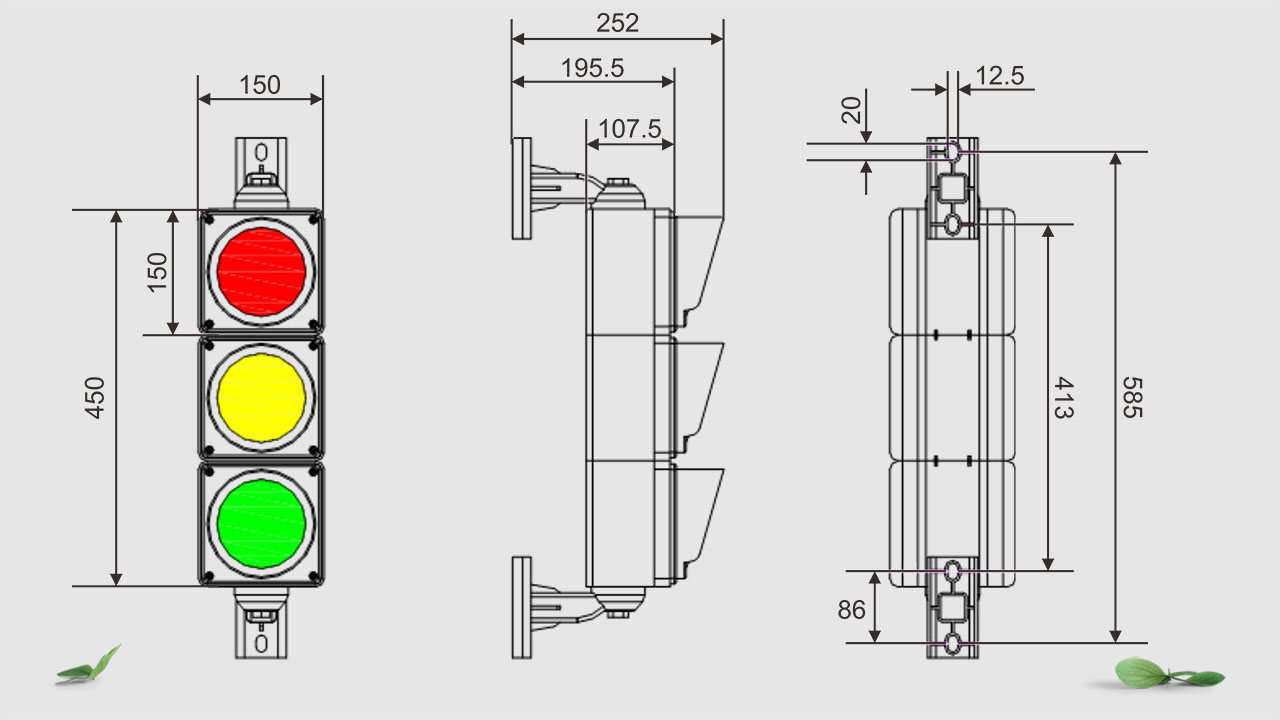

Size:Unit:(inch:mm)
Order Information
The following traffic light suite same application, customers can do selection for the different projects request.
