JD112F-C Traffic Indicator

Introduction

JUTAI Traffic signal lights are mainly used at lane entrances and industrial doors,
playing a safety warning role. The signal lights mainly include 100MM single light
with red and green dual color, 100MM LED signal light, 100MM high flux signal light,
200MM led signal light, 200MM high flux signal light, LED signal lights have a one-year warranty, and high flux signal lights have a five year warranty.

Application

Taking parking access control application as an example, its working principle is that when the barrier gate is fully opened, the green light is on, and when the barrier gate pole starts to descend to fully closed, the red light is on, indicating that traffic is prohibited during the process of lowering the barrier gate arm, thus playing a good safety warning role.

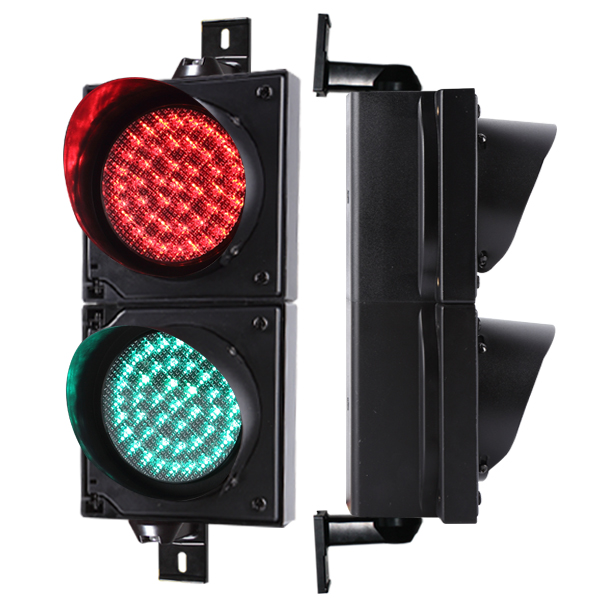

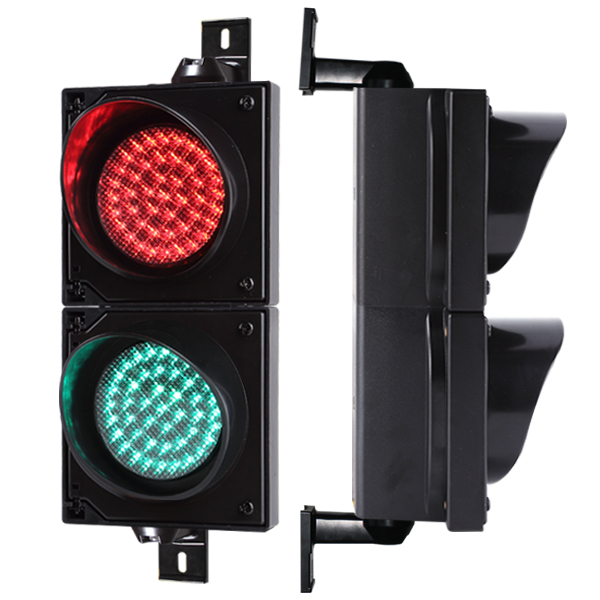

Description Of The Product

Performance Specifications

Shape:100mm (4”)
High brightness LEDs with integrated optics
Moisture and dust tight seal:IP65
Total Harmonic Distortion<20%
OperatingTemperature Range(optional):-20℃ ~ +60℃
Angle:Avg. ≥30° Down ≥30°
Operating voltage Range:85~265VAC
Insulation Resistance:≥2M
Life:100,000H
Housing material:PC

Features/Benefits

1.Reduce overall operating & Maintenance costs:Energy saving:90% reduction in power consumption vs incandescent

2.Reliability & traffic safety:·Improved visibility over life of the product Reduces emergency lamps outs Design minimizes sun phantom effects

3.Easy to install into existing signal enclosure

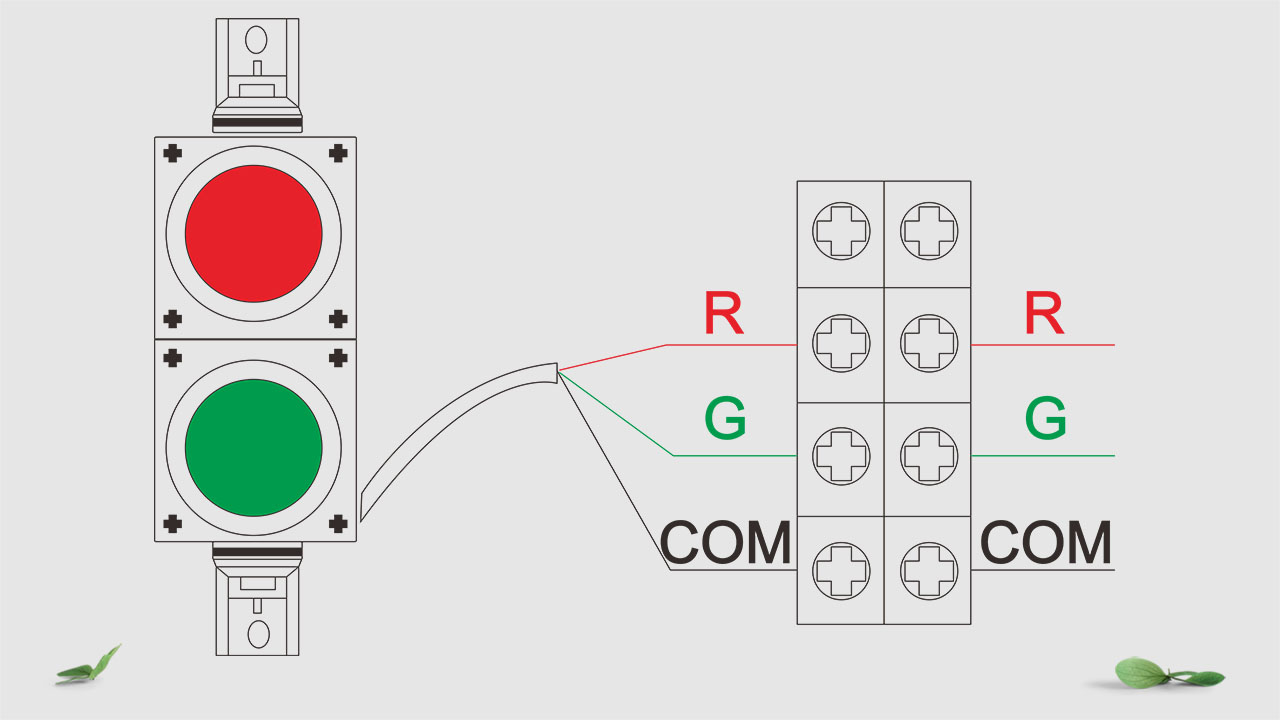

Connection Details

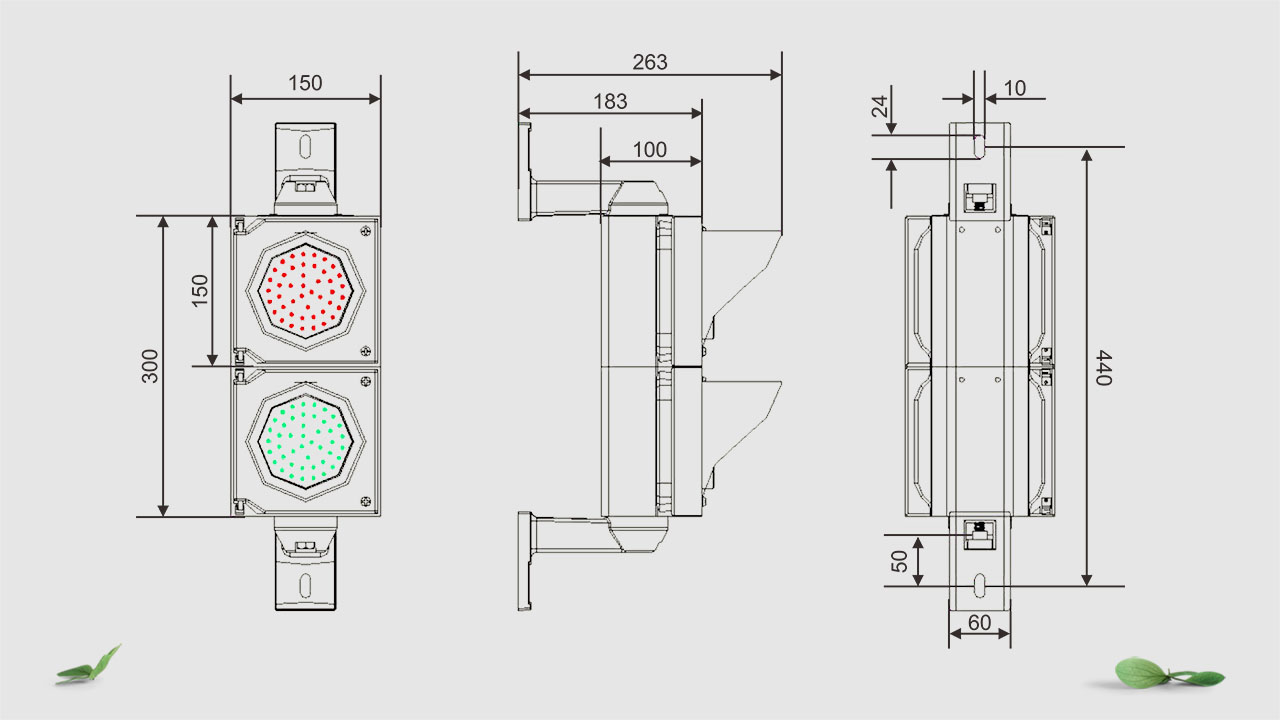

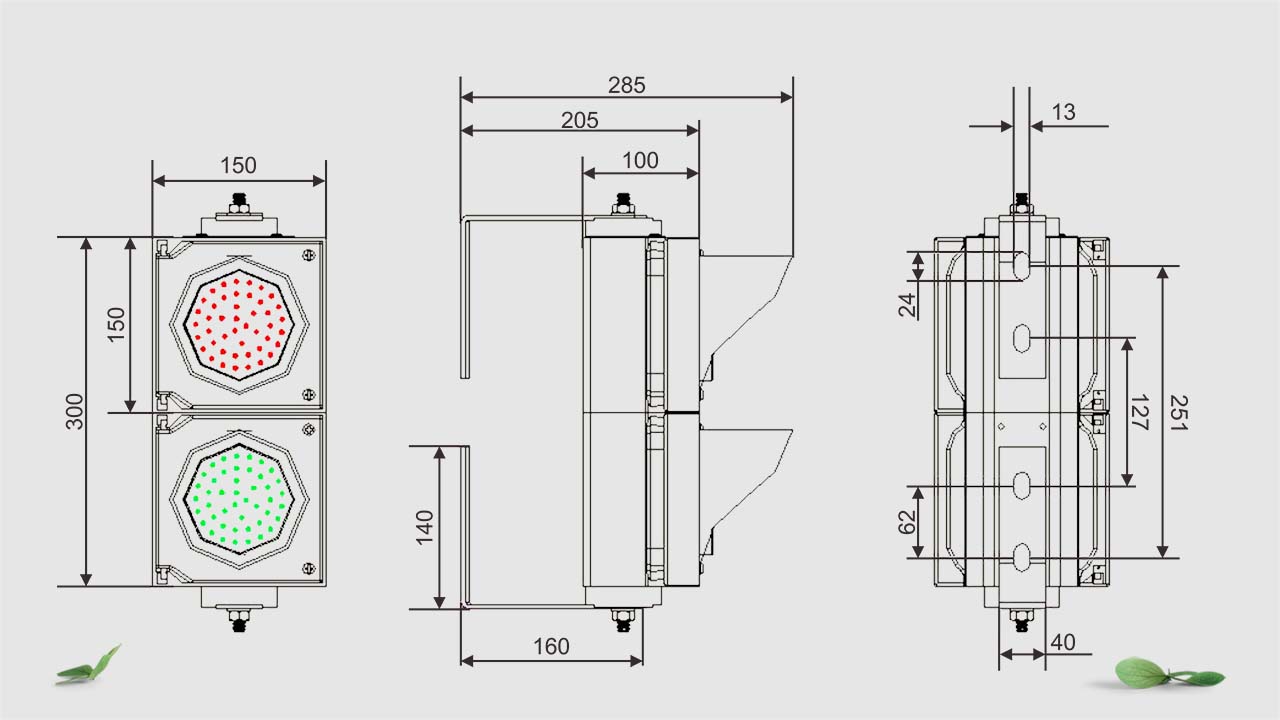

Size:Unit:(inch:mm)

L-Support type

C-Support Type

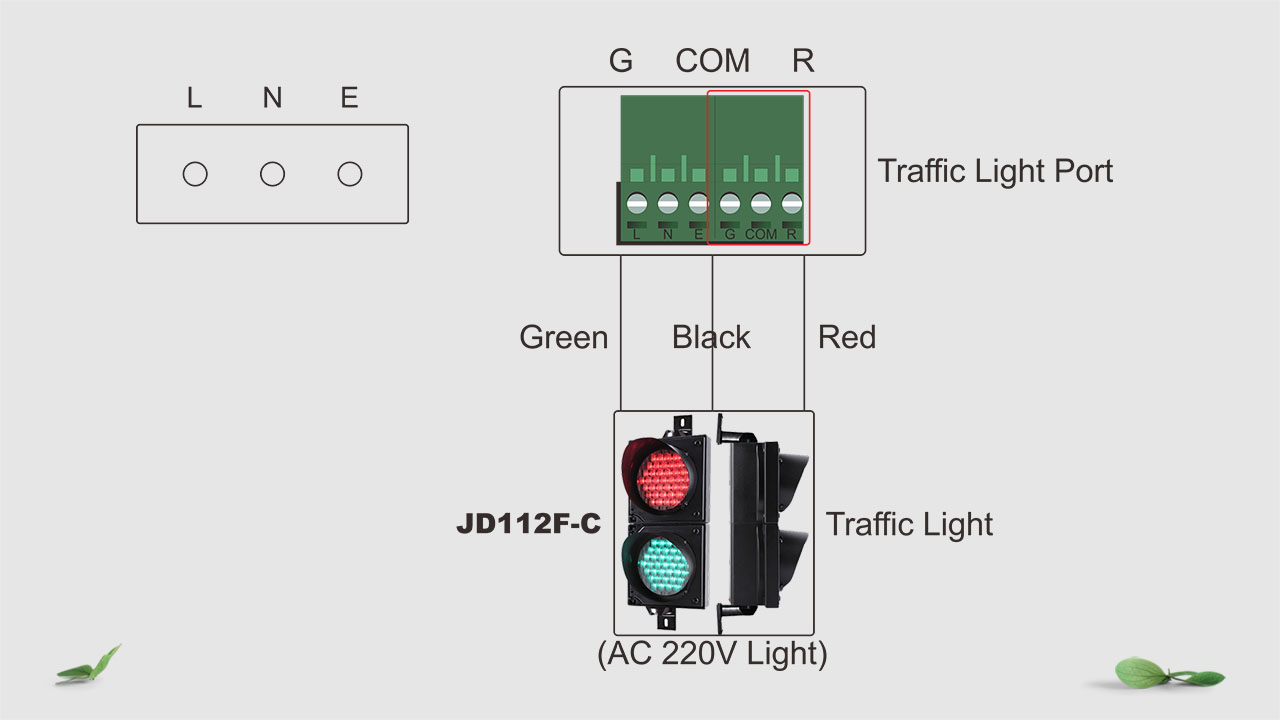

JUTAI 110-240V Traffic Signal Lamp Connection

JUTAI BR-C intelligent barrier control panel has a perfect design. It has a Safety Loop Sensor Interface (with JUTAI LD-100), Safety infrared Photocell Interface (with Model IR-20), and Traffic Signal light Warning Interface ( with JD112HF-C), this Connection Details Shows how to connect JUTAI signal light, we only need to connect the light to three interfaces G.COM, R Port of BR-C Controller, and take Power Supply directly from the control board. no need for additional external power supply.

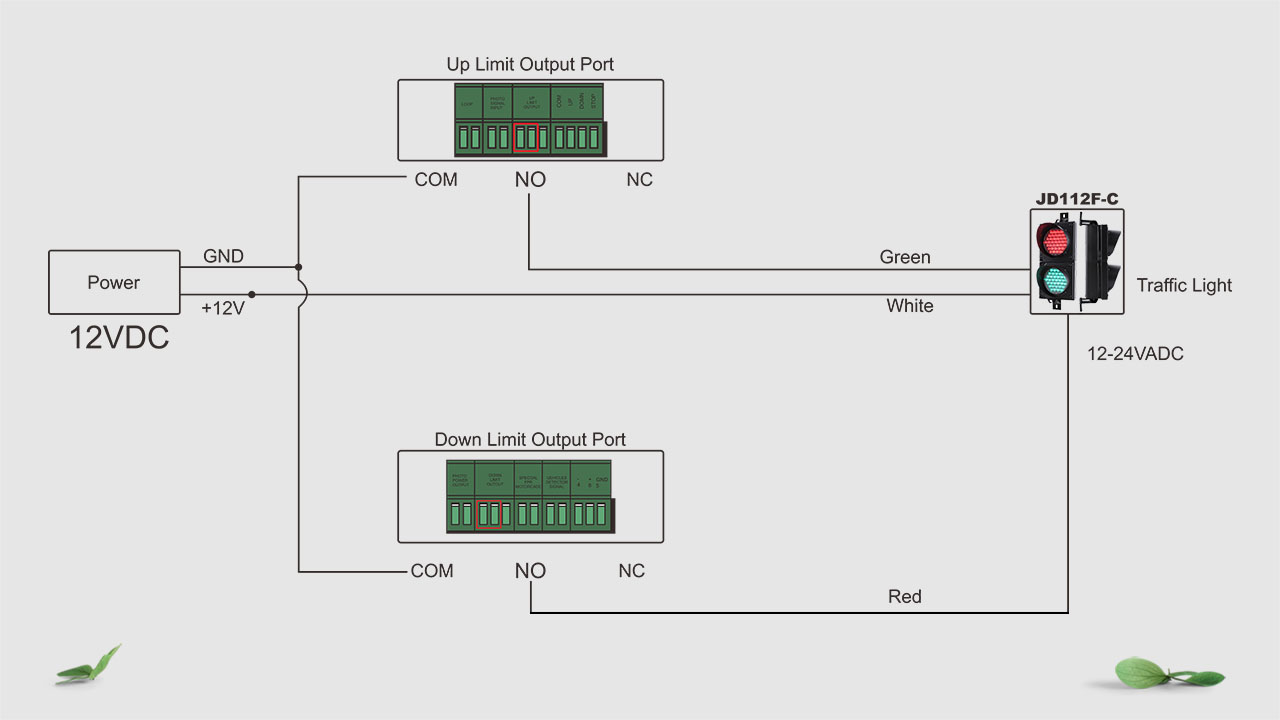

JUTAI 12-24V Traffic Signal Lamp Connection

When connect JUTAI 12-24V Traffic Signal Lamp ,we need to replace connection place and need to prepare Independent power adapter ,details please refer to following connection.

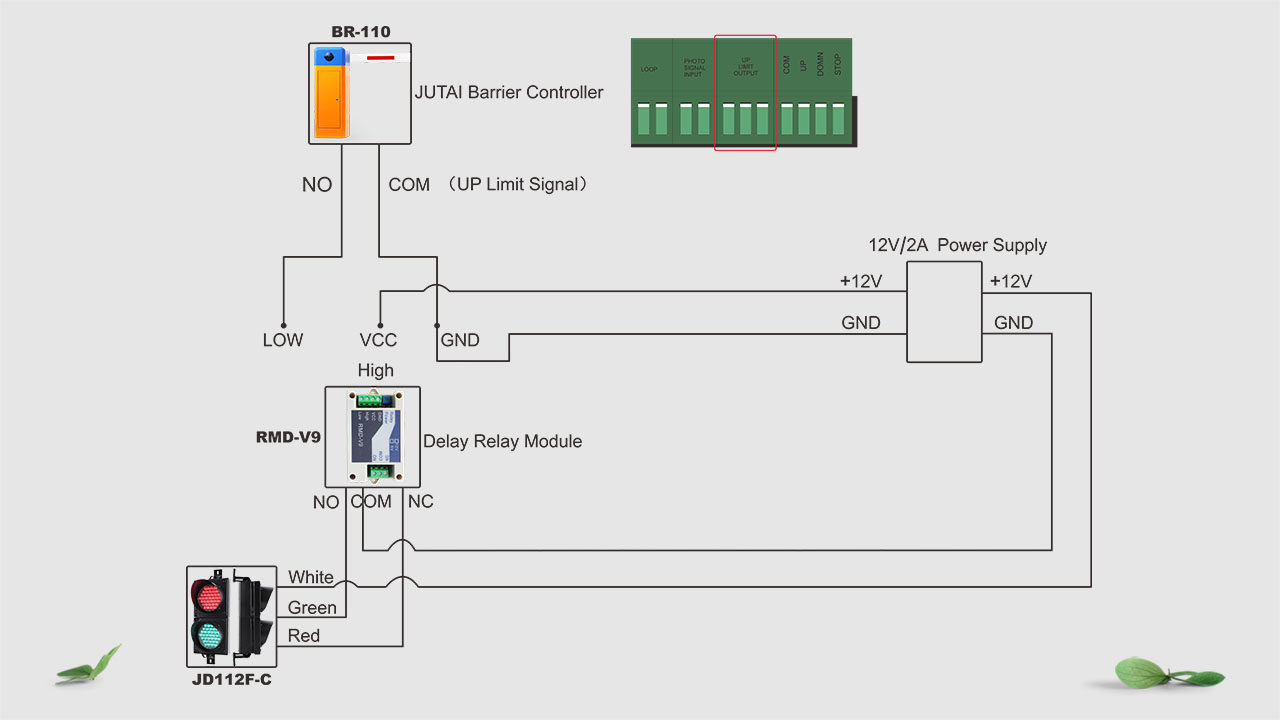

The Third Part Brand Barrier Controller

For the third part of barrier controller manufacturers, there is no specific signal light interface location, we need to use our signal light (12-24V) with the RMD-V9 delay relay conversion board, and prepare a separate power adapter with 12V power supply,connect to the corresponding interface of the barrier, realize the signal warning function.

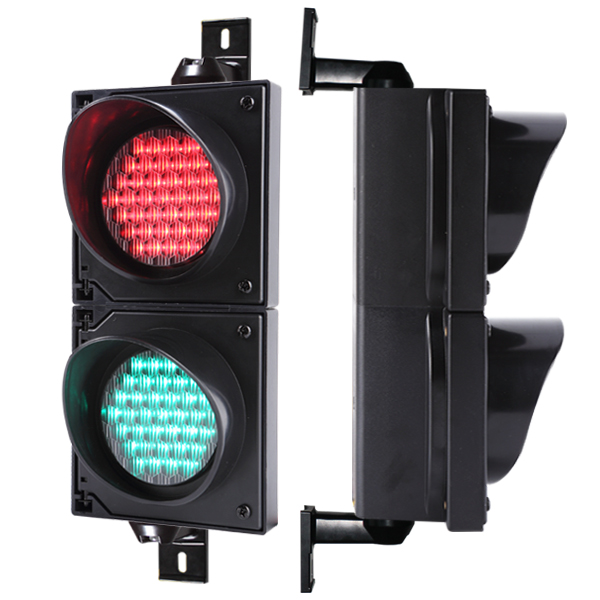

Order Information

The following traffic light suite same application, customers can do selection for the different projects request.
