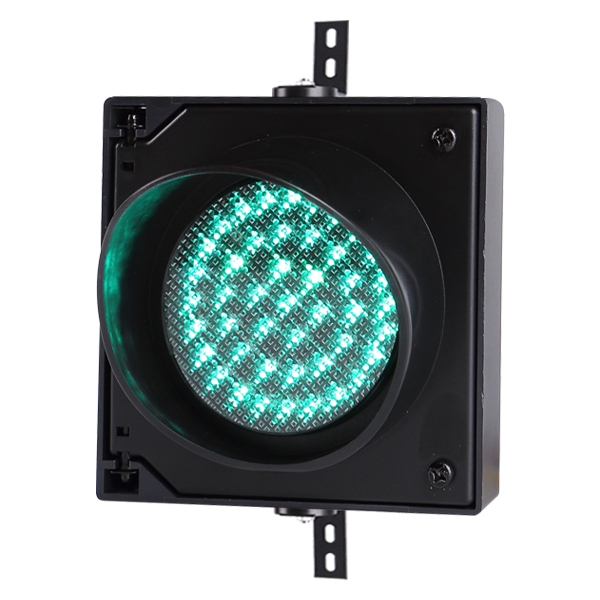

JD111-RG Traffic Indicator

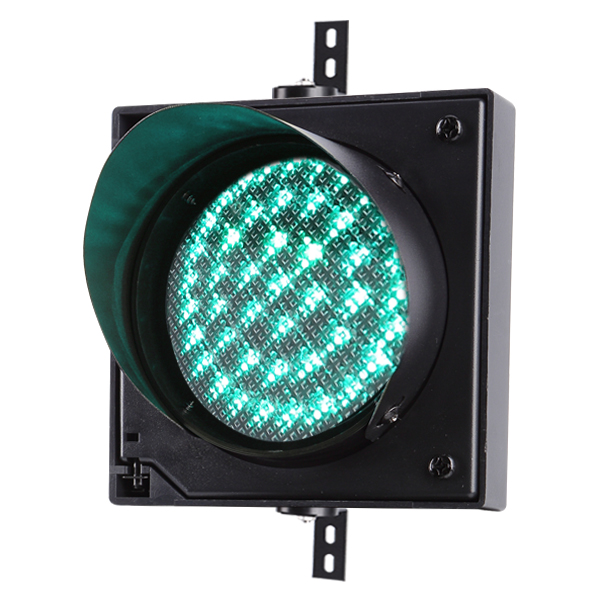

NBJD111-45-G-L-LM
NBJD111-45-G-L-PCM

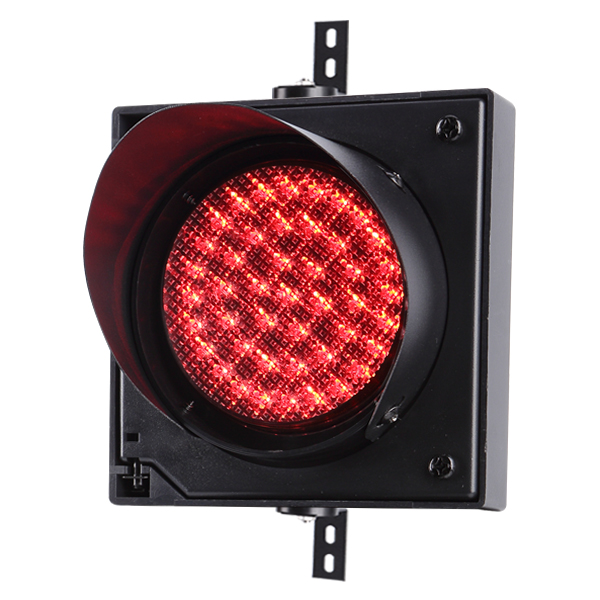

NBJD111-45-R-L-LM

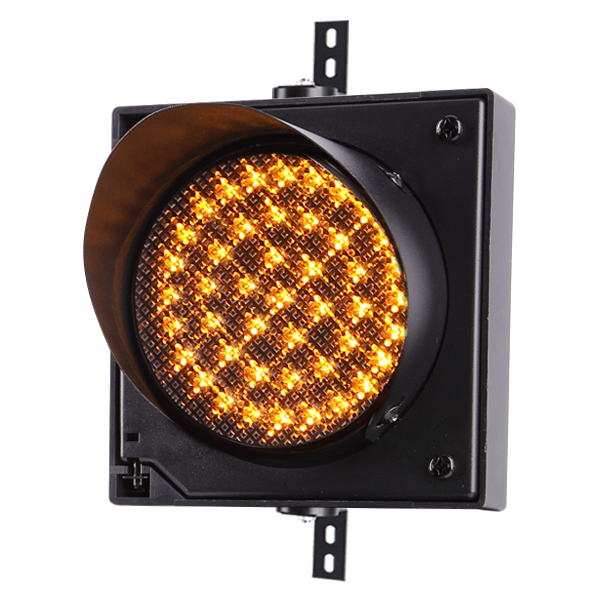

NBJD111-45-Y-L-LM
Previous
Next

Introduction

JUTAI Traffic signal lights are mainly used at lane entrances and industrial doors,
 playing a safety warning role. The signal lights mainly include 100MM single light
with red and green dual color, 100MM LED signal light, 100MM high flux signal light,
200MM led signal light, 200MM high flux signal light, LED signal lights have a one-year warranty, and high flux signal lights have a five year warranty.

Application

Taking parking access control application as an example, its working principle is that when the barrier gate is fully opened, the green light is on, and when the barrier gate pole starts to descend to fully closed, the red light is on, indicating that traffic is prohibited during the process of lowering the barrier gate arm, thus playing a good safety warning role.

Download
Order
Facebook
Twitter
Youtube

Description Of The Product

JUTAI BR-C intelligent barrier control panel has a perfect design. It has a Safety Loop Sensor Interface (with JUTAI LD-100), Safety infrared Photocell Interface (with Model IR-20), and Traffic Signal light Warning Interface ( with JD112HF-C)



Features

  • Shape:100mm (4”)
  • High brightness LEDs with integrated optics
  • Moisture and dust tight seal:IP65
  • Total Harmonic Distortion<20%
  • OperatingTemperature Range(optional):-20℃ ~ +60℃
  • Angle:Avg. ≥30° Down ≥30°
  • Operating voltage Range:85~265VAC
  • Insulation Resistance:≥2M
  • Life:100,000H
  • Housing material:PC



Characteristics

Model Number Size(mm) Profile Voltage(VAC) LEDs Color Typical Wattage at 25℃ Luminance
(cd/㎡)		 Typical
Dominant
Wavelength
(nm)
JD100R-1 100 Round 85~265 VAC 45s Red <5 >1000 625
JD100G-1 Green <5.5 >1000 500

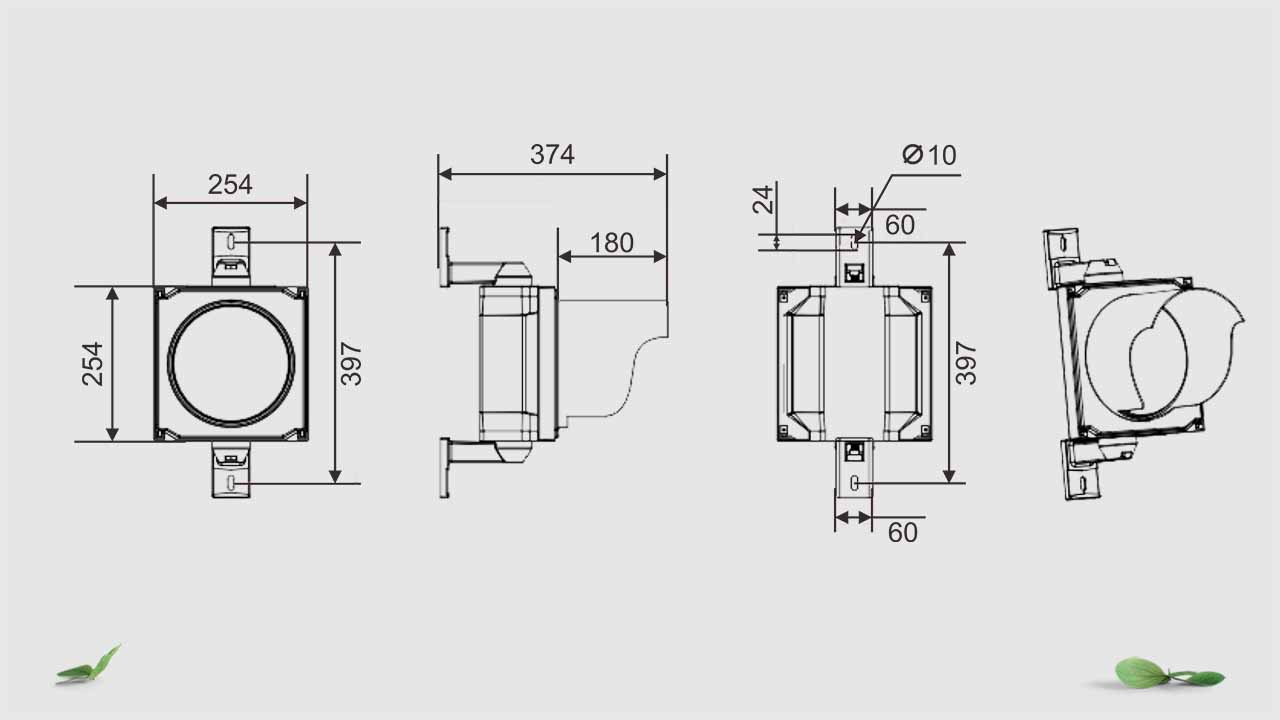

Size:Unit:(inch:mm)



Connection Details



JUTAI 110-240V Traffic Signal Lamp Connection

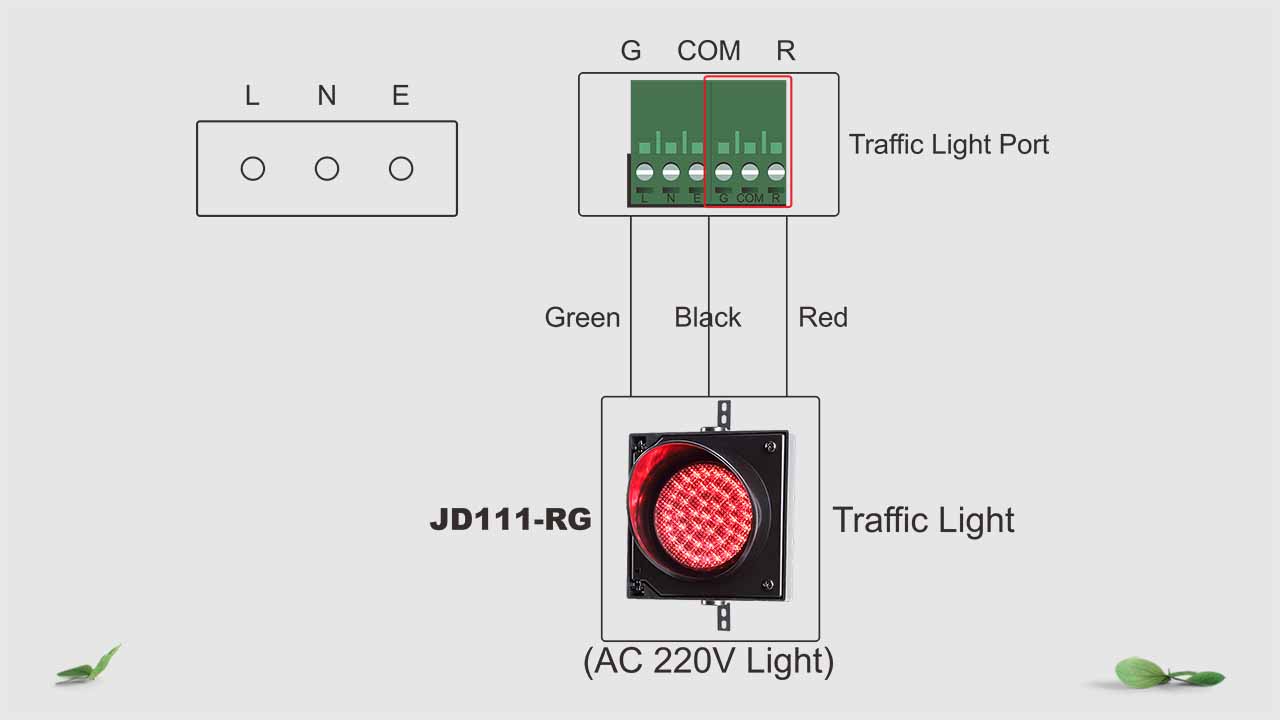

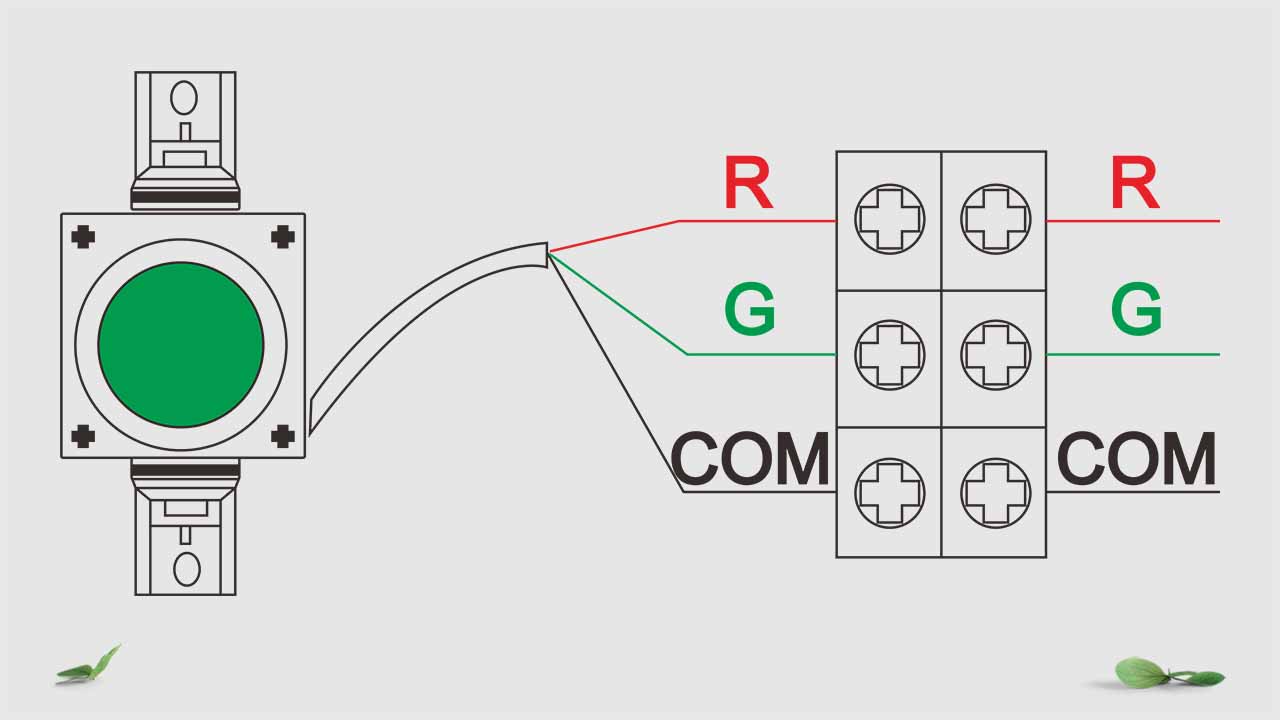

JUTAI BR-C intelligent barrier control panel has a perfect design. It has a Safety Loop Sensor Interface (with JUTAI LD-100), Safety infrared Photocell Interface (with Model IR-20), and Traffic Signal light Warning Interface ( with JD112HF-C), this Connection Details Shows how to connect JUTAI signal light, we only need to connect the light to three interfaces G.COM, R Port of BR-C Controller, and take Power Supply directly from the control board. no need for additional external power supply.





JUTAI 12-24V Traffic Signal Lamp Connection

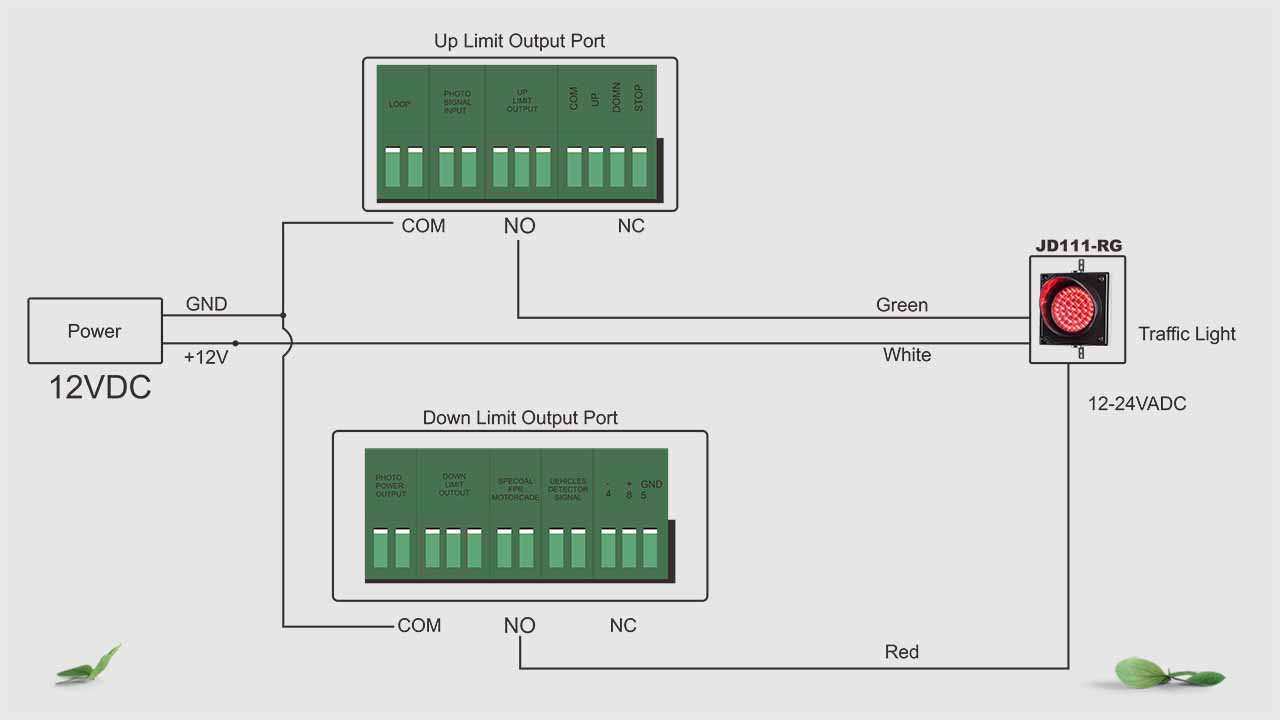

When connect JUTAI 12-24V Traffic Signal Lamp ,we need to replace connection place and need to prepare Independent power adapter ,details please refer to following connection.



The Third Part Brand Barrier Controller

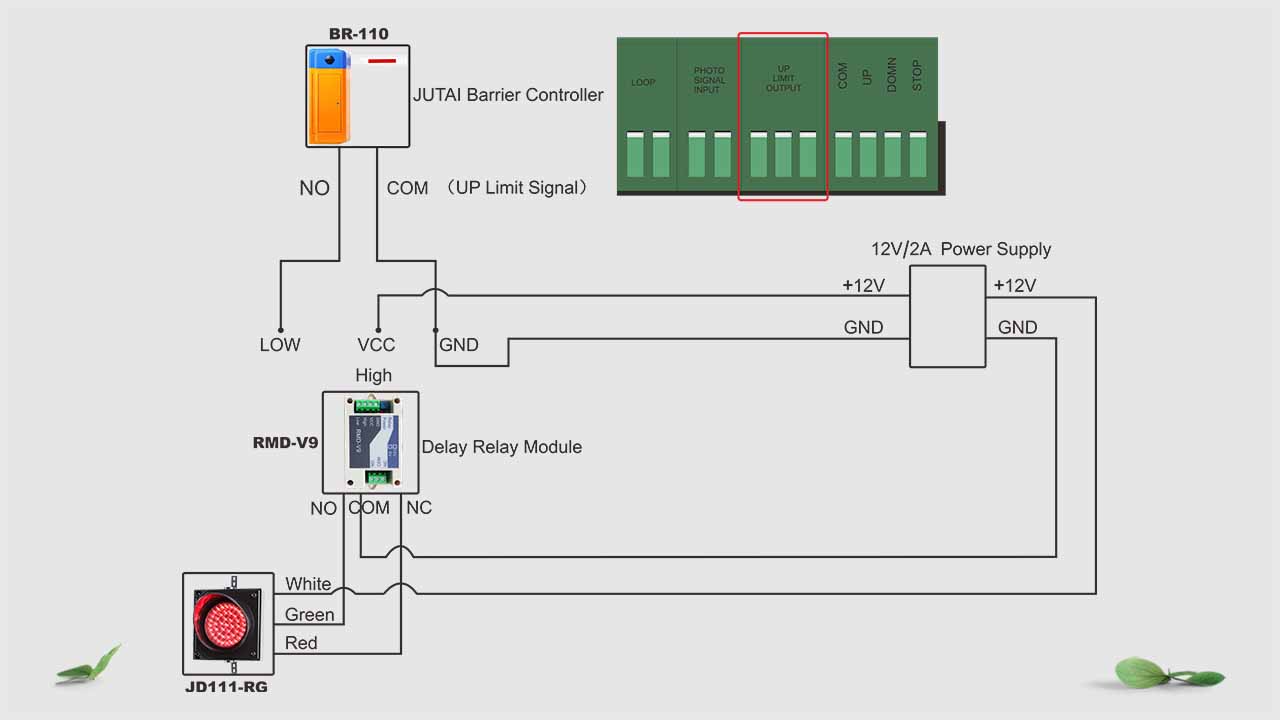

For the third part of barrier controller manufacturers, there is no specific signal light interface location, we need to use our signal light (12-24V) with the RMD-V9 delay relay conversion board, and prepare a separate power adapter with 12V power supply,connect to the corresponding interface of the barrier, realize the signal warning function.
