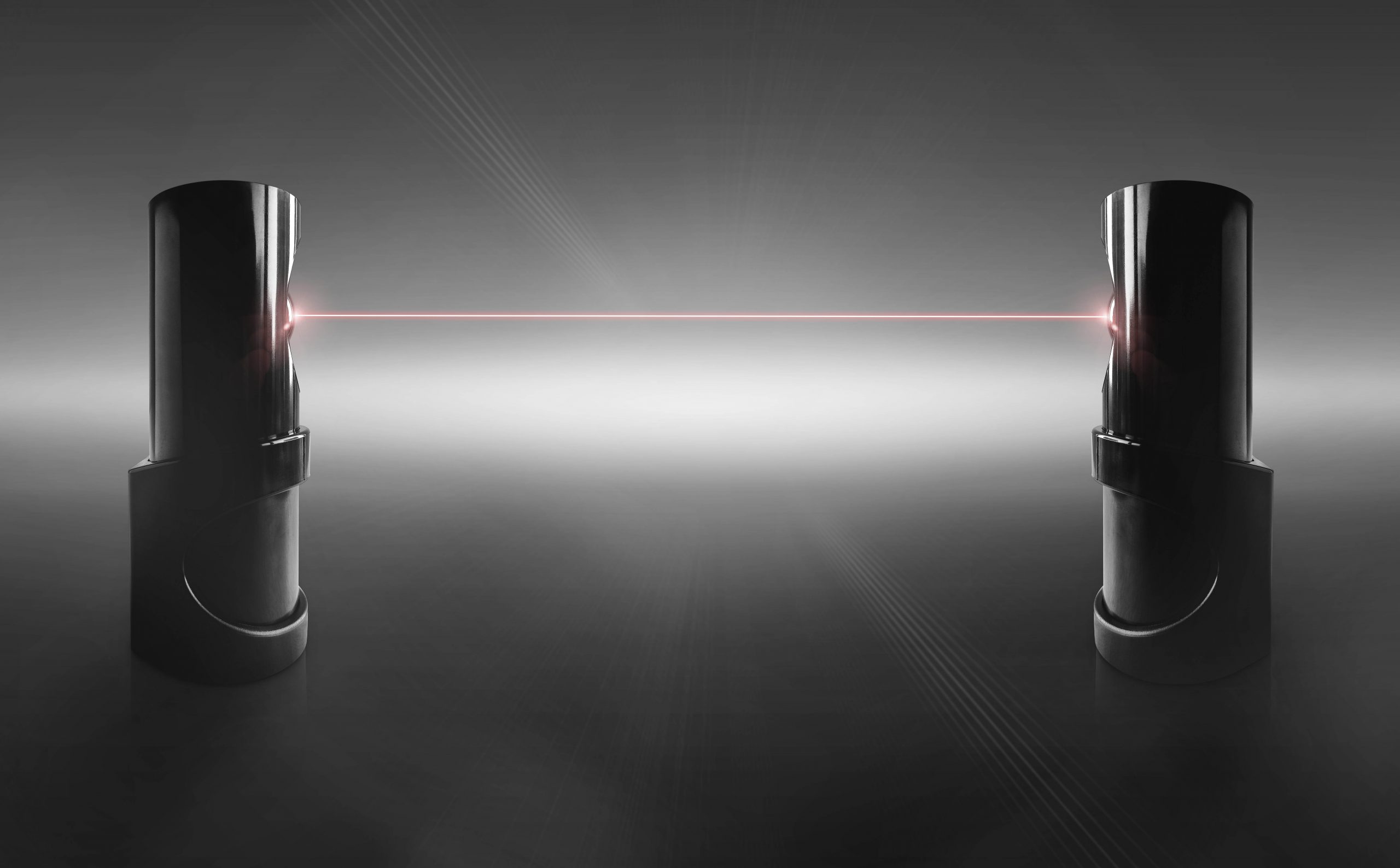

External Rotation Wireless Infrared Beam Sensor
IS-30R external rotation infrared gate safety beam with a wireless transmitter and there’s no need to tunnel under the driveway, With external rotation 180 degree, Simply rotational align, More convenient and safe for door automation!
Why choose our IS-30R?

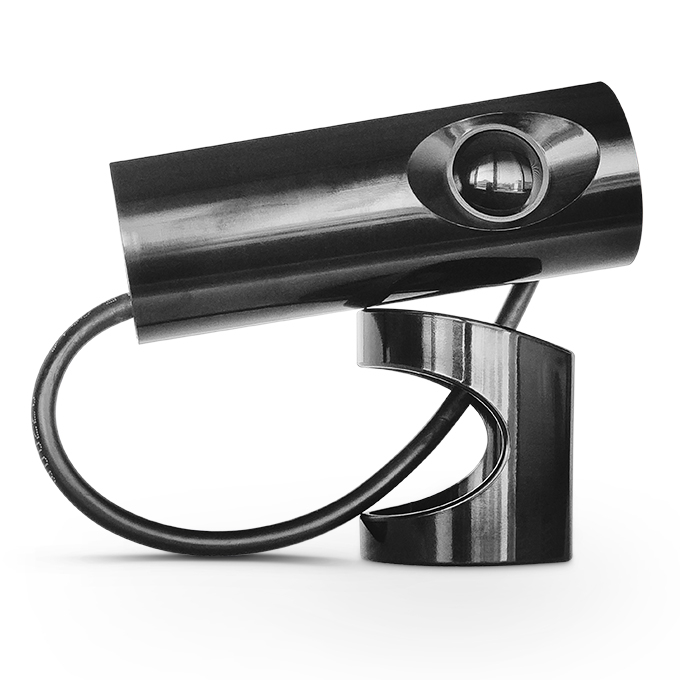

1.180 Degree External Rotation Align
IS-30R most outstanding feature is 180 degree external rotation, you can only adjust it with 180 degree, easy installation and more convenient for some special project sites.
2.Low Power Consumption
The wireless transmitter photocell requires only two AA batteries (not included in the kit) two years of reliable operation. Low current-draw throughout the system means greater efficiency and a longer battery life, so you’ll have reliable automated gate safety for years to come.
3.Highly Cost-effective
One can’t put a price on safety – but you’ll be happy to know that IS-30R photocells deliver a highly cost-effective detection solution. With these photocells installed, your gate won’t break your car and it won’t break the bank either!
4.Compatible With Any Brand Gate Operator
The IS-30R photocells are compatible with supply voltages from 12V to 30V DC. These versatile beams can be used on almost any gate or access automation equipment found in the market.

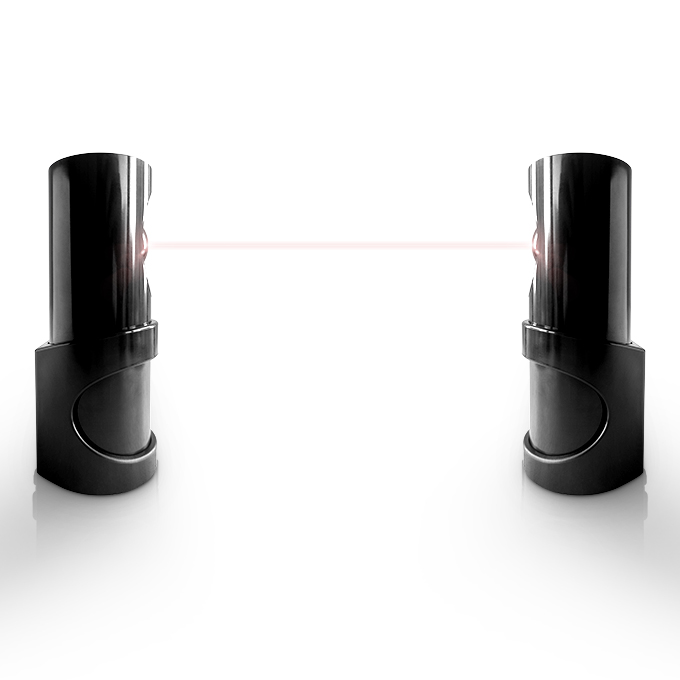

5.Long-distance Performer
Our wireless safety photocells with a 30 metre operating range, IS-30Ris suitable for even very wide entrances. No matter how big the entrance, IS-30R is an ideal for virtually any entrance gate.

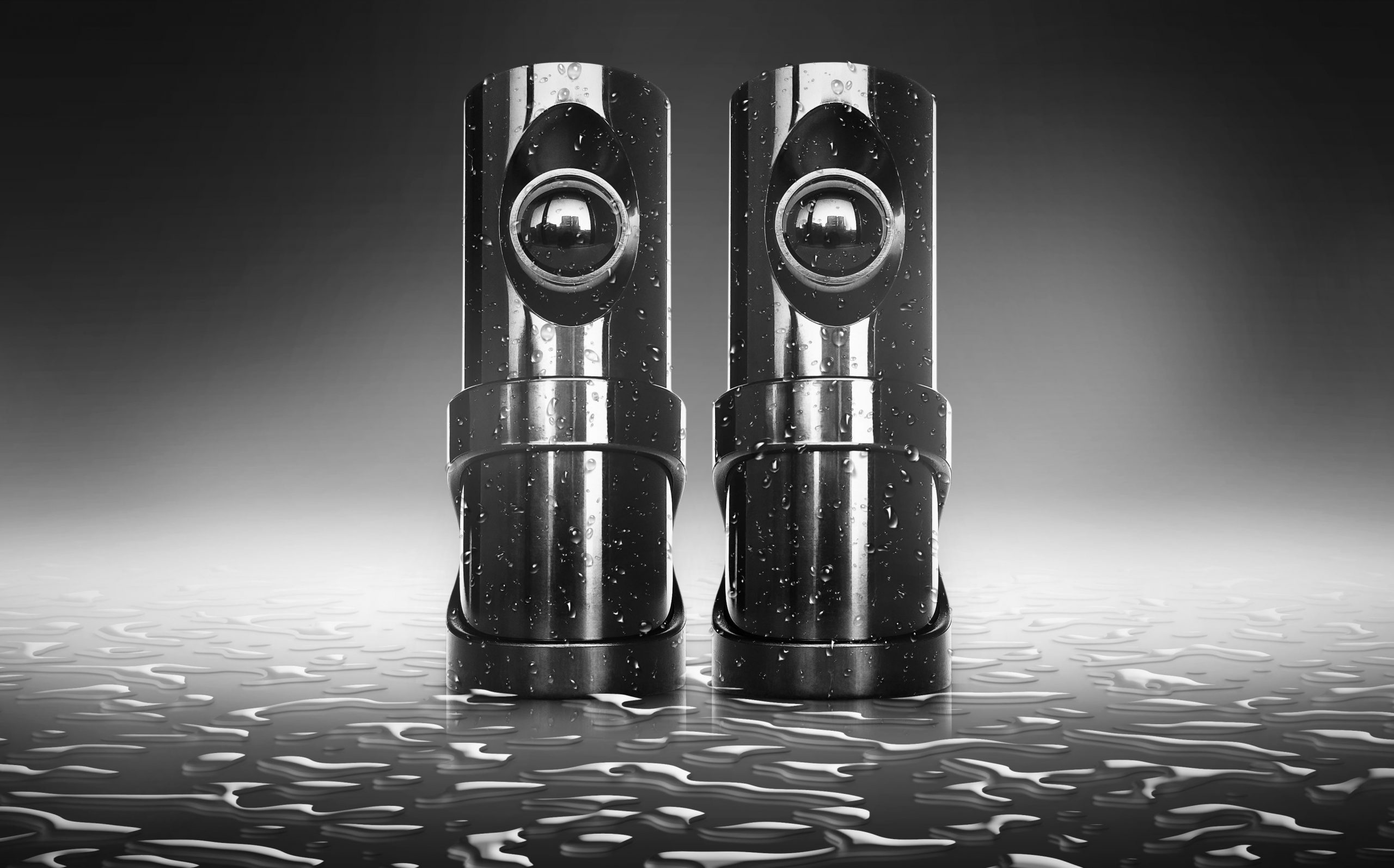

6. Fully Weatherproof Enclosure
IS-30R photocells fully weatherproof enclosure ensures that the electronics will never bear the brunt of the weather.
7. Suitable For Universal Installations
Automatic sliding gate, swing gate, garage door, pedestrian door, industrial door, Boom Gates, Alarm System, warehouse monitoring etc. Anti-theft of automatic gate translation door switch induction signal/door, windows. No more cutting driveways to run cables required, perfect to retro fit on existing installations.
8. Flexible Business Model
We are very willing to help our customers to develop their own brand and assist customers in their local marketing. And not only wireless photocell sensor, we will further develop a series of high-quality products around the automatic door and villa security solutions. And to help customers promote at local marketing and form customer’s own brand ,help our create more and more benefits, growing up together.

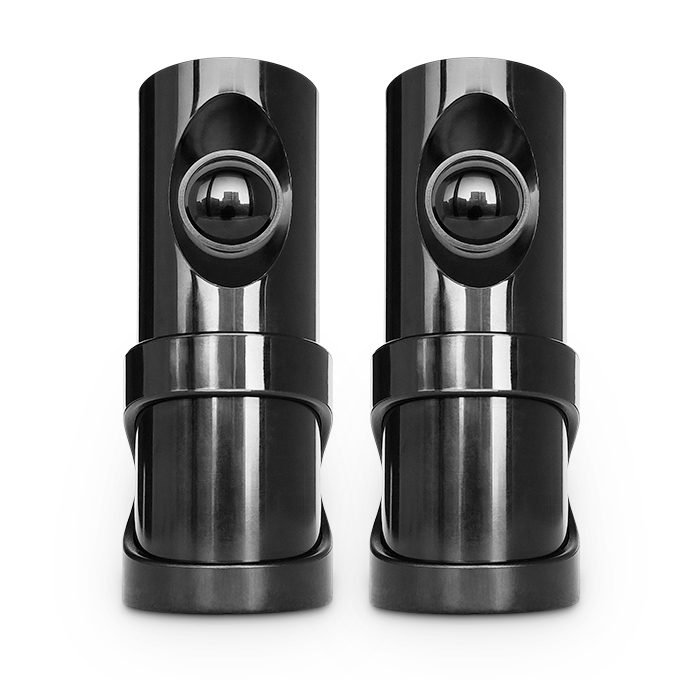

IS-30R External Rotation Infrared Safety Beam Specification
| Power Supply Transmitter | 2 x AA Alkaline Batteries, Only replace with alkaline batteries; do not use rechargeable batteries with this product |
| Receiver | 12 – 24V AC 12 – 30V DC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic – 1m² @ 10m (circular area – assumes parallel surface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C – +60°C |
| Operating Humidity | 0 – 90° Non-condensing |
| Degree of Protection | Ip66 |
| Housing Material | PC(UV) |
| Size | 113*46.79*47.72mm |

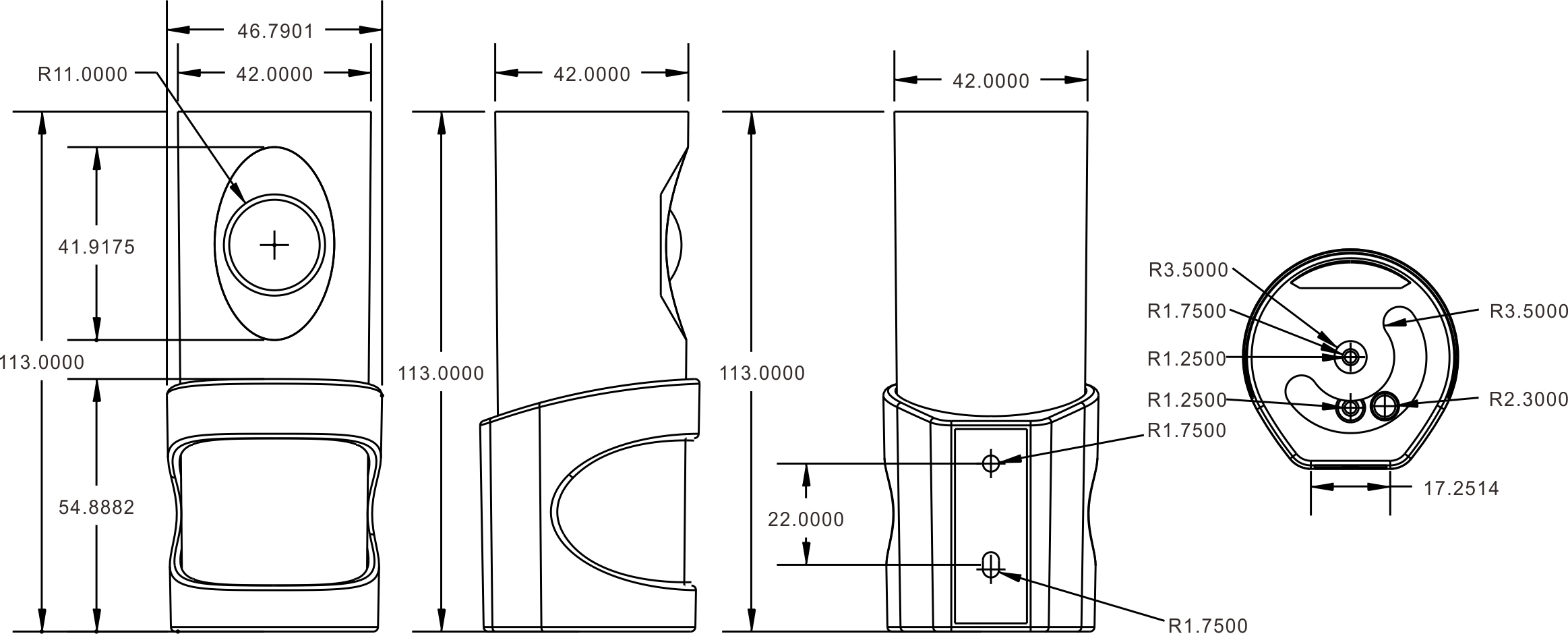

Size(mm)
Connection Details

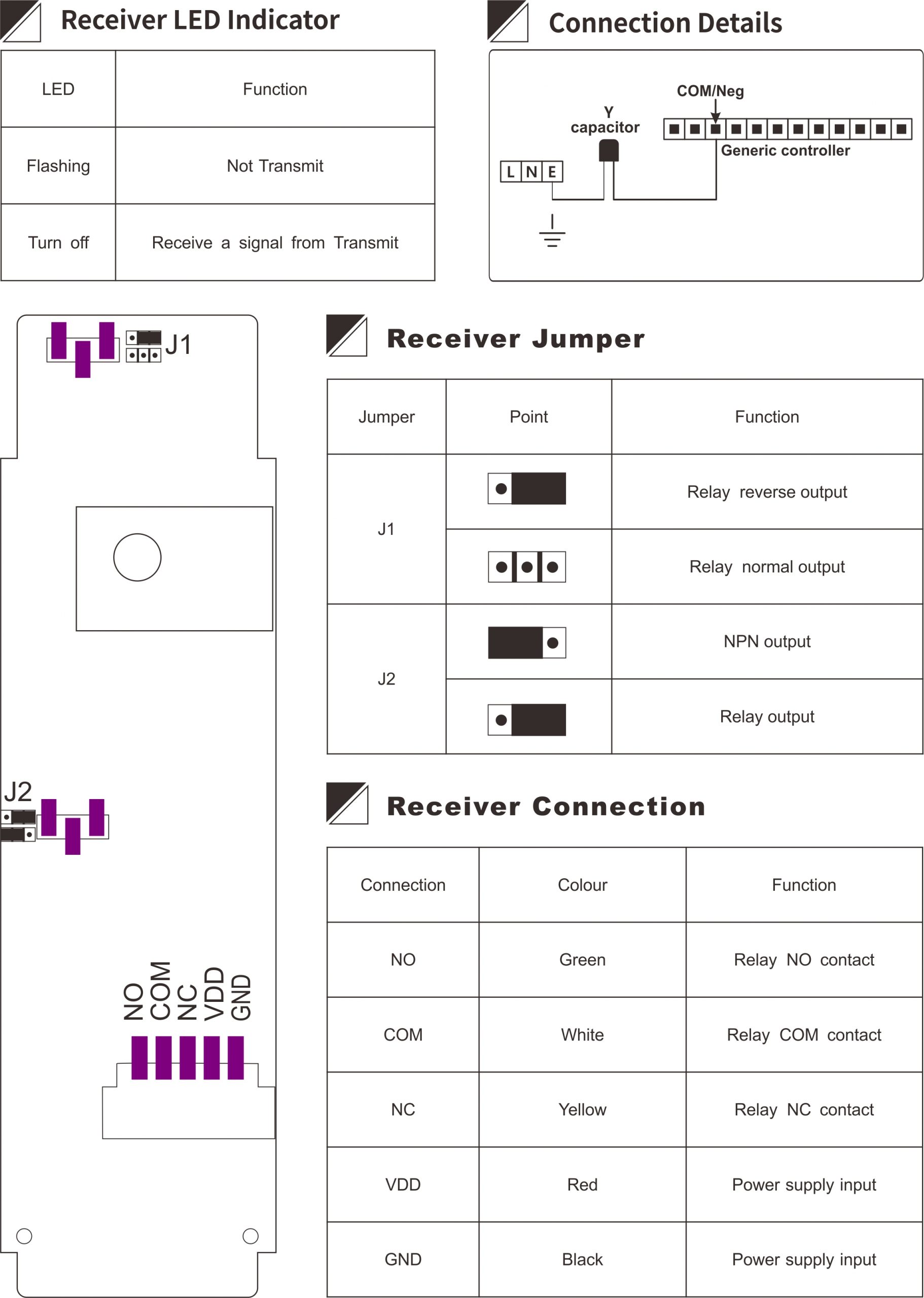

JUTAI IS-30R Wireless Rotate Type Photocell, the following figure is the detailed function setting of the receiving end, we can set the normally open signal or normally closed signal by setting the jumper cap, and the working status of the indicator can also clearly check the infrared beam working condition;

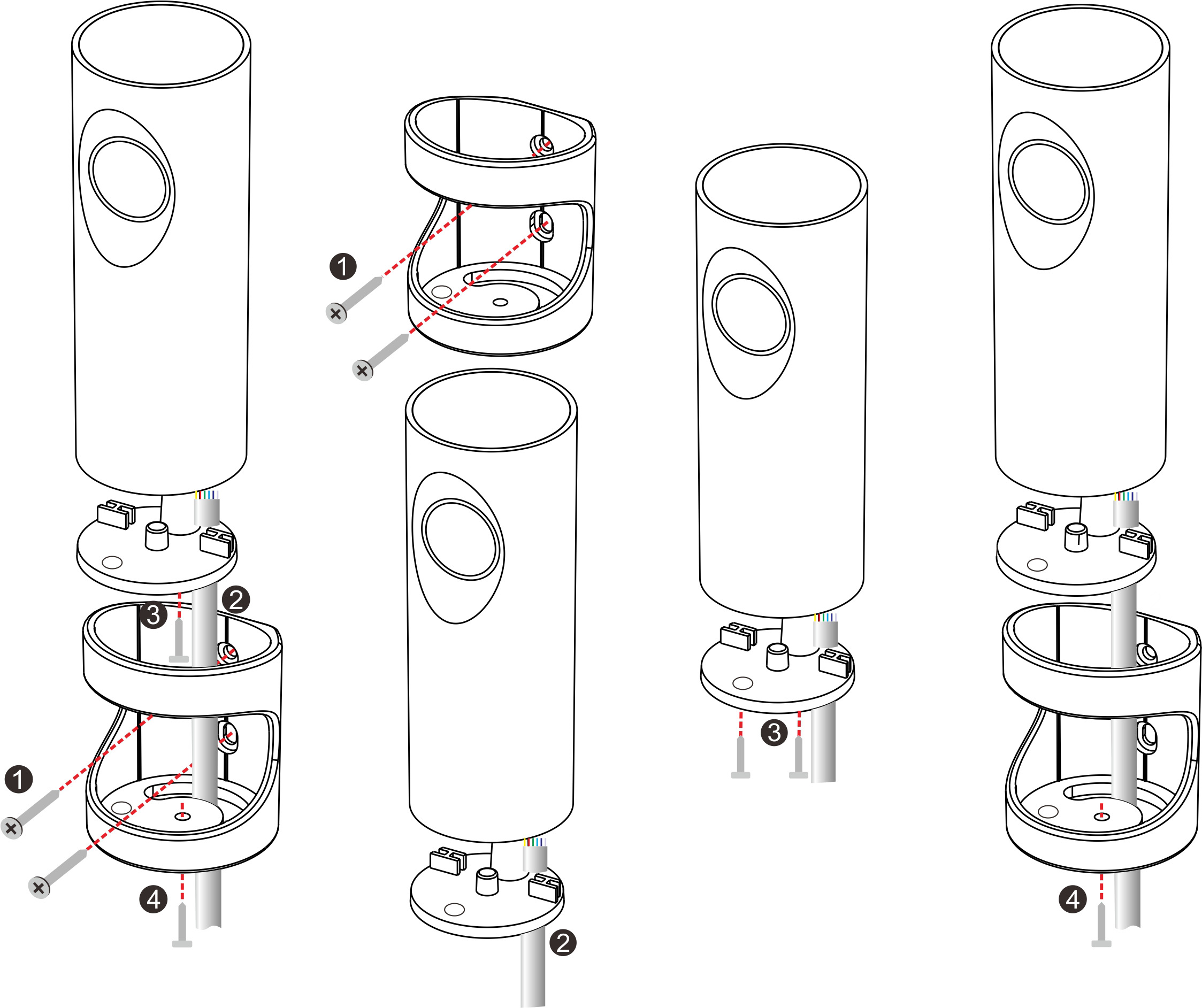

How To Install JUTAI IS-30R Rotate Type Photocell?
1.Transmiter and Receiver fixed base horizontally aligned, fixed to wall with 3*25 screws；
2.The connecting wire passes through the infrared bottom cover；
3.Lock the infrared base cover with 3*8 screws；
4.Adjust the transmiter and receiver angle, then fix with the cover with screws 3*8.
5.Install video reference link:https://youtu.be/DMYpN2qhGMU

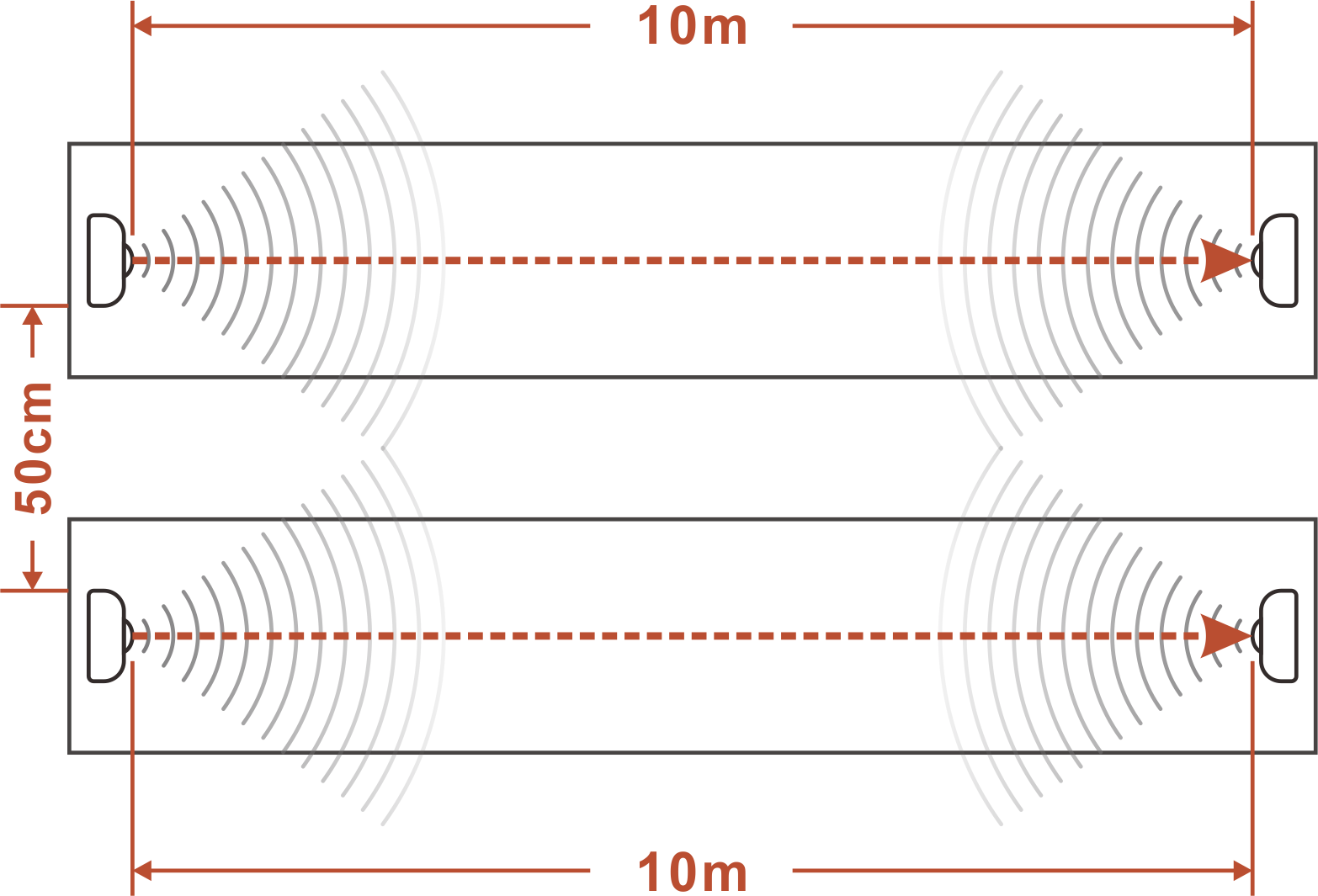

Two Pair Photocell Anti-minimum Interference Distance
The minimum distance is 50cm if the RX and Tx of 2 pair photo sensor with 10m detection distance.
JUTAI VS Other Brand

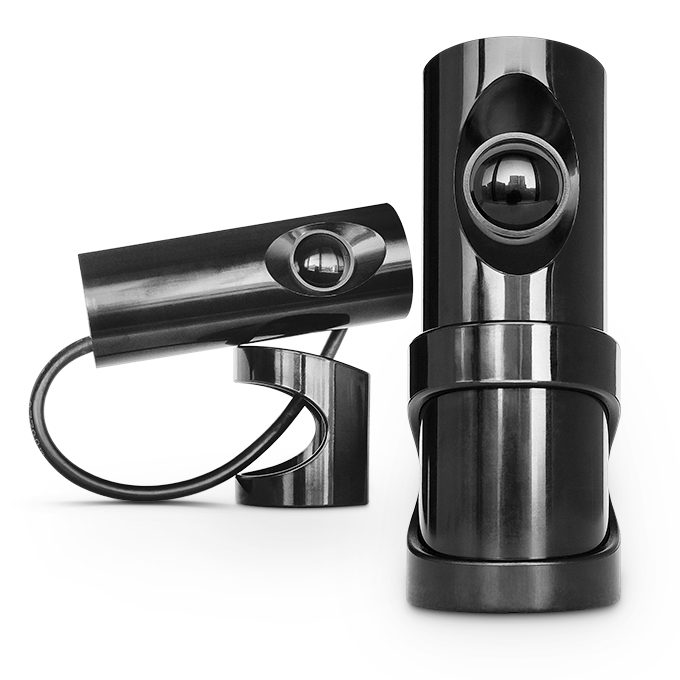

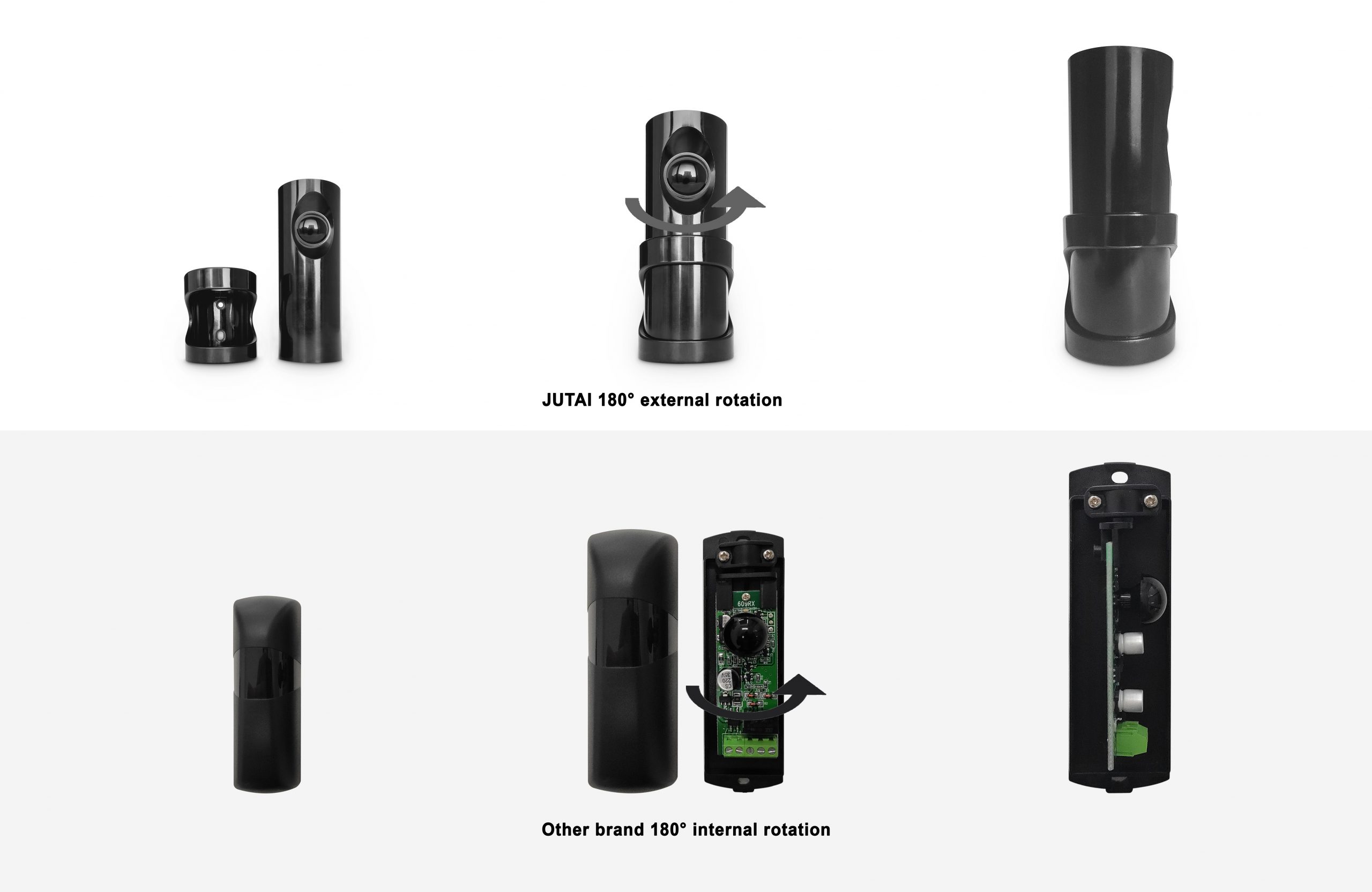

JUTAI IS-30R has won customers’love with its unique appearance design. When installing, adjust the angle without opening the cover, and directly rotate the infrared beam. When it is rotated to a proper angle, the screw on the tail can be locked. For other brands infrared photocell, you need to open the cover to adjust the angle. If the transmitter and receiver are not properly aligned, open the cover to re-calibrate, which increases the inconvenience of installation;
Photobeam Sensor Applications

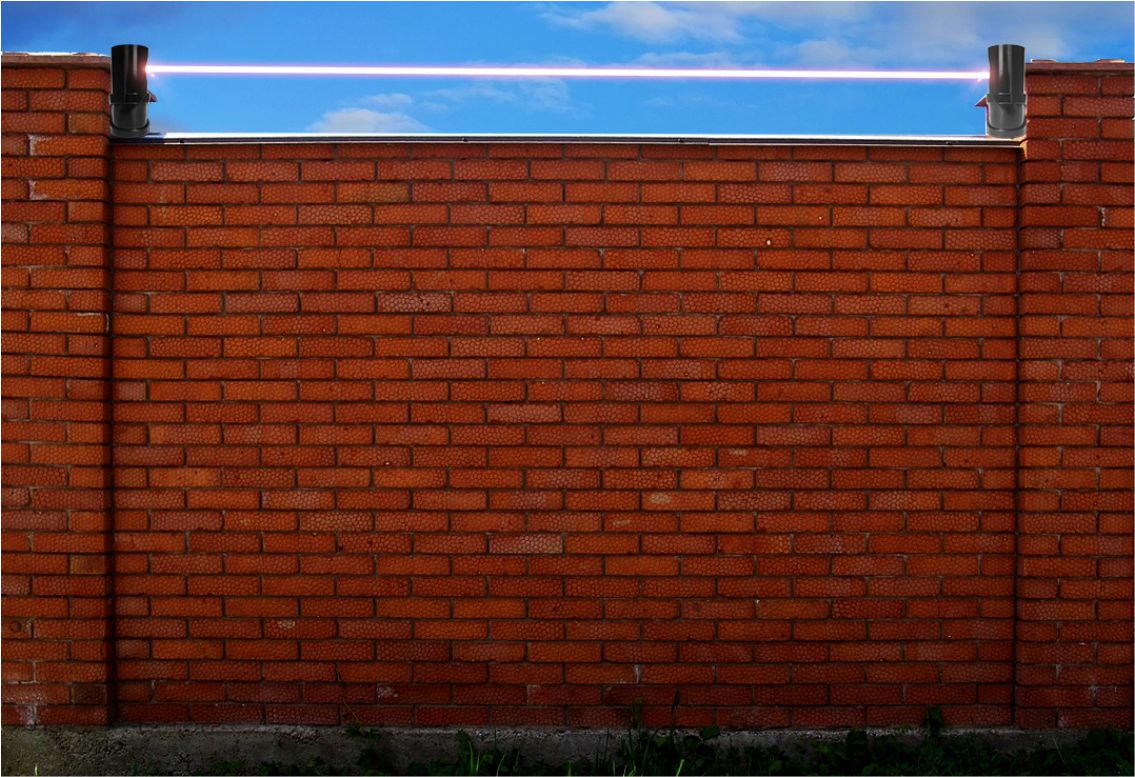

Residentrial Alarm Application

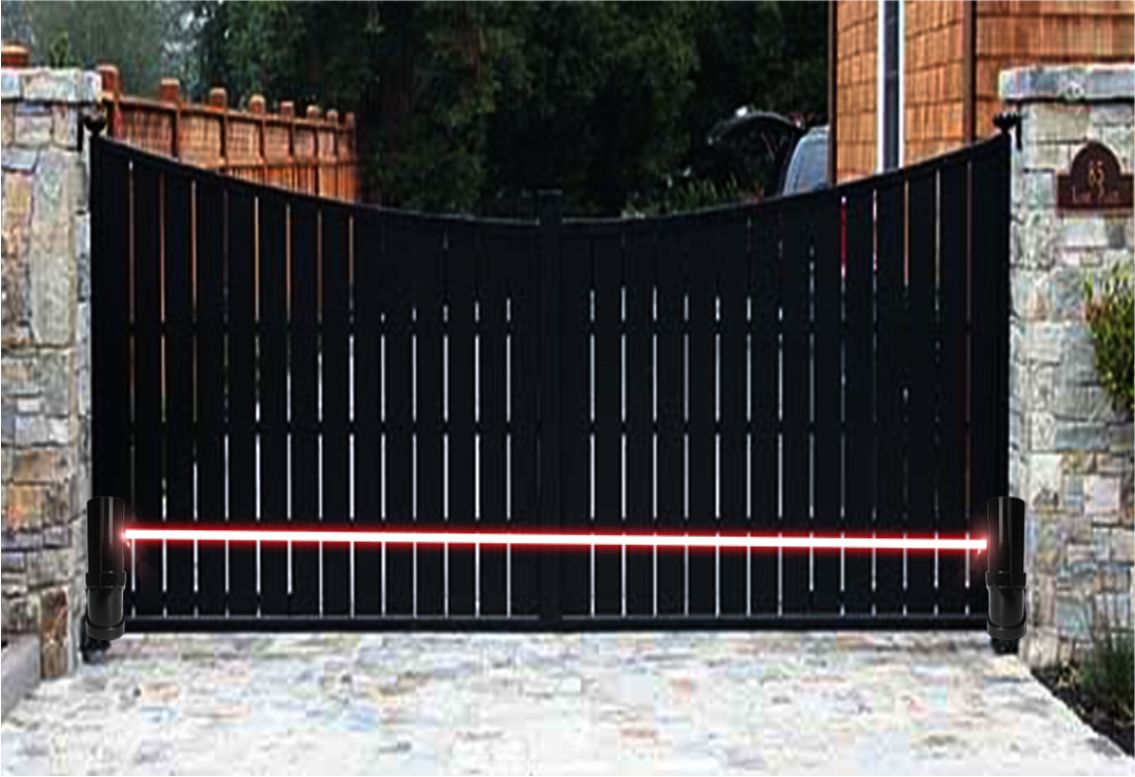

Gate Automation Application(Swiming Gate, Sliding Gate,Garage Door)

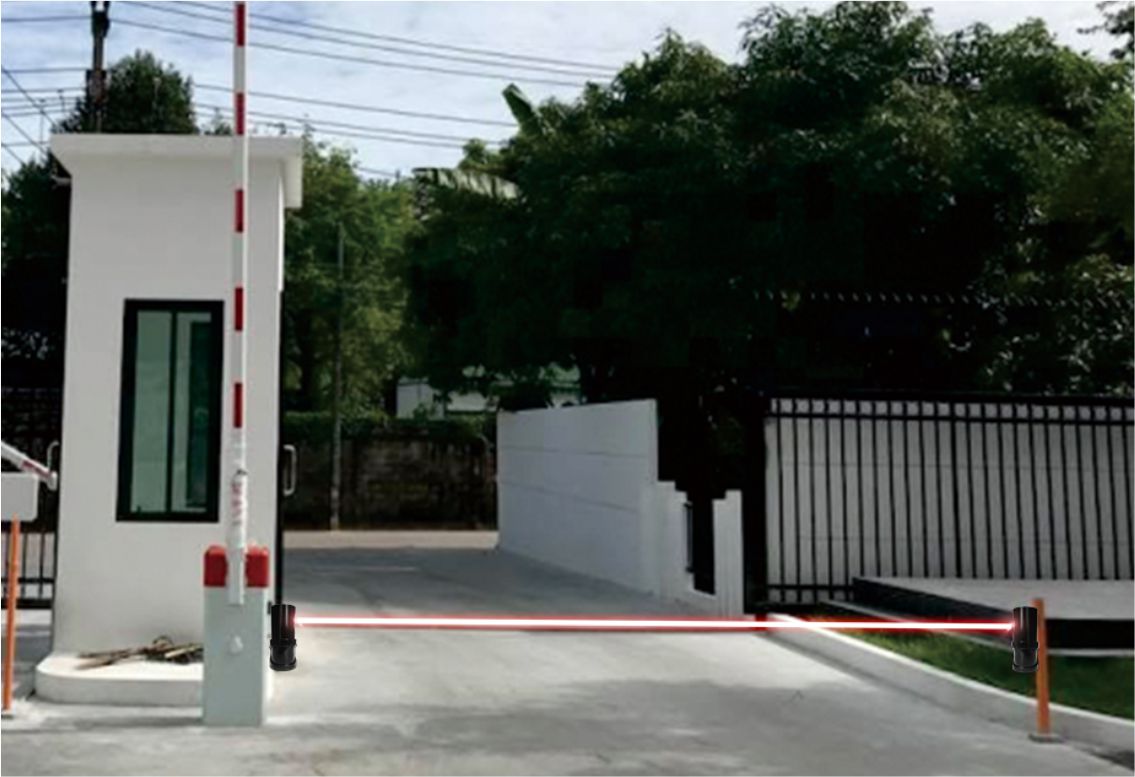

Barrier Gate Application
