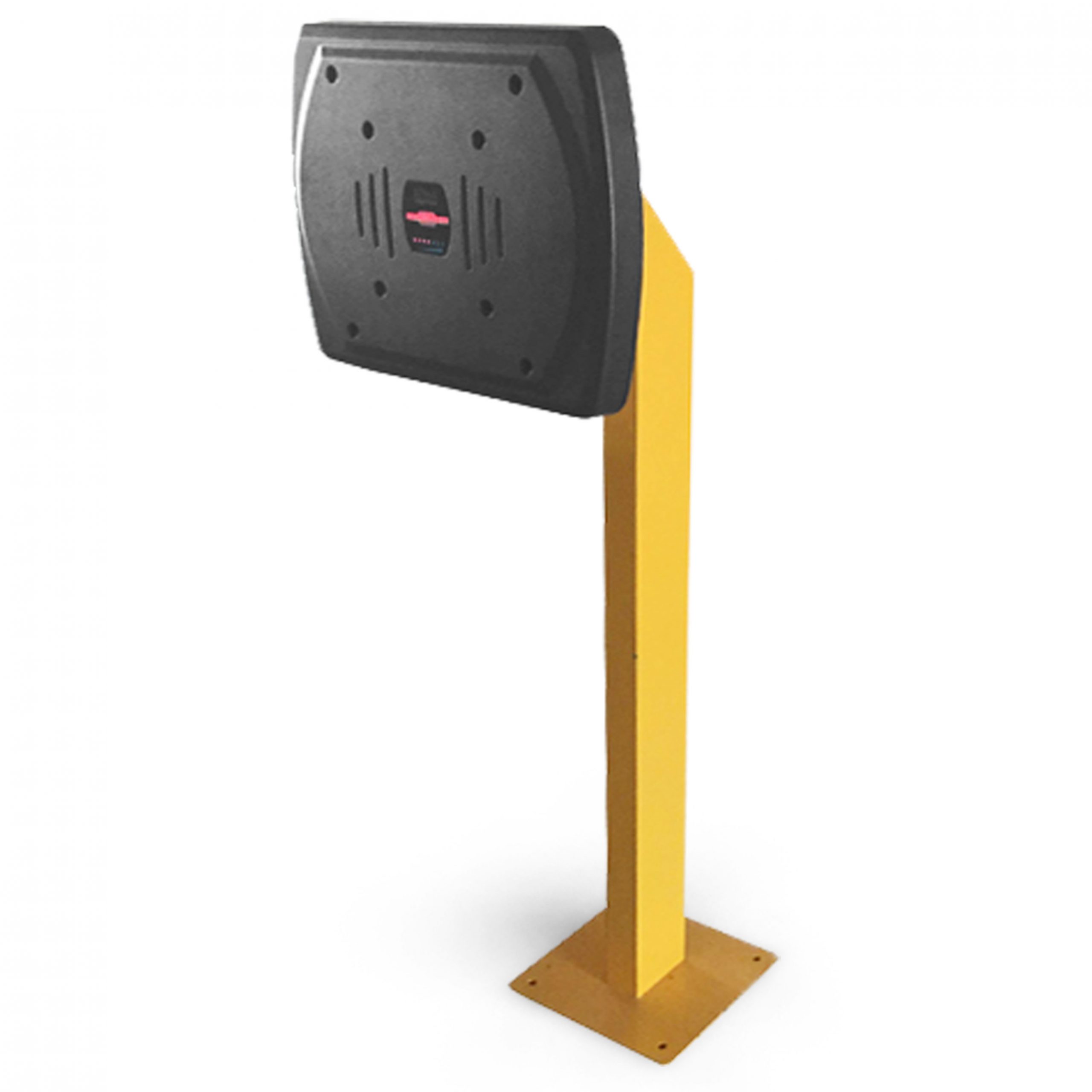

GP99 Long Range Proximity Reader

Introduction

JUTAI 125kHz RFID Long Range proximity reader GP99 with featuring compact dimension .It can read range from 90cm to 130 cm depends on the interference on site. it can effectively penetrate solar film and allows MC-51 proximity card to be read from inside the car without winding down windows. The unit will run an excellent power supply and marking it particularly suited to access control car parking and through-well reading applications.

Ideal solution for car parking access control; residential and commercial building – no more hand getting wet during rainy day and less car robbery risk at entrance.

Features

♦ Can penetrate solar film (V-Kool40)

♦ Auto tuning function to compensate presence of metal and interference

♦ Extended reading range from 90 cm to 130 cm

♦ Bright LED indicators, tuning LED bar

♦ Firmware up gradable in the field

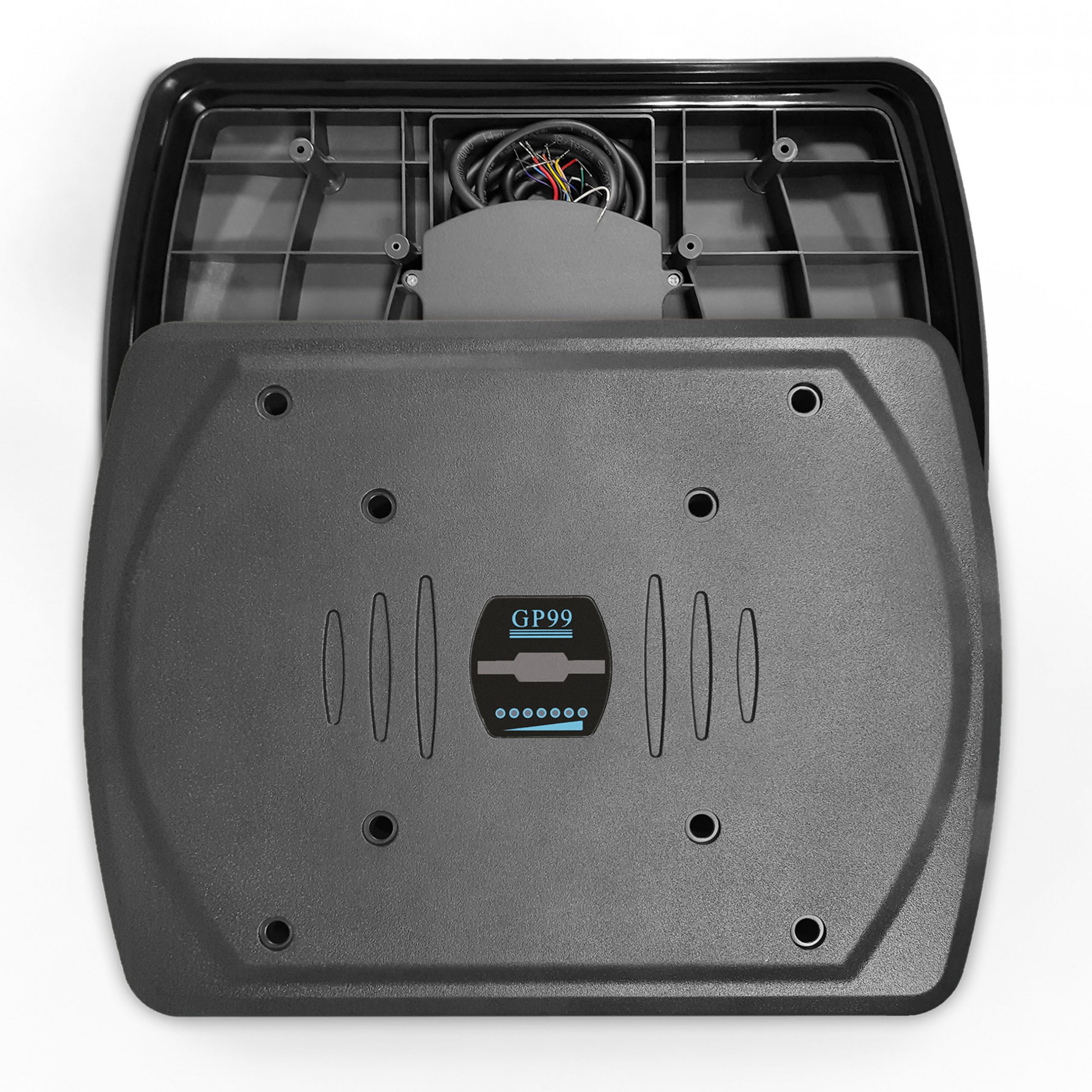

♦ IP-54 waterproof housing design

♦ High-quality power supply with noise filter included

♦ Loop Inductive function optional

♦ Anti-rereading function included

Specifications

Application Examples

♦ Access Control

♦ Car Parking Systems

♦ Through -Wall Reading Application

♦ Personal Identification

♦ Any Long Range Reading Application

♦ Hand Free Applications

Proximity Reader Advantages

♦ Anti-Rereading Function

♦ Anti-Interference

♦ Signal LED Indicators

♦ Loop Inductive Function (Selection)

♦ Ip54 Water-Proof level

♦ Long Service Life

∗ When the card within in the inductive range and card ID be read by one reader, the other reader will not read this card again. This function is main be used for solve the interference problems behind the other reader.

∗ Under the same environment, the reader anti-interference ability is strong, very afflictive external conditions.

∗ Our reader with the IP54 water-proof level, and it can work perfectly in the rainy days, no need the additional accessories, and it can save your cost ,and customers pay less money but can got very good experience.

∗ Our reader has integrate the loop inductive function, it can work with our vehicle loop detector. For some special application, you can connect to the loop detector and when the vehicle on loops, the card can start to work with the reader, which can make the whole system with high reliable and stable.

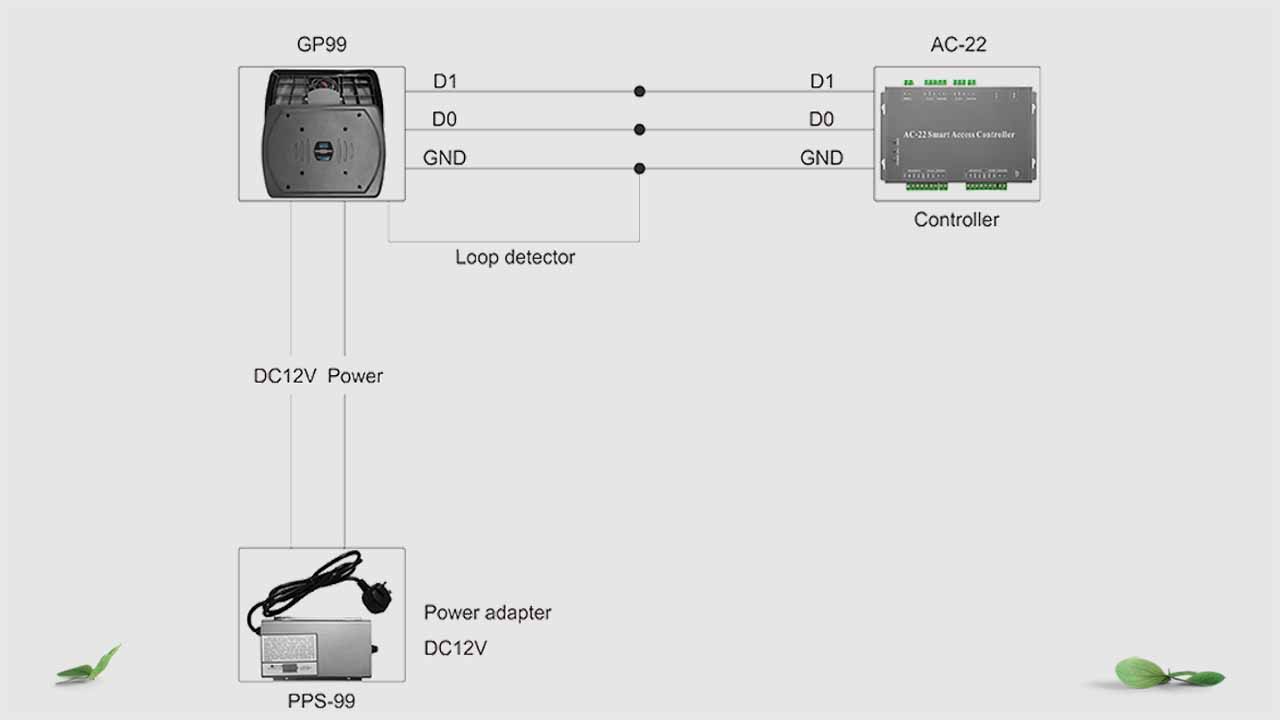

JUTAI GP99 Connection Layout

JUTAI GP99 is used in the access control system. Usually we recommend that customers connec Loop Detector, enable loop trigger function;. When the car triggers the loop coils, the reader starts to communicate with the card, so that the application can prevent misreading of the card. Details connection can refer to the following figure.

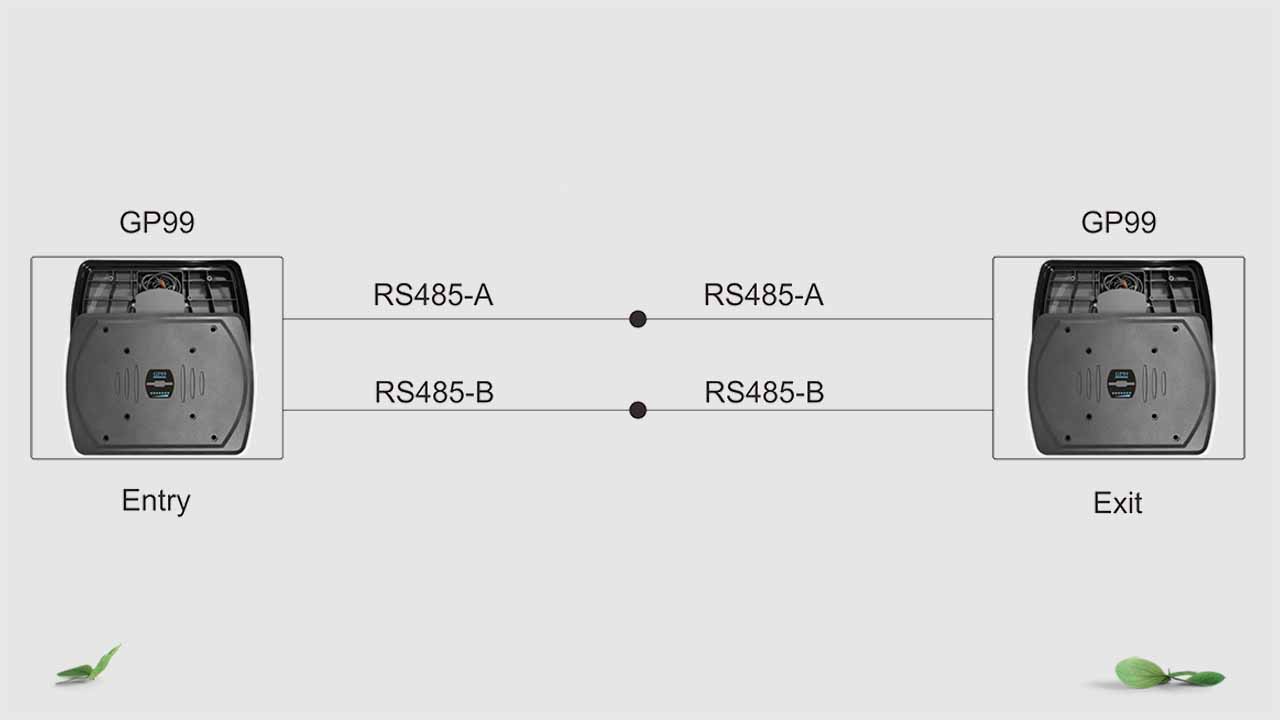

JUTAI GP99 Anti-Reading Connection

In addition, during the actual construction, we will also encounter the situation that the distance between the exit and the entrance reader is very close. At this time, it is possible that the reader at the exit reads the card at the entrance, or the reader at the entrance reads the card at the exit. In order to prevent this Interference, we can short the RS495 cable between two unit GP99 readers; details see the wiring diagram

Successful Project Reference

With the accumulation and development of technology in the RFID field, GP99 has been widely used in access control systems and bus attendance systems in various countries; and with its ultra-long reading distance ,excellent and stable performance Unanimously praised by foreign customers;
