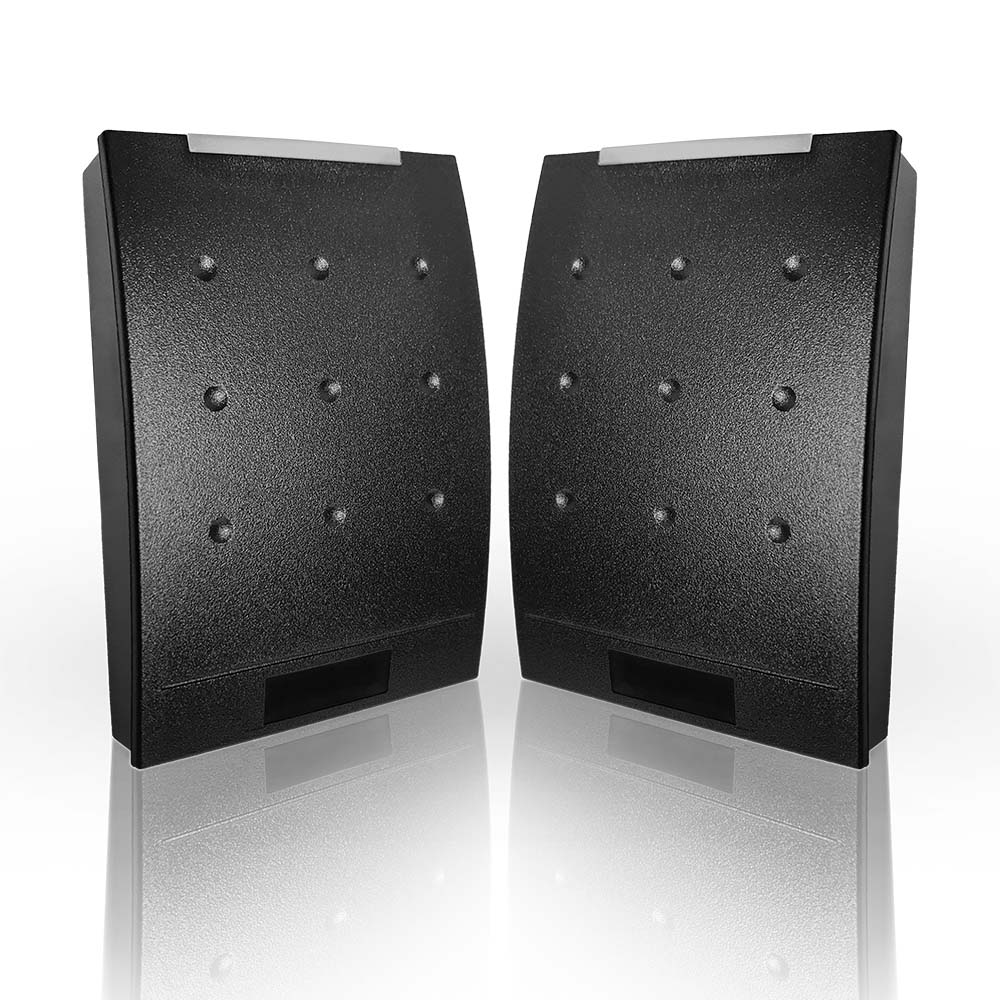

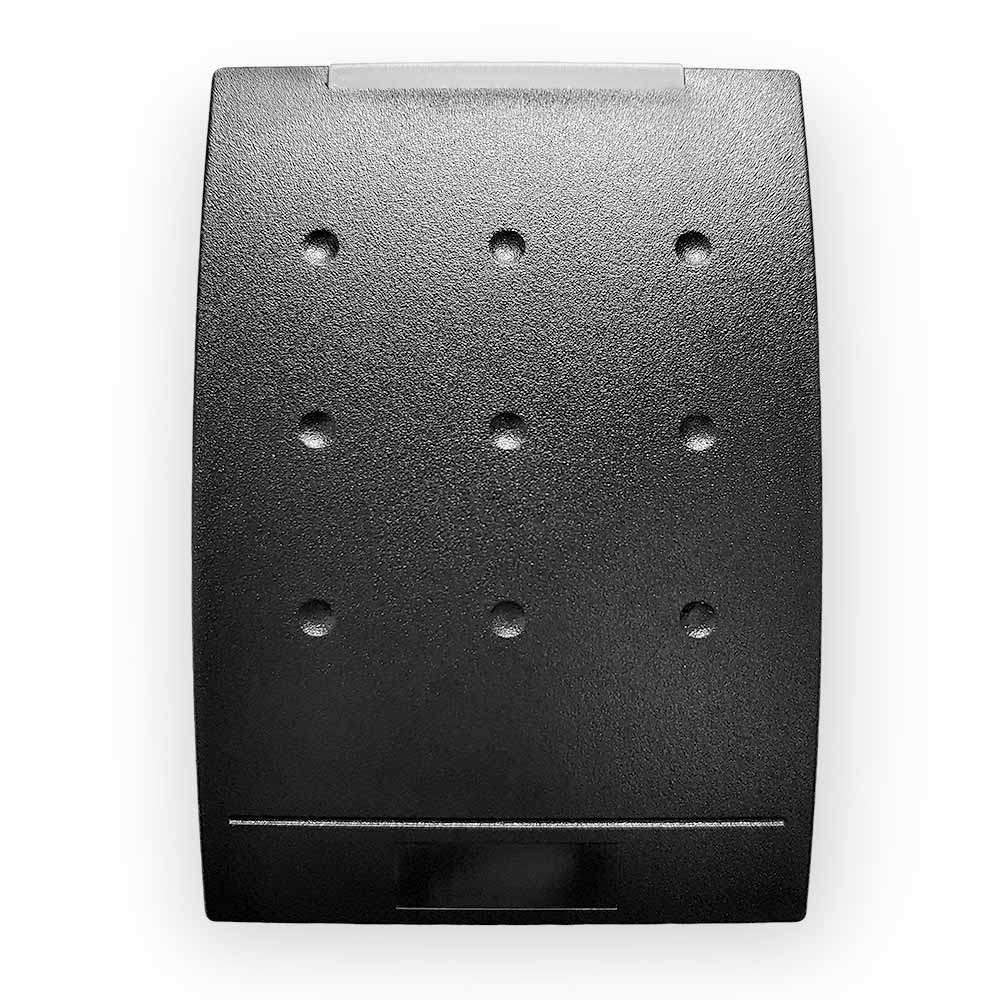

Features
♦ Reading range up to 15cm
♦ With 125KHz low frequency technology
♦ With Weigand 26/34,RS485 data format output which can easy to integrate to different access control system
♦ RFID middle range door access control system,elevator management system,visitor management system,personnel tracking system,vehicle access control system,etc

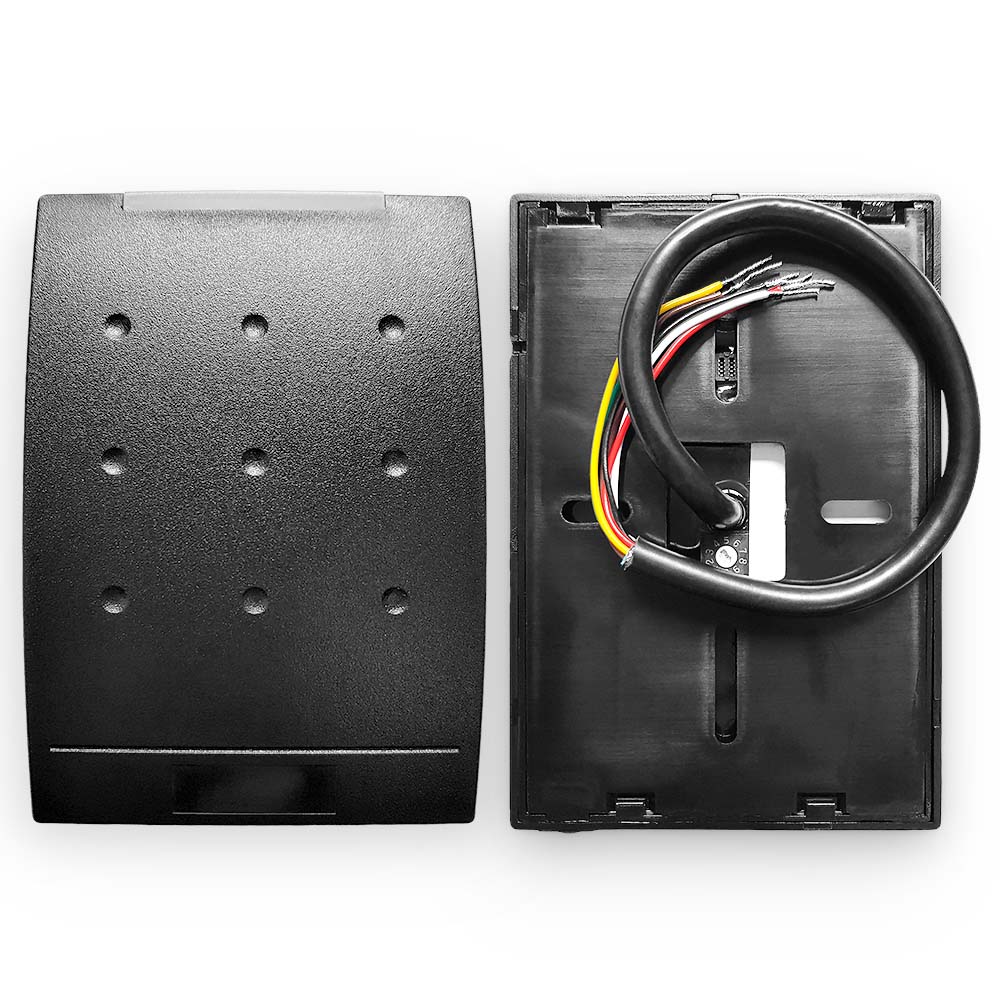

Connection Line Definition
| NO. | Color | Fuctin | Describe |
| 1 | Red | +12V | 12V Power |
| 2 | Black | GND | |
| 3 | Green | D0 | D0(Wigand data 0)output |
| 4 | Yellow | D1 | D1(Wigand data 1)output |
| 5 | White | RS485-A | RS485-A output |
| 6 | Brown | RS485-B | RS485-B output |

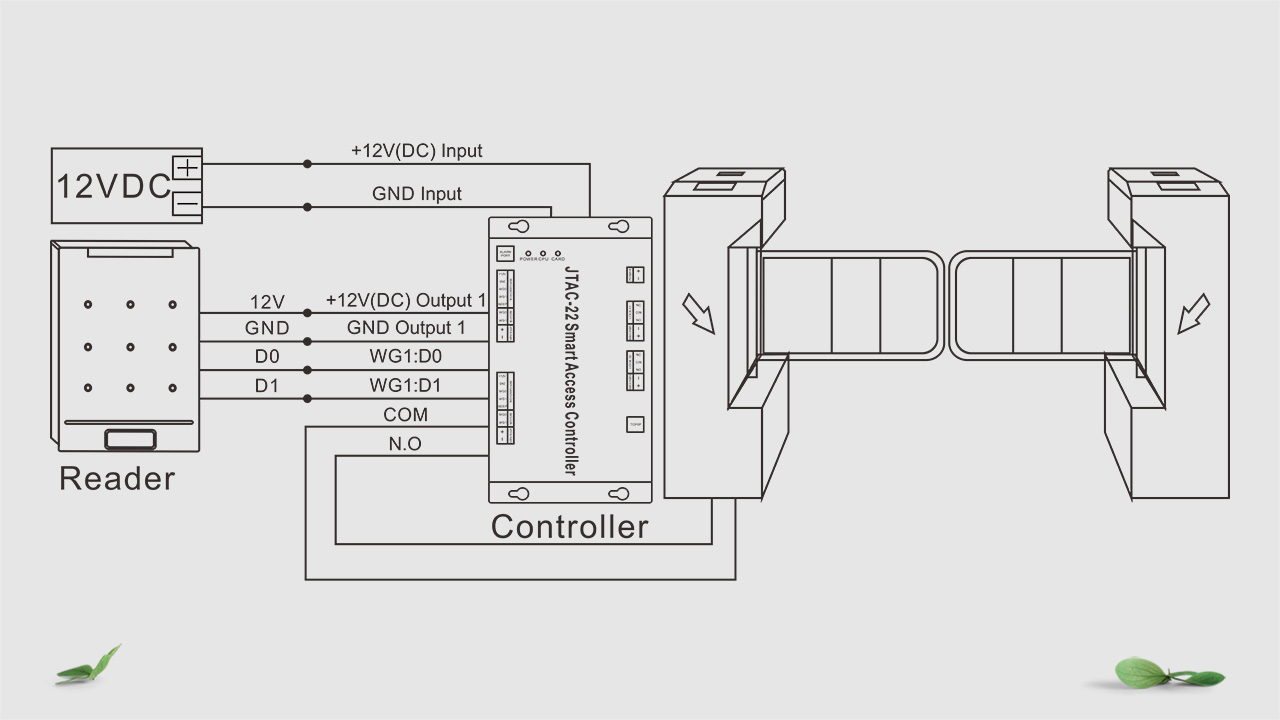

RFID Turnstile System Application
RFID Access Control System Application

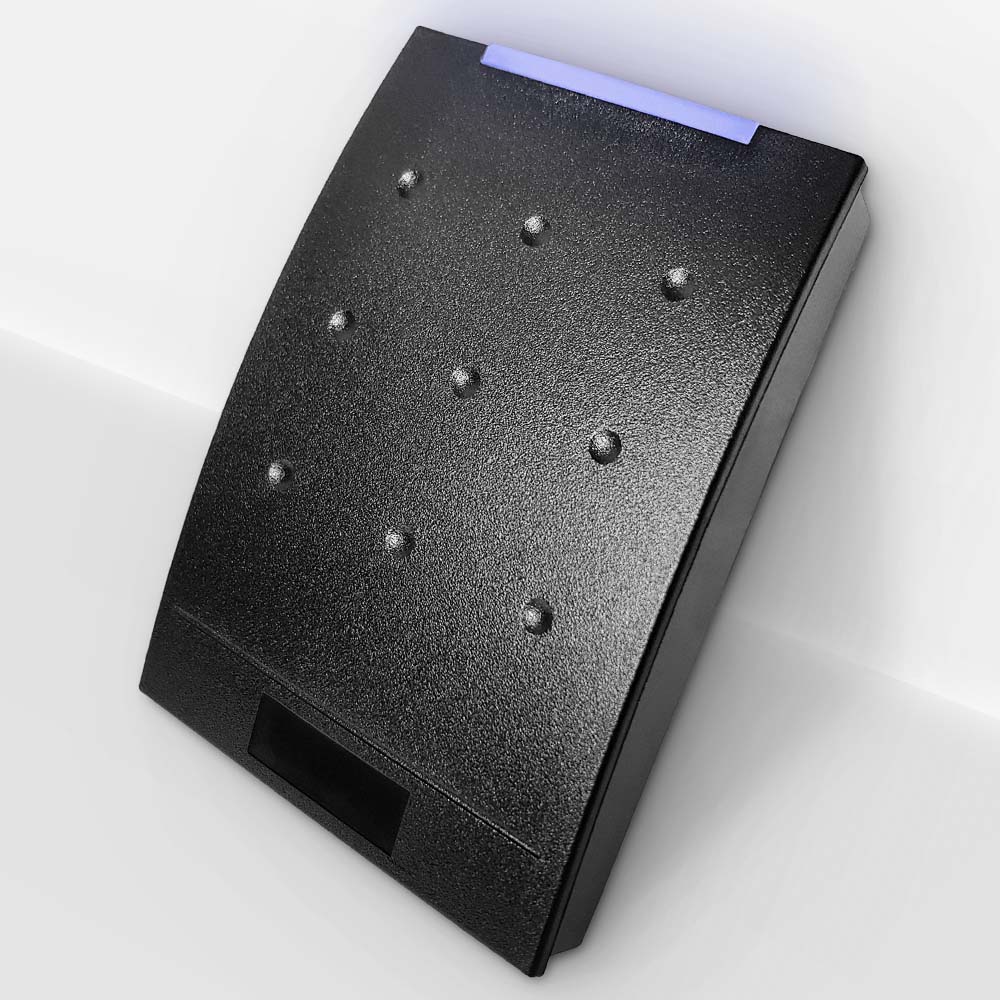

LED Indicator
| Indicator Light | Function |
| Blue LED light is normally on | Power supply is normal, the reader in the standby state |
| The red LED light is lit up | Read a card, the red light flashing |
