Technology Parameter
| Model | JTBR-110 |
| Power | 100w/120W |
| Material | Cold roll plate, Galvanized plate or stainless steel
varnish baking, 3 years without fading |
| Running Time | 1.5s, 3s, 6s |
| Operating Temperature | -45°C to 75°C |
| Voltage | 220V ± 10%, 110V ± 10% |
| Relative Humidity | <90% coagulation free |
| Motor speed | 30r/min |
| Boom length | Max 6 meters |
| Net weight | 50Kg |
| MCBF | ≥5, 000, 000 times |
| Housing Size | 320*280*935mm |
| Boom Type | Straight arm: Mar 1-6 meters optional,
size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories | infrared sensors, loop detectors, traffic light, UHF readers |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Apartment Block |
| Traffic light | 100mm traffic led light |
JUTAI Barrier Gate Advantages:
1. With high quality Gate Motor
JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection.
2. With high quality Control Board
JUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.
3. With high quality spring
In addition to controlling the main board and the motor, the most important part is the spring. The tension and the relaxation of the spring are used to achieve the stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.

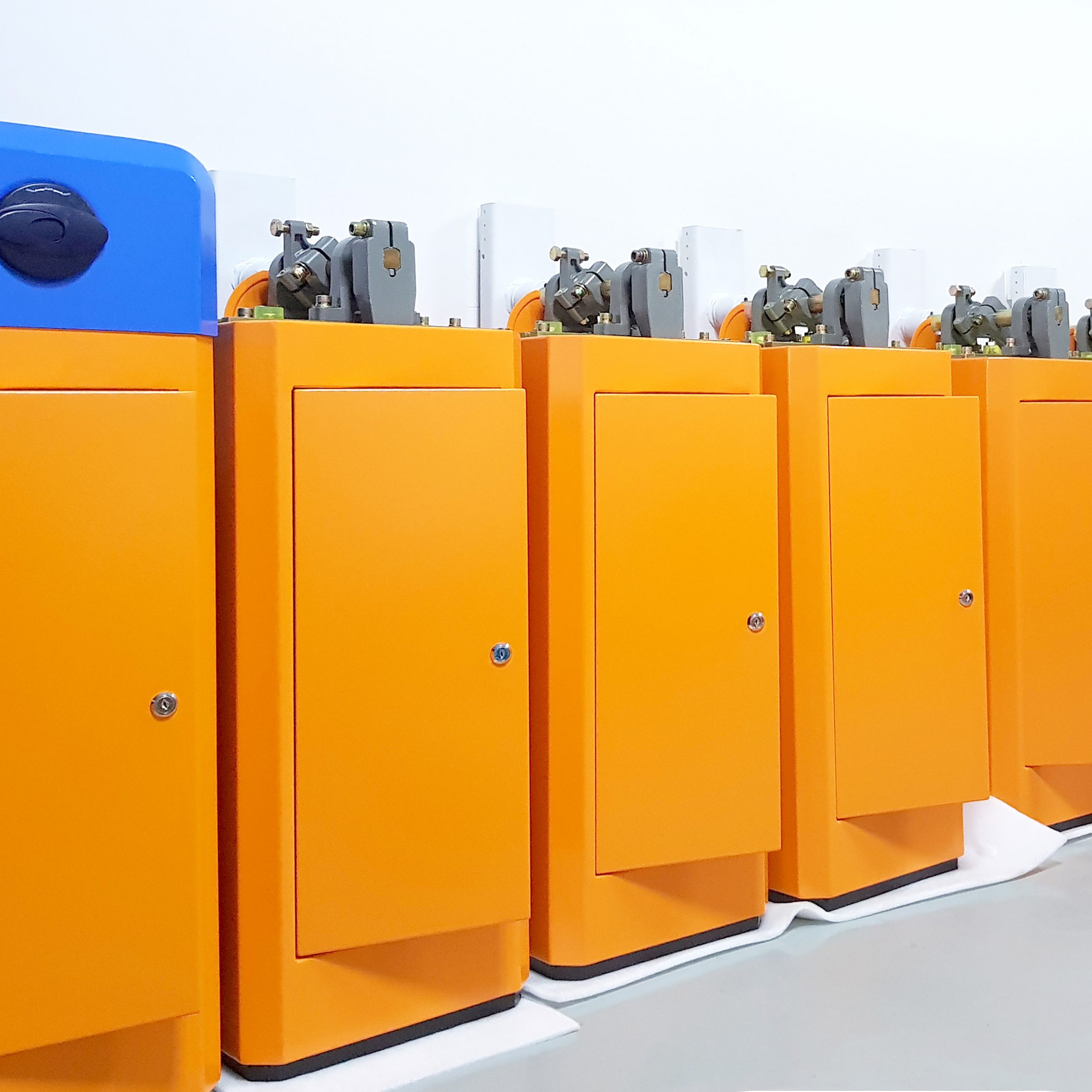

4. Process materials
The thickness of the sheet metal is 2.0mm. The cabinet is designed with a waterproof structure and the surface is treated with the phosphating process. Huacai spraying, high temperature baking and car top coating make the chassis in the outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have the problem of color fading. Compared with other company’s 1.5mm cabinets, it is more durable and not easy to fade the color.

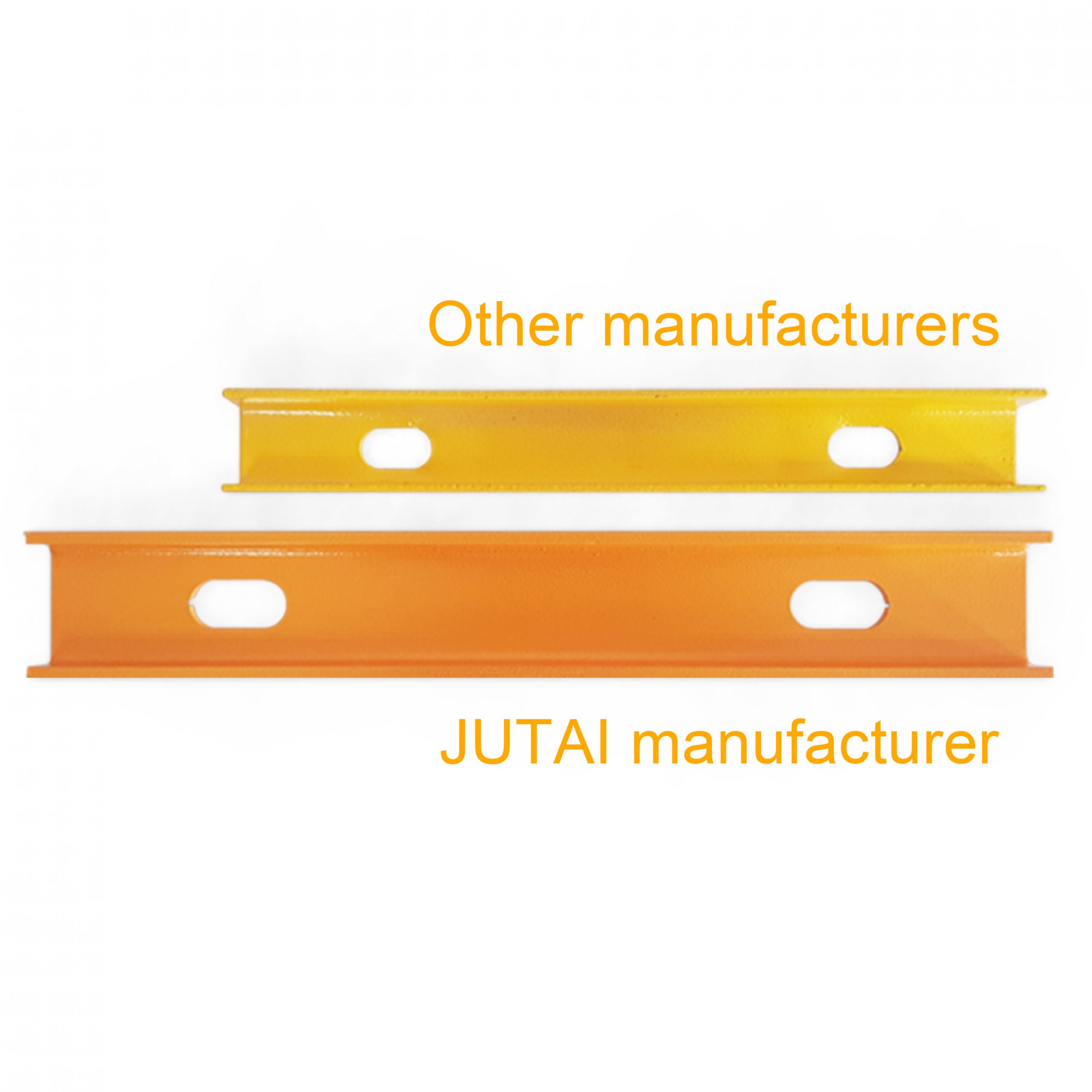

5. Bottom anti-dip strip
In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.
6. Multi-gate control can be built-in 485 protocol module
JUTAI is equipped with RS485 interface and English software, which can realize simultaneous control of 16 units boom gates by the software.
7. With Anti-collision boom
The existing road barrier gate are prone to bending when facing the accidental ram of the vehicle, and even the boom arm is broken, causing great damage to the vehicle and the gate. JUTAI automatic boom gates are equipped with anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.
8. Double protection against damage
JUTAI also provides infrared photocell beam sensors and vehicle loop detectors for anti-smashing vehicles.
9. Environmental adaptability
Special antifreeze oil, the motor can still work normally at -40 degrees. When the temperature reaches +75 degrees or more, JUTAI gate Motor has thermal protection function and can still work normally.
