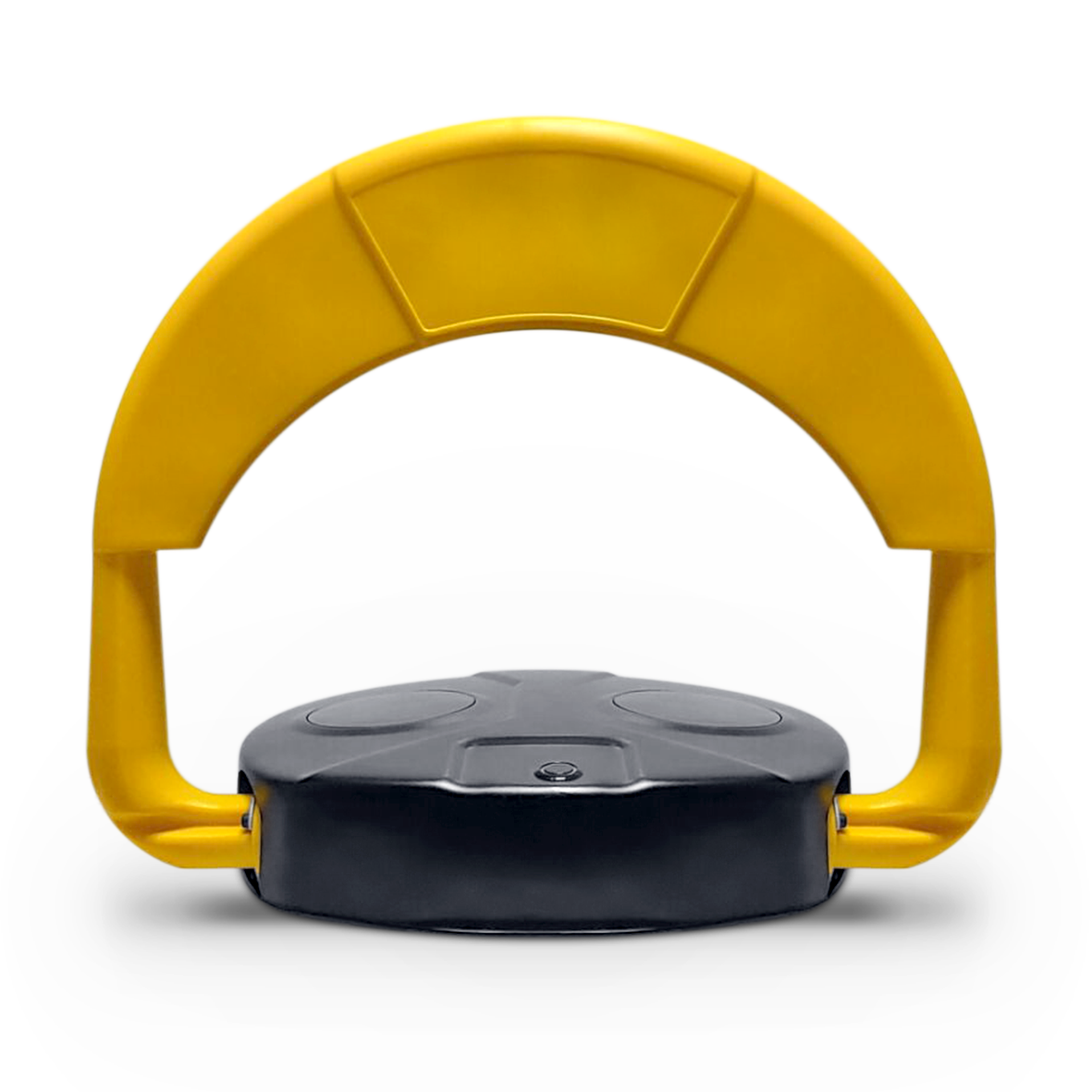

Anti-copy Solution Automatic Remote Control Smart Car Parking Lock

Functional features

1. Under pressure:The parking lock can bear 4000kg in the descending state, and it can’t be bad.
2. Working condition:When the parking lock is rise or down. Except for the master, other forces can not change it’s previous state.
3. Hands-on:Can operate up or down of parking lock arm and remove or replace the batteries inside.
4. Level of protection:IP-66, completely prevent dust, can be washed with water without damage.
5. Resistance:When the parking lock rising or falling and encountering external resistance, it will automatically protect the motor.
6. Low battery indicator:When the battery cannot maintain the normal operation of the parking lock,the lights on the parking lock will flash and buzzer will remind the user to replace the battery in the form of short sound wave alarm.
7. Alarm reset:When the parking lock is up, the are will be forced to descend when encountering external force. And when the external force is applied to change the angle is going,the parking lock will send alarm sound to warn and alarm and the arm will reset itself after 3-5seconds.
8. Fix parking lock:Add position limit device inside. The arm is rising with an external force less than 50 kg, the arm can only swing about 45 degrees and effectively prevent parking spaces from being forcibly occupied by other person.
9. Prevention of theft:The parking lock is installed inside the lid of the floor. Only the user has the key to open it and realized the anti-theft function.

Quick Details
Type: Carport
Brand Name: jutai
Warranty: 24 Months
Rising height: 400mm
Control distance: ≤50m
Feature: Waterproof
Remote Control Distance: 30M-50M
Frequency: 433mhz
Place of Origin: shenzhen
Model Number: PL-02G
Up and down running ≤4s
Landing height: 80mm
Operation Mode: Remote Control
Work Temperature: -10℃~+70℃
Technology: Anti-copy remote control




Technical parameter
Name Ultrasonic induction parking lock
Rated voltage DC6V
Quiescent current ≤0.8mA
Working current ≤0.8A
Up and down running time ≤4s
Rising height 400mm
Landing height 80mm
Control Range ≤50m
Suitable ambient temperature -10℃~+70℃
External dimensions 480*460*100mm
weight About 8KG
