AC-868 Access Control Machine

System Introduction

JUTAI AC~868 integrates the access control panel and card reader, including the password
keyboard and display screen, which can be used independently when connected to the power
supply. it is the core equipment of the access control system, with reliable data storage, and
data is not easy to lose after power failure. It integrates management and automatic control.
The data can also be used for attendance also, and it can be connected to our Software, Used
as access control system

Working Principle

JUTAI AC~868 is an independent access control system, which does not require computer software.
All functions such as card addition, card deletion, and blacklist card setting can be operated independently
on the machine through key commands. The embedded LCD display shows that each operation step is
clearly visible. Customers can freely DIY their own LOGO on the LCD display. When the reader reads the
card info, it converts into an electrical signal to controller, and the controller receives the info , judge
whether the card is valid or not. If valid, the relay signal will be output, and door open. If the card number
is invalid, the door l will not open, so as to realize the security control of access control.

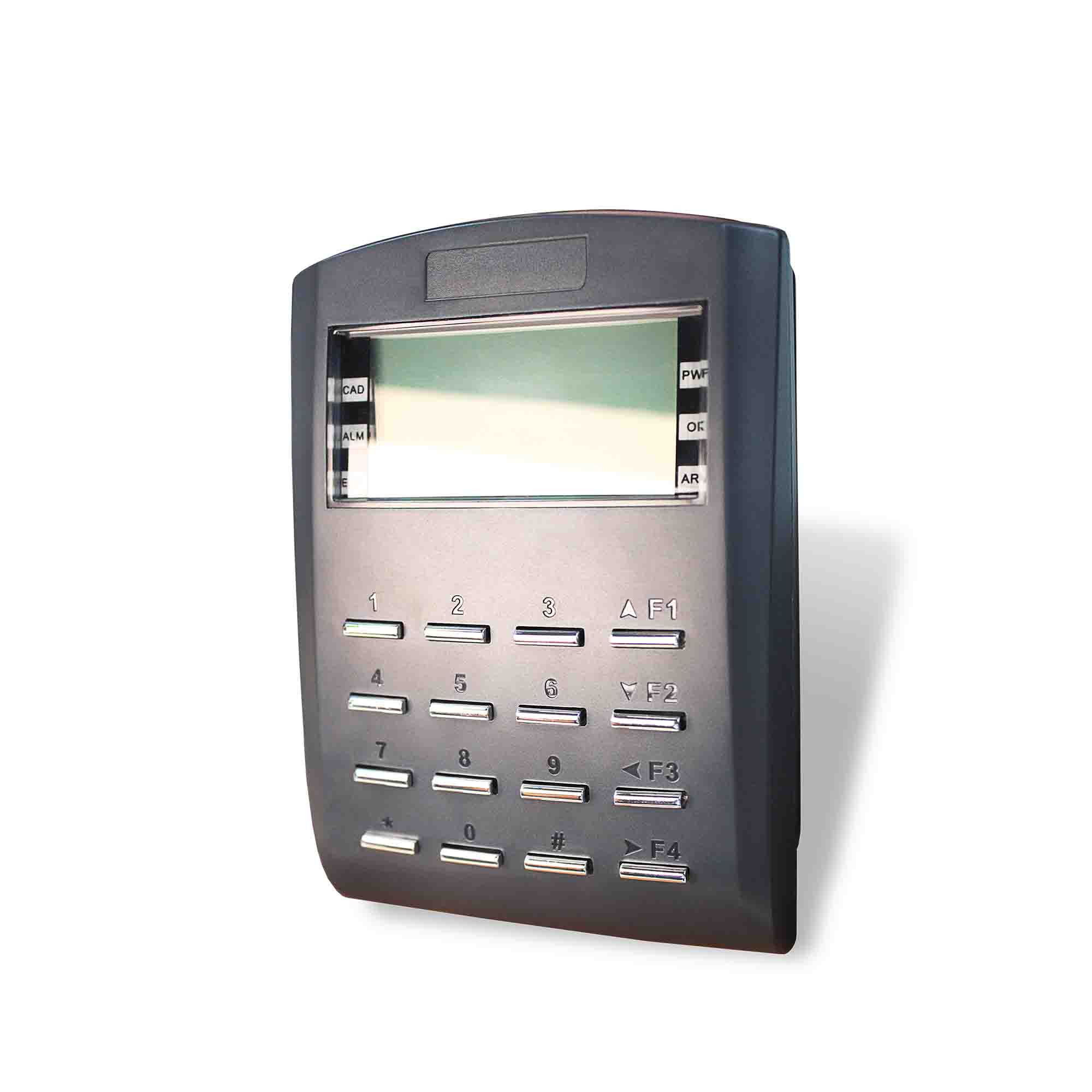

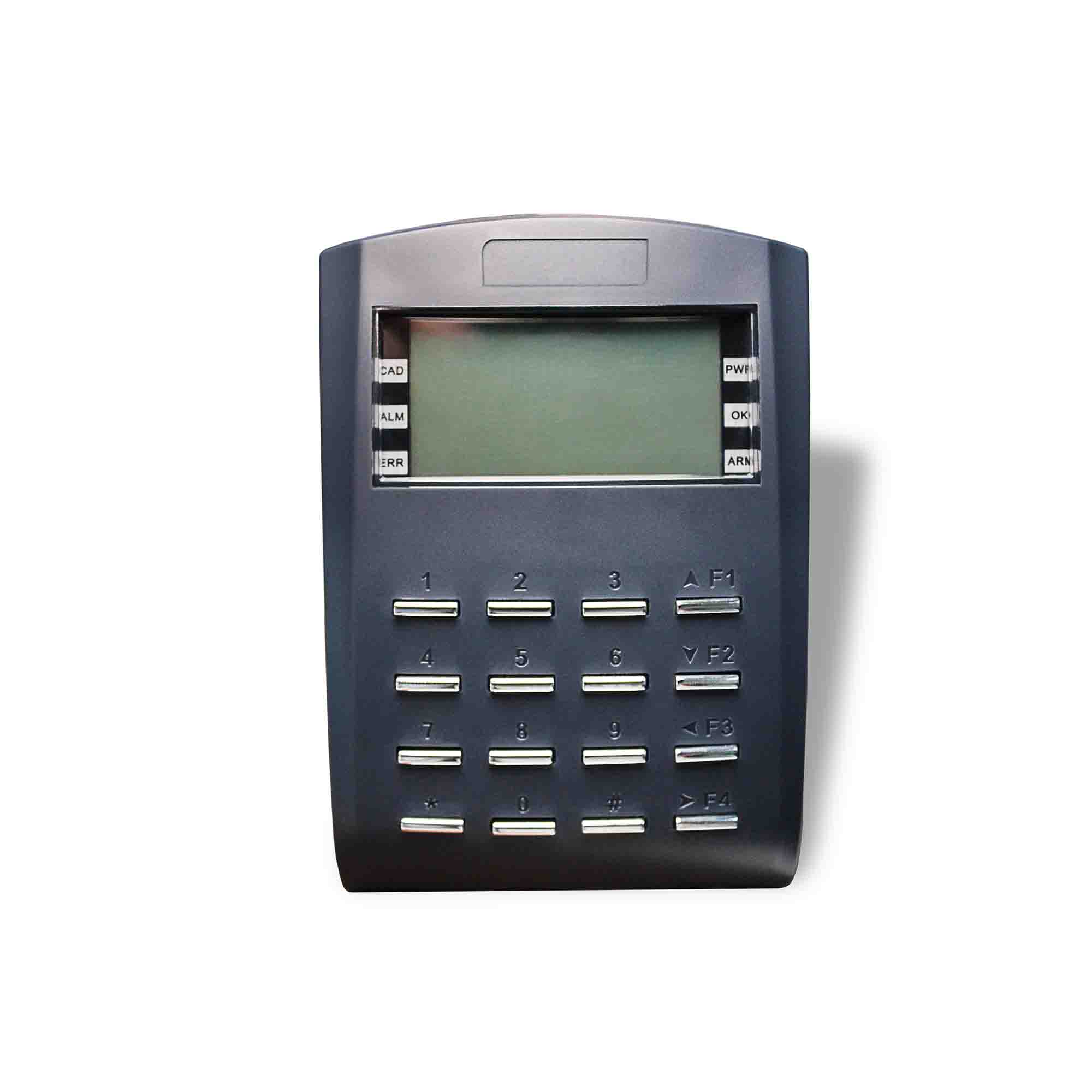

1.Product Introduction

AC-868 standalone reader, which can be used independently. It has a built-in LCD screen, which can display the card number, and can be customized by the enterprise LOGO, integrated password keyboard, support card swiping and key password to open the door, can encrypt 13.56MHz, support EM card and MIFARE card, easy to use, reliable data storage, integrated with management and automatic control, widely used in offices, supermarkets, shopping malls, scenic spots, automatic doors and other fields.

2. Product Parameters

Working power	DC 9-20V(with reverse polarity protection) 0.3A@12V
Operating temperature	-10℃~+65℃
Degree of protection	IP65
Number of cards saved	16000
Display method	Dot matrix LCD screen with backlight
Language type	Traditional chinese/english
Number of keys	16 keys (10 numeric keys, *#, 4 function keys)

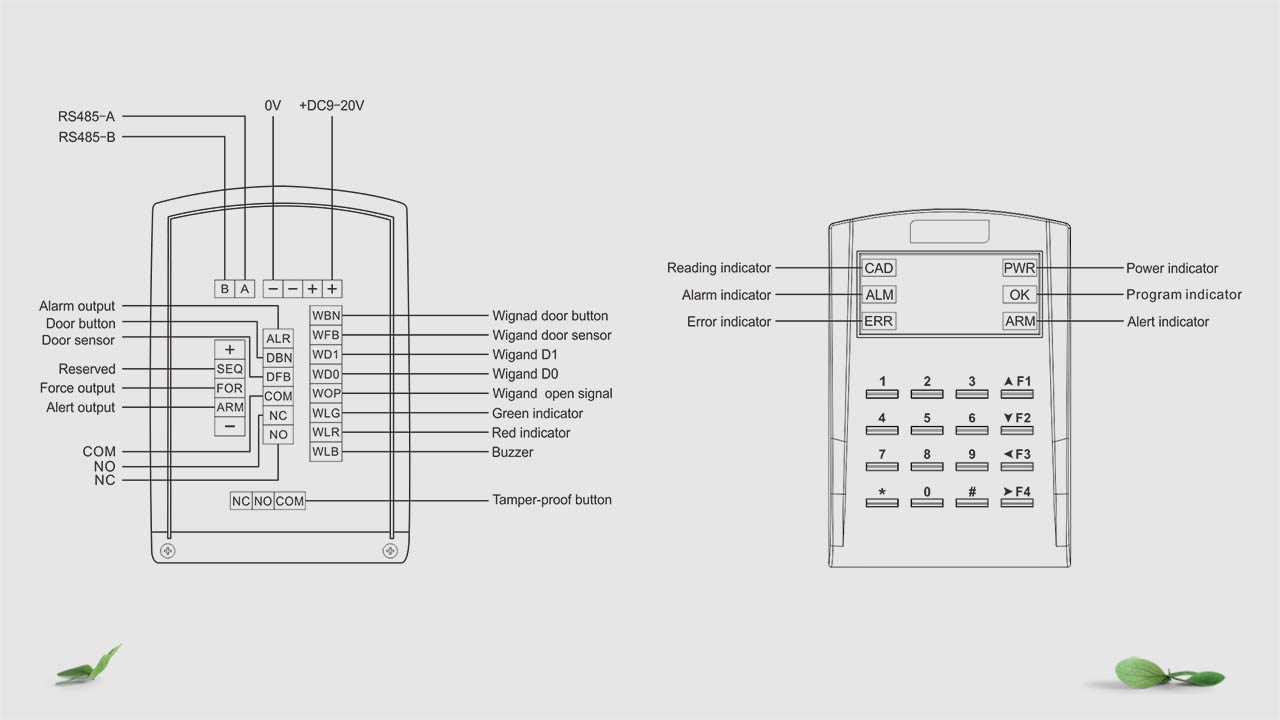

RS485 interface	1, available for device updates
Ethernet interface	Reserved (optional)
Wiegand input interface	1

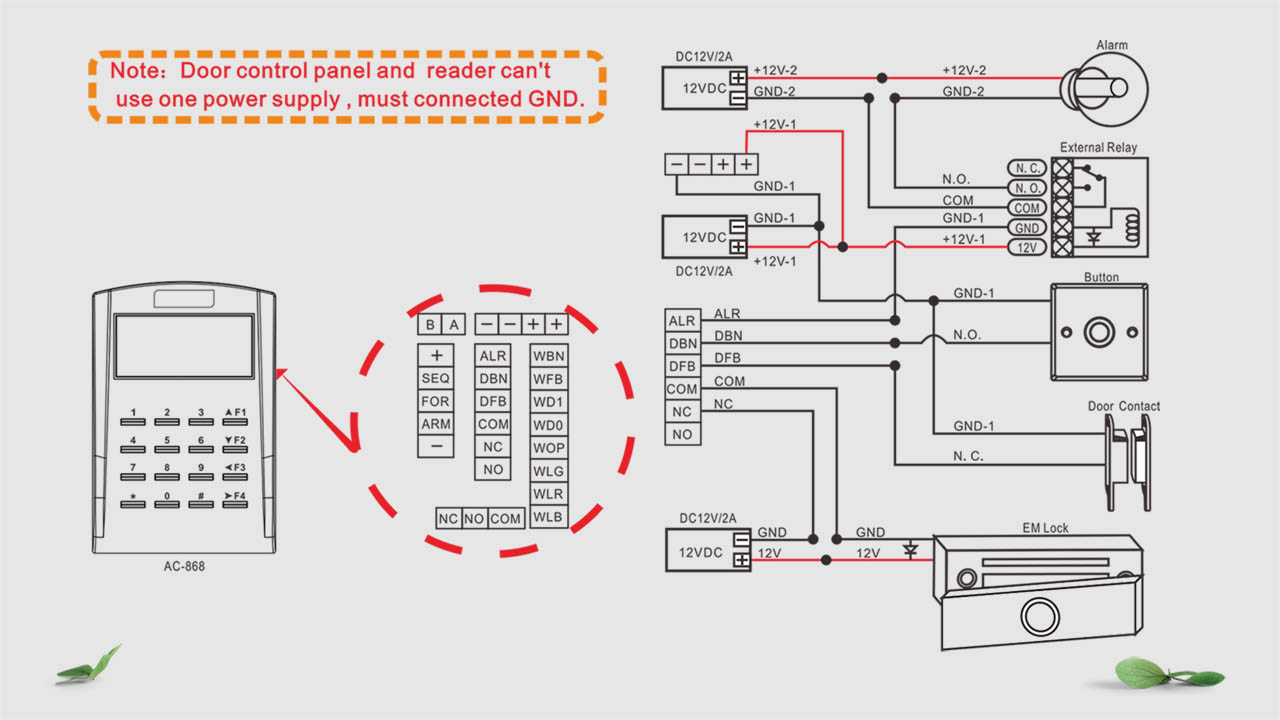

Door open output interface	1, including COM/NO/NC
Alarm output interface	1, NO/NC optional
Non-isolated input interface	4
OC output interface	6
LED status indication	Power indicator, alarm indicator, error indicator, warning indicator, card reading indicator, programming mode indicator

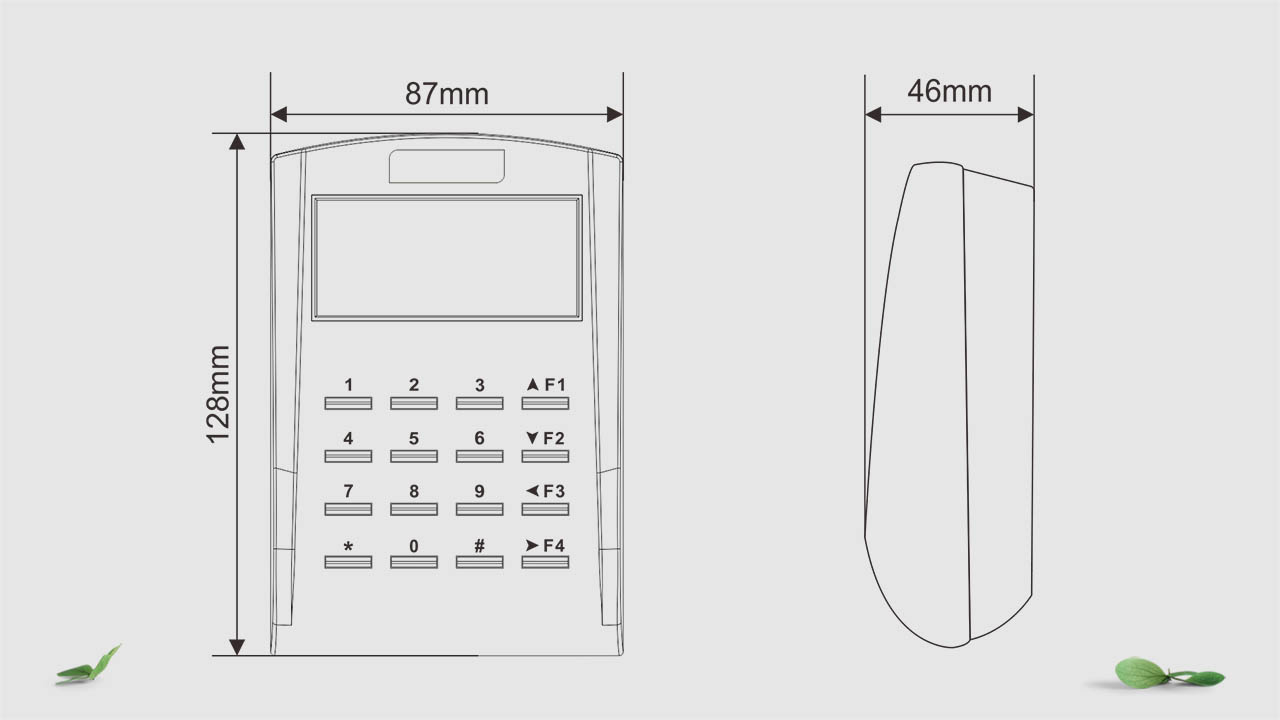

Size	128X87X46mm

3. Features

Features	Description
Large capacity	Can support 16000 card number storage
LCD liquid crystal display	Can easily display the card number, and corporate LOGO
Support serial number storage card	Improve the efficiency of card number entry
Various ways to open the door	Flexible door opening methods, support card swiping, password or card + password
Easy to use	Adding and deleting cards can be easily realized without a computer
Wide range of applications	Door entry control, gate access, barrier gate control, access management applications
Card reading type	EM card /Mifare card (can be setting)
Encryption frequency	13.56MHz
