Built In Web Server
Built-in web server where network configuration such as IP address, subnet mask, server IP can be easily done upon; No more factory programming needed as the firmware can be upgraded via the on-board web server.
High Performance
Based on the latest HCB (Hybrid Compact Board), JTAC-11 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. this control panel can fulfill most demanding requirement in physical access control environment.
Door Interlocking
In 1 doors interlocking within the control panel, no need external wiring. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.
Super Network Processor And Combined With Mass Storage Technology
Adopting super network processor and combined with mass storage technology, and which can achieve real network data exchange.
Technical Specification
| Operating Temperature | -20 °C ~ +70°C |
| Card Holder | 26,000 users |
| Event Transaction | 100,000 |
| Relay output | 2 groups 7A door lock relay output |
| Work voltage | DC9V to 14V |
| Work current | ＜350mA |
| Access Level | Unlimited Access Level |
| Time zone | 64 groups |
| Digital Output | Max 4Dry Contact Relay |
| Network Communication Port | RJ-45 Self-Negotiate 10/100mbps |
| Protection Supporting | Power Protection/ Surge Protection |
| On board LED Control | Power / Communication / LAN / Event / Error |
| Data base | ACCESS or SQL |
Feature Highlight
- Support Single Door
- Unlimited Access Level
- Support Car Park Mode
- Support Dynamic Reader Location
- Compatible with Various Reader Technologies
- Peer To Peer Global Anti-Passback
- Configurable Digital / Supervised Inputs (8)
- Event Based Triggering (EBT)
- Unlimited Access Level
- Onboard & Cross-Board Interlocking
- User Counting (Card Holder / Car Park)
- Advance Encryption Standard (AES)
- Reader Output Control
- Support 26,000 Users And 100,000 Events Memory

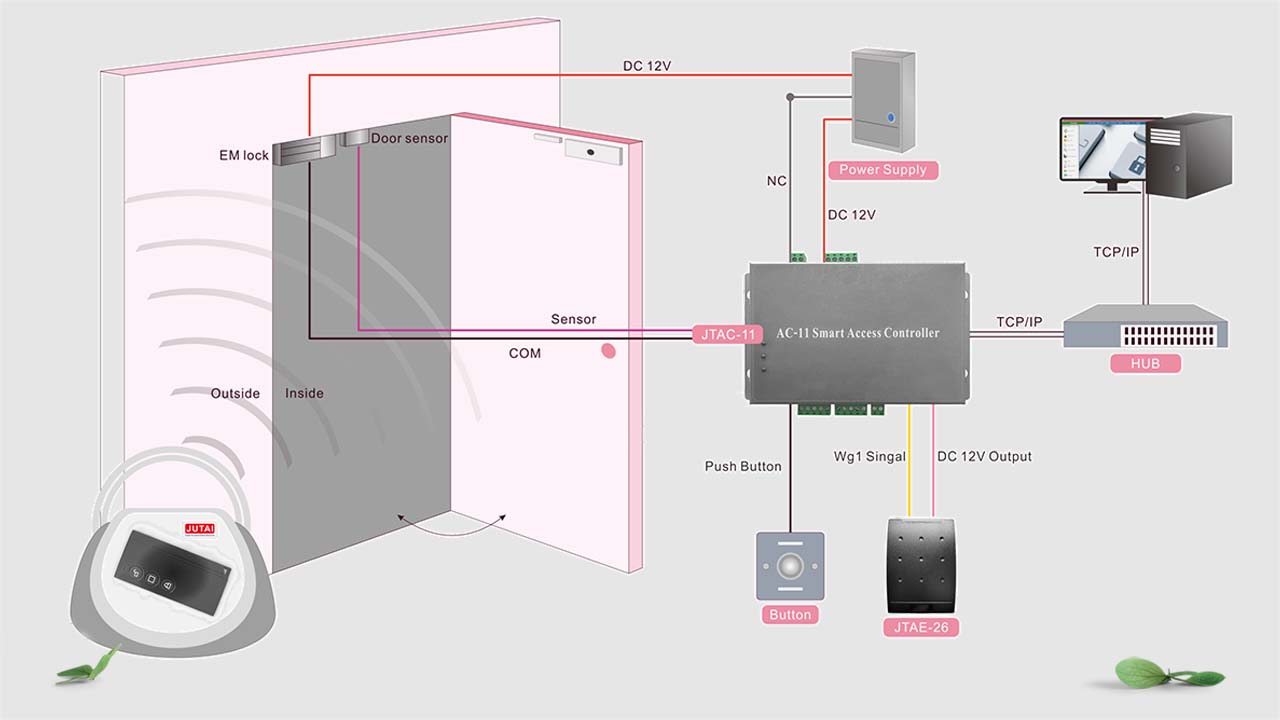

Basic System Diagram
