JUTAI道闸遥控系统采用创新技术设计并采用精密机械制造，以确保未来几年的质量和可靠性令人满意。 作为最佳的隔离门运营商供应商，我们努力为客户提供最佳的隔离门。 JUTAI道闸遥控器已在实验室进行了超过500万次打开/关闭的测试，并且性能没有任何下降。 无限位开关设计最大程度地减少了机械磨损并提高了防护层的使用寿命。 JTBR-110系列还提供了完整的手臂范围（折叠，围栏和外摆）。

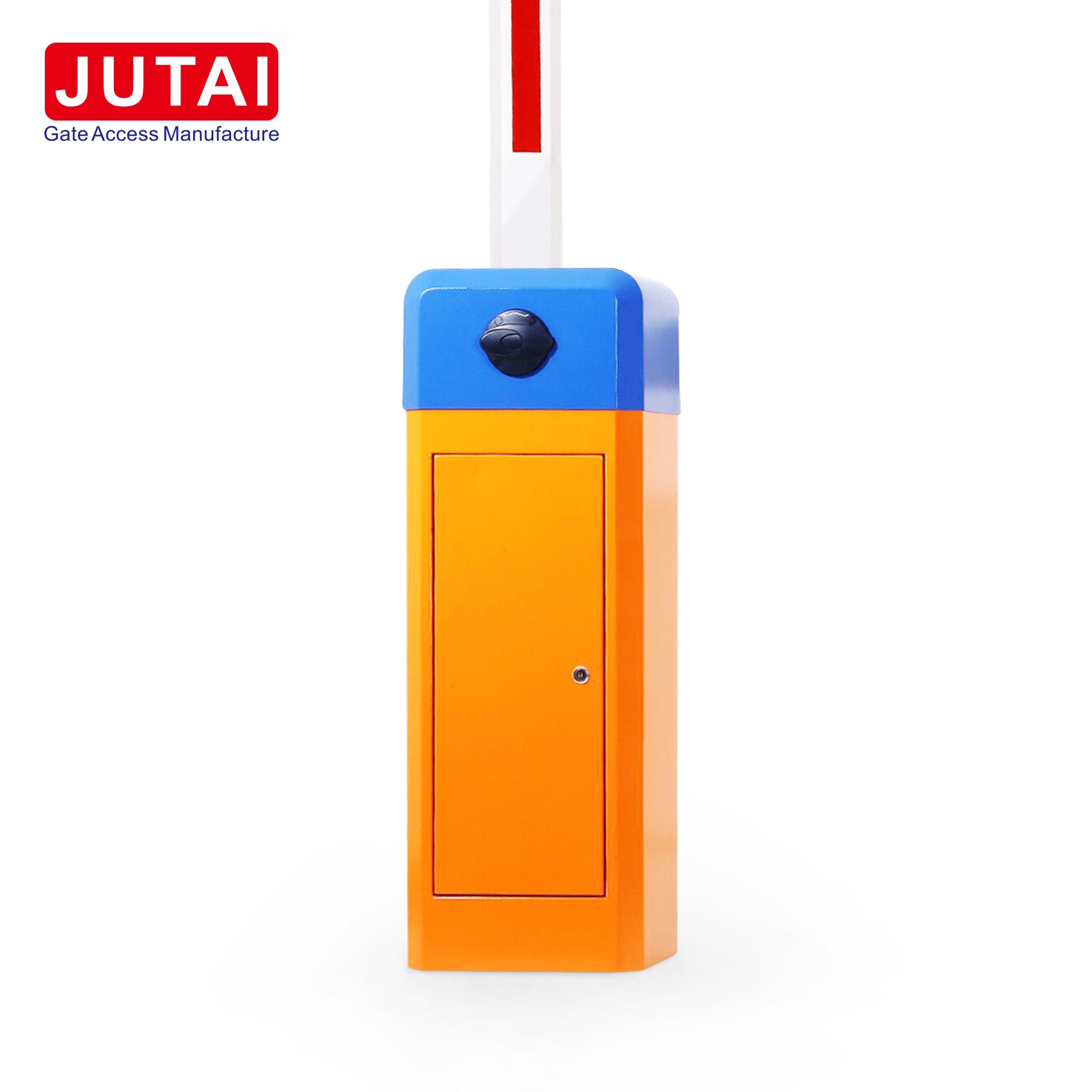

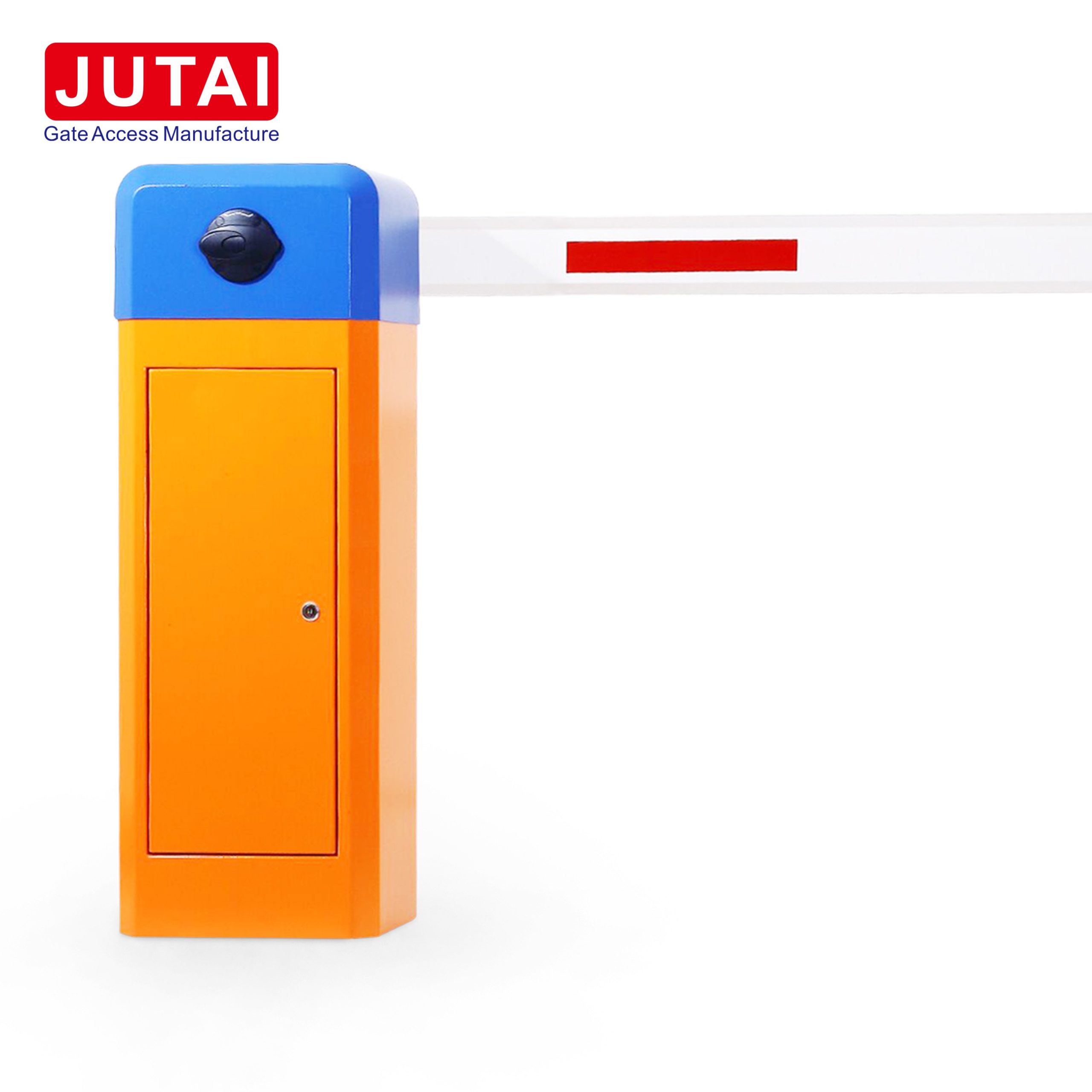

Parking Heavy Duty Automatic Boom Barrier Gate Operator Specification
|Material||Cold roll plate, Galvanized plate or stainless steel
varnish baking, 3 years without fading
|Running Time||1.5s, 3s, 6s|
|Operating Temperature||-45°C to 75°C|
|Voltage||220V ± 10%, 110V ± 10%|
|Relative Humidity||<90% coagulation free|
|Boom length||Max 6 meters|
|MCBF||≥5, 000, 000 times|
|Boom Type||Straight arm: Mar 1-6 meters optional,
size 45×100mm aluminum alloy.
Folding arm: 90°folding arm / 180°folding arm, aluminum alloy
Fence arm: Two or three fence arm,
Mar1- 6 meters, aluminum alloy
|Related accessories||infrared sensors, loop detectors, traffic light, UHF readers|
|Application||Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Apartment Block
|Traffic light||100mm traffic led light|
JUTAI Parking Heavy Duty Automatic Boom Barrier Gate Applications
JUTAI barrier gate manufacturer provides the most suitbale barrier gate the mose suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse, hotel, factories, condominium, car rental companies, etc. It can also be customized to be used together with any auto-pay ticketing parking or access control system.
Gate Motor: JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection.
Automatic Gate Control board: JUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.

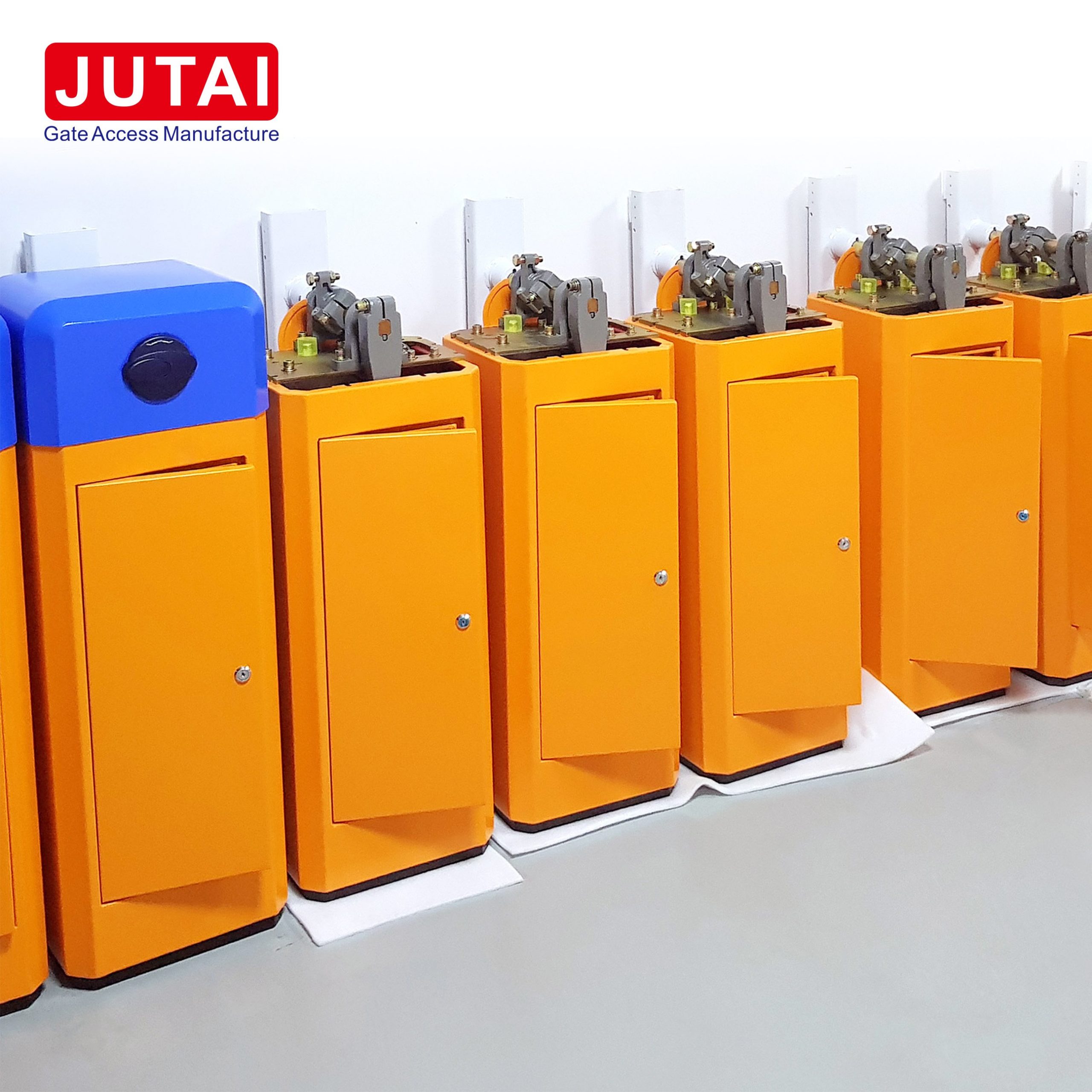

High-quality spring:The tension and the relaxation of the spring are used to achieve a stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.

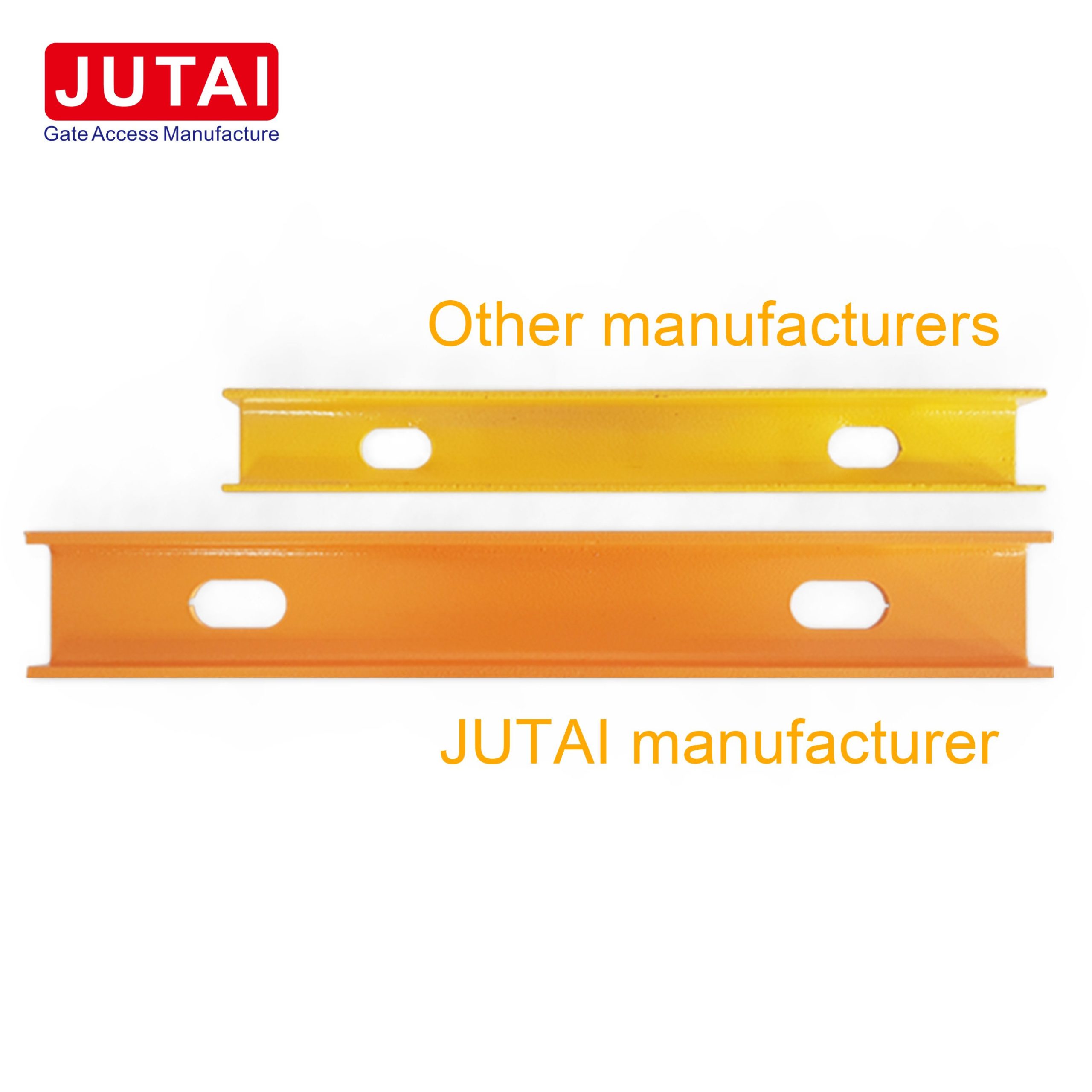

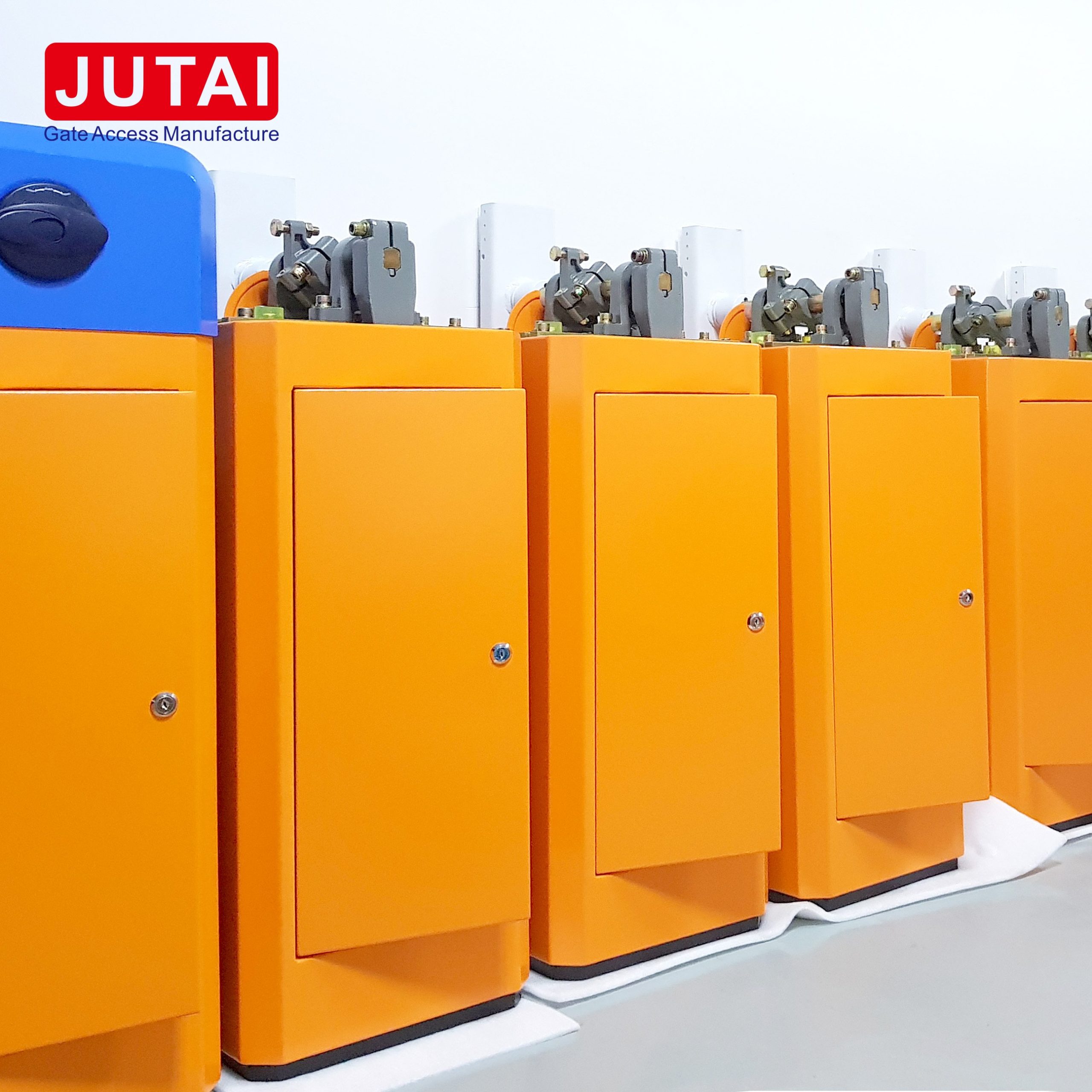

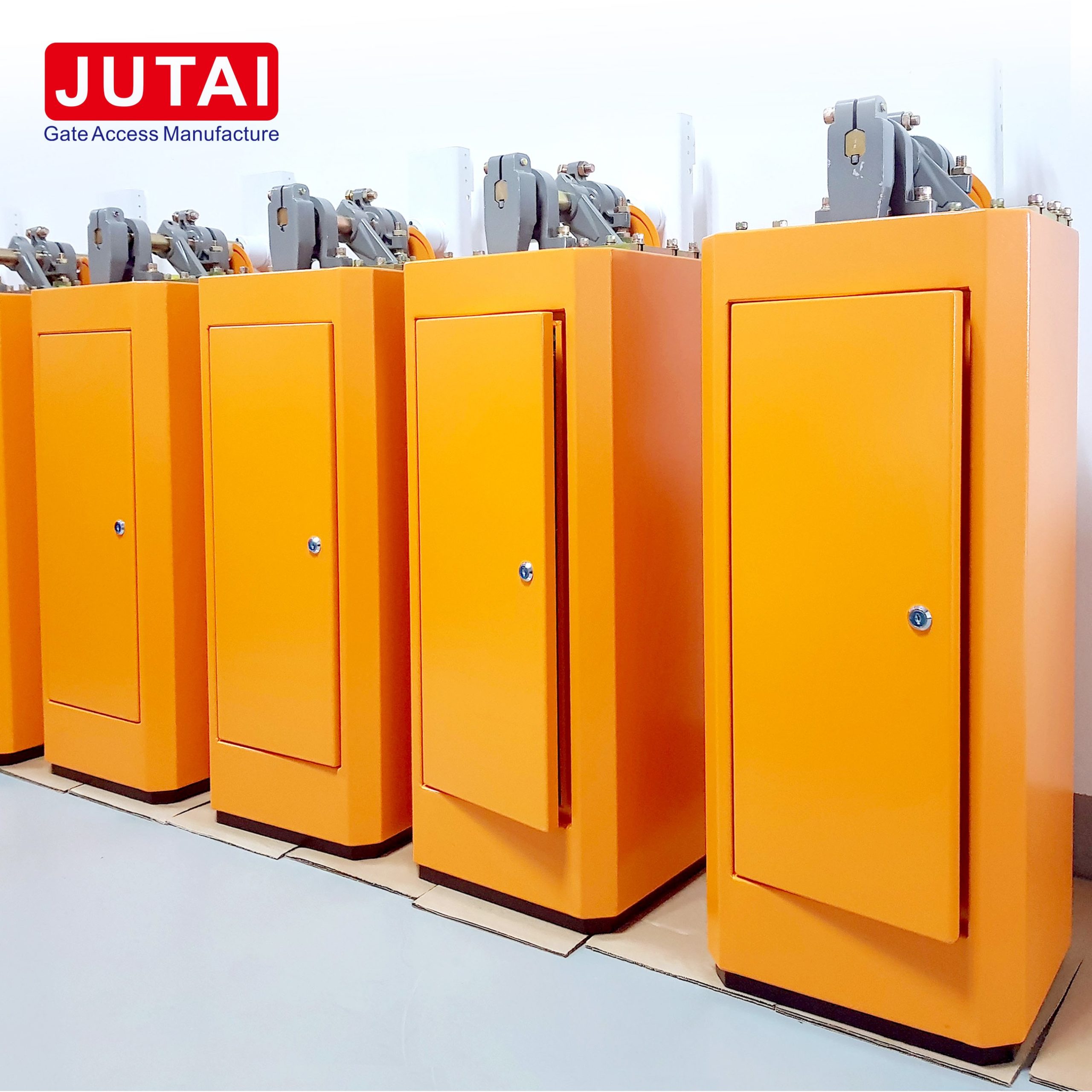

Process materials:The thickness of the sheet metal is 2.0mm. The cabinet is designed with a waterproof structure and the surface is treated with a phosphating process. Huacai spraying, high-temperature baking, and car top coating make the chassis in the outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have the problem of color fading. Compared with other company’s 1.5mm cabinets, it is more durable and not easy to fade color.
Bottom anti-dip strip:In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.
Anti-collision boom: JUTAI automatic boom gates are equipped with an anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.
Double protection against damage: JUTAI also provides infrared photocell beam sensors and vehicle loop detectors for anti-smashing vehicles
Parking Heavy Duty Automatic Boom Barrier Gate Operator/ Automatic Boom Barrier Gate Operator/Boom Barrier Gate Operator/Barrier Gate Operator/ JUTAI
